BOSCH PLE-1P120-IN Class-D Power Amplifier 120W
Bosch PLE-1P120-IN 120W Class-D Power Amplifier delivers clean and reliable amplification for public address systems. Supports 70V/100V constant-voltage and 4Ω low impedance speaker outputs. Features 100V slave input, strong protection circuitry, rack mount 1U 19” chassis, and excellent signal-to-noise ratio >70 dB—ideal for commercial paging and audio distribution.
Get Latest Price
Enquiry Now
Download Data Sheet
BOSCH PLE-1P120-IN Class-D Power Amplifier 120W
The Bosch Plena PLE-1P120-IN is a high-efficiency 120W Class-D power amplifier, engineered for professional public address and background music systems. Built inside a rugged 19” rack-mount 1U chassis, it is suitable for both rack installation and tabletop use, offering dependable audio performance and long-term reliability.
This amplifier supports multiple loudspeaker output configurations, including 70V / 100V constant voltage lines and 4Ω low-impedance loads, making it ideal for factories, warehouses, offices, schools, malls, and industrial PA installations.
BOSCH PLE-1P120-IN Class-D Power Amplifier 120W Key Features
-
120W RMS output power for wide-area speaker coverage
-
Multiple loudspeaker outputs: 70V / 100V and 4Ω
-
Excellent Signal-to-Noise Ratio: >70 dB for clean sound
-
100V direct input for slave operation / line extension
-

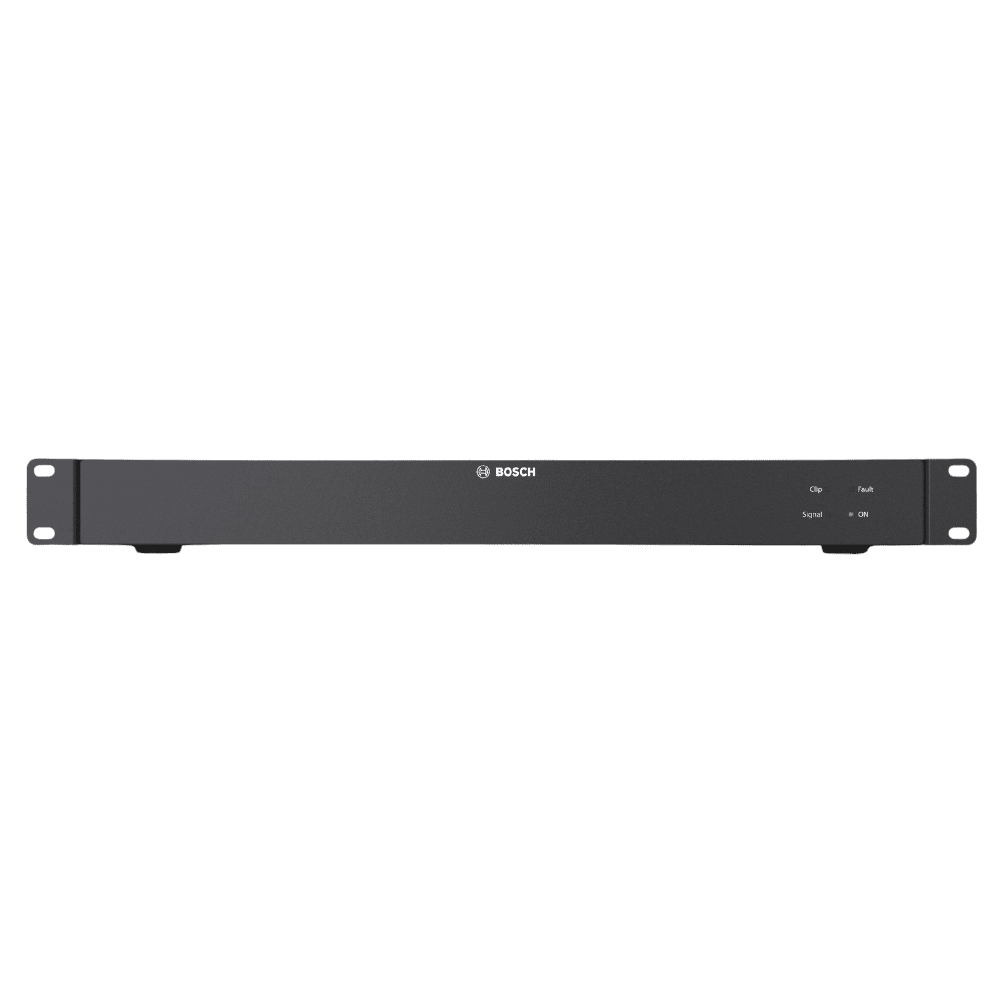

Front LEDs for Power On / Signal / Clip / Fault
-
Rear gain control prevents accidental adjustments
-
XLR loop-in / loop-through for easy commissioning and expansion
BOSCH PLE-1P120-IN Class-D Power Amplifier 120W Amplifier Protection & Safety
The PLE-1P120-IN includes strong protection against:
-
Overload
-
Short circuits
-
Over-temperature
If overheating occurs, amplifier output reduces by -3 dB (Clip LED indication). In extreme conditions, over-temperature protection mode activates (Fault LED indication). Once temperature returns to normal, output automatically restores to nominal levels.

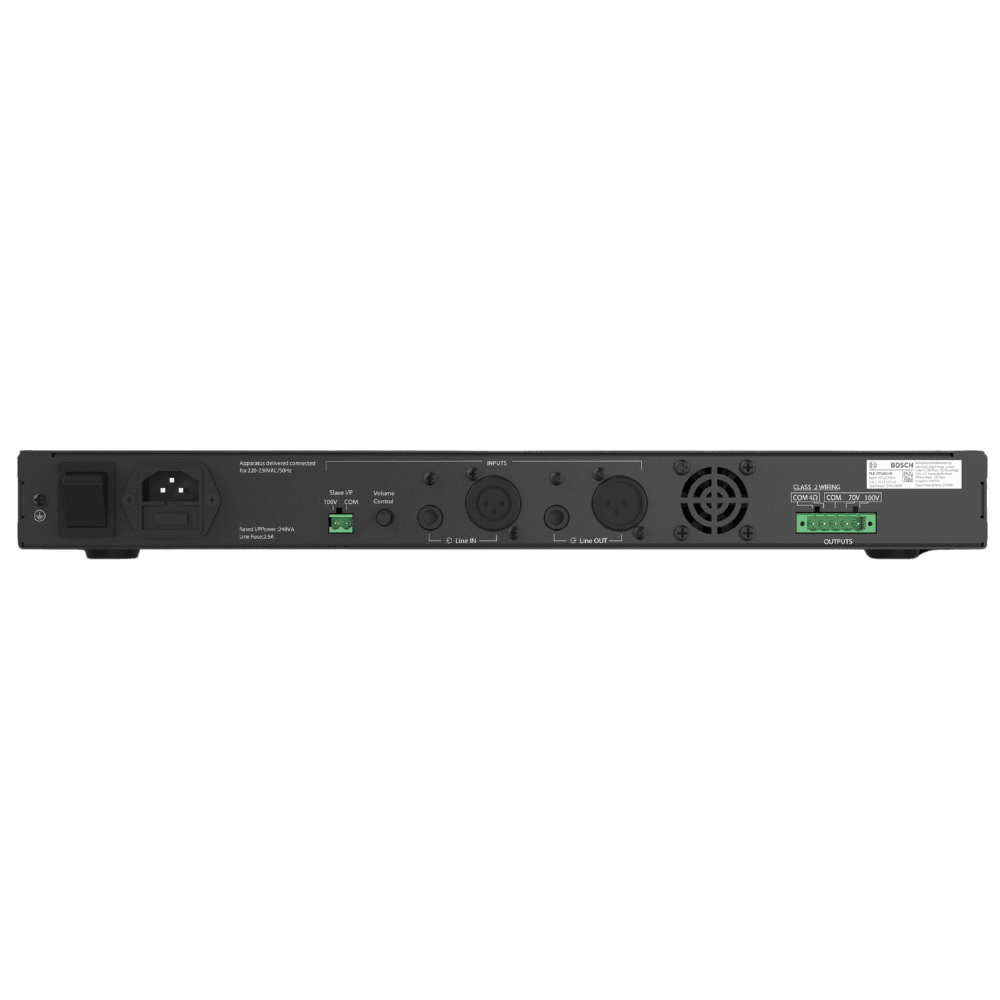

Inputs & Outputs
Inputs
-
100V line input for slave/remote power extension
-
1V line input with loop-through (XLR/TRS)
Outputs
-
70V / 100V outputs for transformer line matching
-
4Ω output for low impedance loudspeakers
BOSCH PLE-1P120-IN Class-D Power Amplifier 120W Ideal Applications
-
Industrial PA & Paging systems
-
Warehouse and factory announcements
-
Commercial buildings & office paging
-
Schools, hospitals, and campuses
-
Background music distribution
-
Large speaker zones using 100V line systems
| Brand |
|---|
Technical Specifications – Bosch PLE-1P120-IN
Electrical
-
Rated Output Power (RMS): 120 W
-
Mains Power Supply: 230 VAC
-
Inrush Current: 35 A
-
Max Power Consumption: 290 VA
Performance
-
Frequency Response (+1 / -3 dB): 70 Hz – 18,000 Hz
(@ -10 dB of rated output power) -
THD + Noise: < 1% @ rated output power
-
Signal-to-Noise Ratio: > 70 dB
-
Gain: 40 dB
Inputs
-
70V / 100V Slave Input: Phoenix connector (1×2)
-
Slave Input Sensitivity: 100 V
-
Slave Input Impedance: 40 kΩ
-
Line Inputs: 1/4″ TRS jack, 3-pin female XLR
-
Line Input Sensitivity: 1 V
-
Line Input Impedance: > 5 kΩ
-
Common-Mode Rejection Ratio (CMRR): 25 dB
-
Loop-through Output: 3-pin male XLR
-
Nominal Level: 1 V
Outputs
-
Speaker Outputs: 70 V / 100 V / 4 Ω
-
Speaker Connector Type: Phoenix connector (1×5)
-
Selectable Output Voltage: 70V or 100V (internal selection)
Mechanical
-
Dimensions (H × W × D): 44 × 430 × 334 mm
-
Rack Size: 1U (19″)
-
Weight: 5.9 kg
-
Color: RAL 9017 (Traffic Black)
-
Mounting Type: Rack-mounted / Tabletop
Environmental
-
Operating Temperature: -5°C to +45°C
-
Storage Temperature: -20°C to +70°C
-
Operating Humidity: < 95% (non-condensing)
Compliance / Standards
-
Safety: IEC 62368-1
-
Vibration & Shock: IEC 60068-2-6; IEC 60068-2-27
-
Transport: ISTA 2A 2008
-
EMC Emission: CISPR 32
-
EMC Immunity: CISPR 35; IEC 61000-4-3
