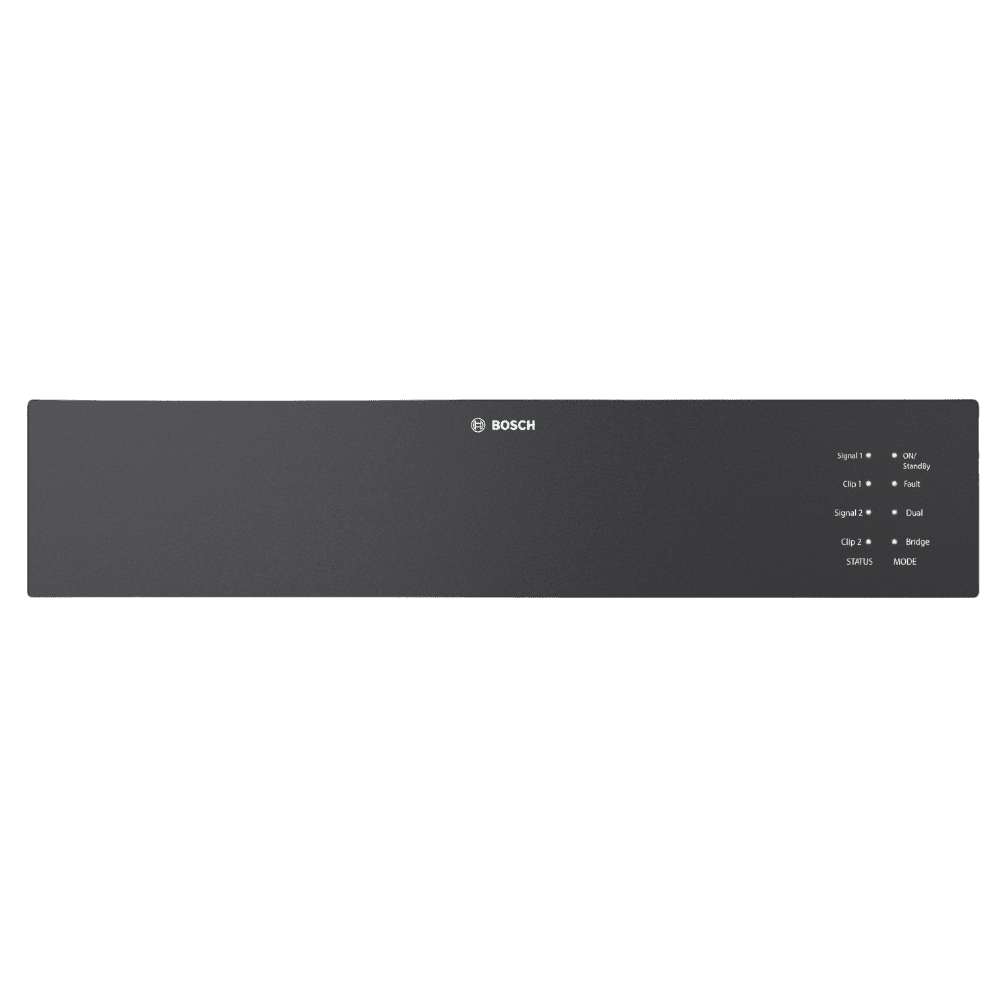

BOSCH PLE-2P480-IN Class-D Power Amplifier 2x480W

BOSCH PLE-2P480-IN Class-D Power Amplifier 2x480W (Dual) / 960W (Bridge)

The PLE-2P480-IN is a professional dual-channel Class-D power amplifier designed for high-performance public address and voice alarm systems. Built in a rugged 2U rack-mount housing, it supports both constant voltage (70V / 100V) loudspeaker systems and low impedance (4Ω / 8Ω) speaker installations.

BOSCH PLE-2P480-IN Class-D Power Amplifier 2x480W With excellent signal clarity (>80 dB SNR), priority switching inputs, and temperature-controlled forced ventilation, the PLE-2P480-IN ensures reliable operation even under continuous load. It can operate in Dual mode (2×480W RMS) or Bridge mode (960W RMS @ 8Ω), making it suitable for a wide range of audio zones and PA configurations.

BOSCH PLE-2P480-IN Class-D Power Amplifier 2x480W Key Features

• High Output Power – 480W × 2 RMS (Dual Mode) / 960W RMS (Bridge Mode)

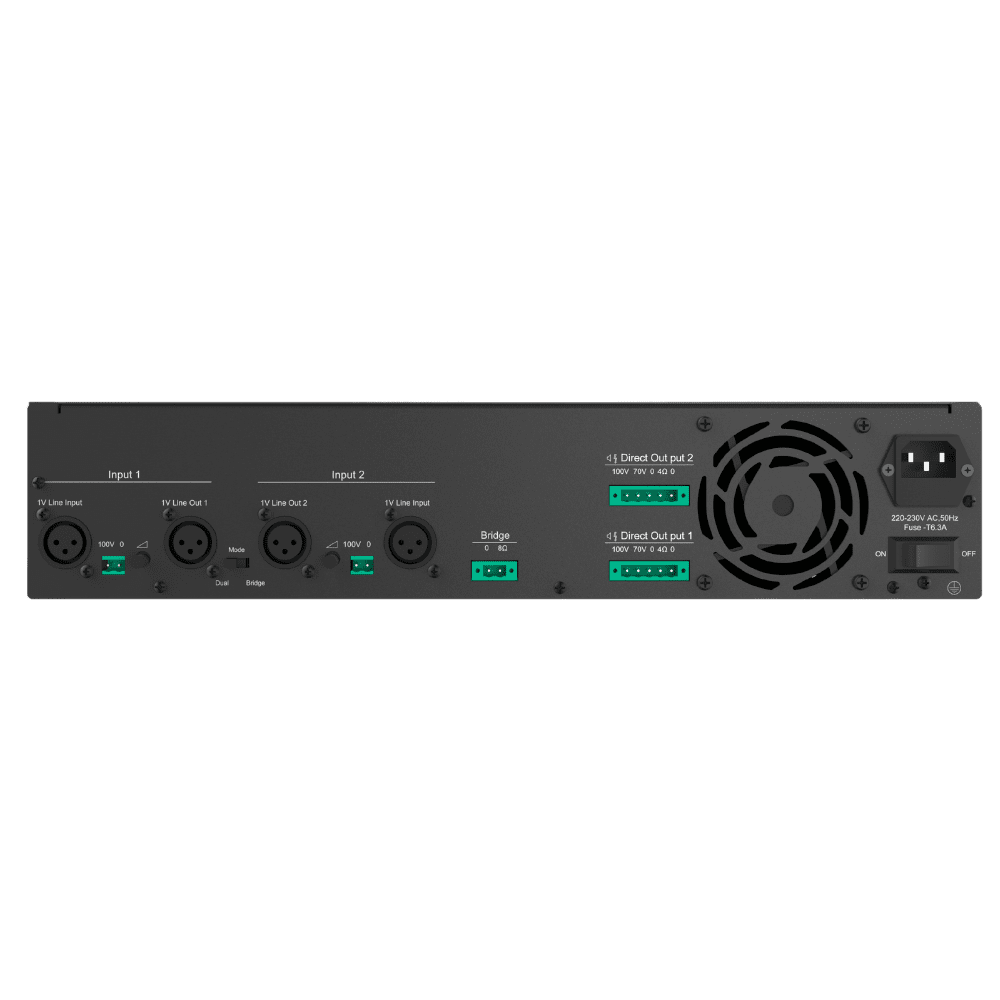

• Multiple Outputs – Supports 70V / 100V constant voltage and 8Ω / 4Ω low impedance speakers
• Dual Inputs with Priority Switching – Easy integration with paging and emergency sources
• 100V Slave Input – Adds power to remote speaker lines or zones
• Front LED Bar Level Display – Clear decibel level visibility during operation
• Stackable Cooling Design – Forced front-to-back airflow for rack mounting
• Reliability Protections – Overload, short circuit and thermal protection circuits

BOSCH PLE-2P480-IN Class-D Power Amplifier 2x480W Ideal Applications

• Factory & Warehouse PA Systems

• Commercial Paging & Announcement Systems

• School / College / Campus Audio Systems

• Auditorium & Multi-zone public address installations

• Voice alarm amplifier expansion (slave input usage)
