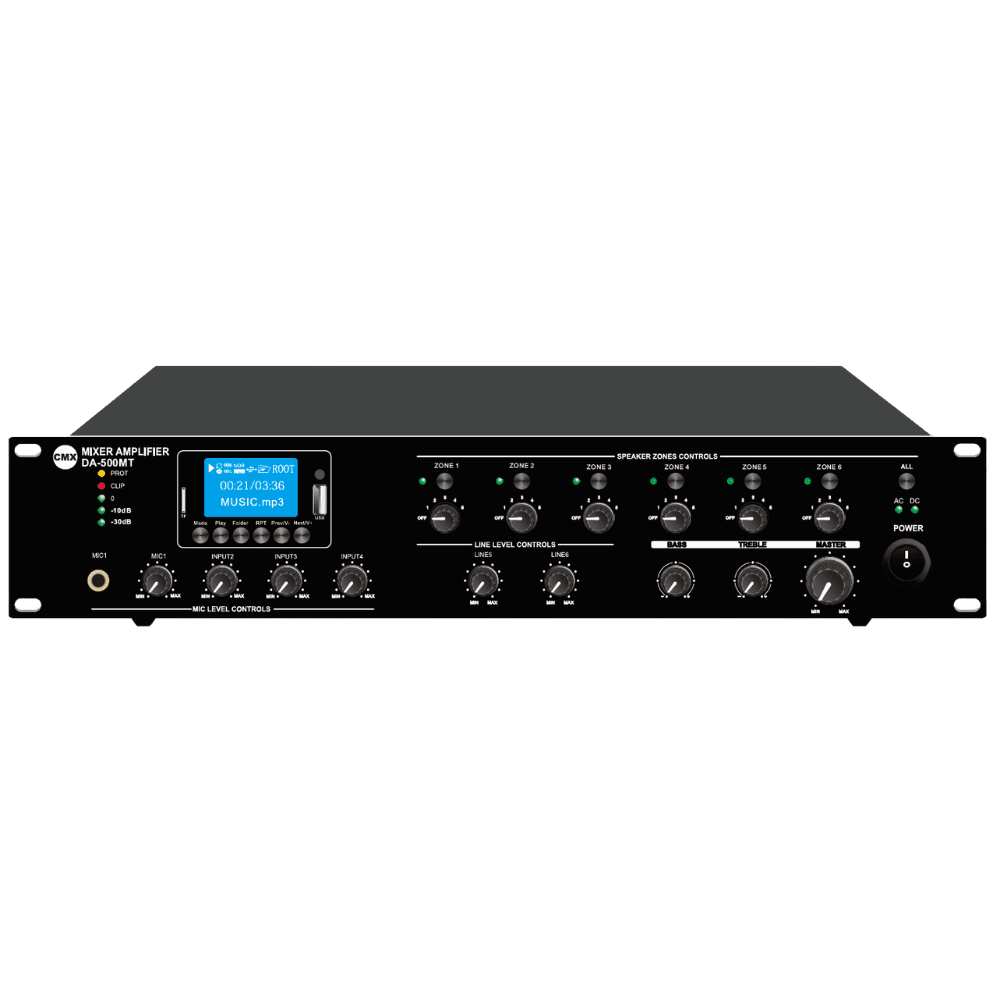

CMX DA-500MT- 500W-6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth
CMX DA-500MT 500W 6-Zone Mixer Amplifier with Bluetooth, USB & FM. Ideal for PA systems in schools, malls, banks & hotels. Reliable 100V line output.
Get Latest Price
Enquiry Now
The CMX DA-500MT- 500W-6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth is a professional public address (PA) solution designed for commercial and institutional sound systems. It combines a media player, pre-amplifier, and power amplifier into a single 19-inch rack-mount 2U unit, offering powerful, reliable, and easy-to-use audio distribution.
CMX DA-500MT- 500W-6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth along with multiple microphone and line inputs, this mixer amplifier is perfect for announcements and background music in schools, supermarkets, banks, hotels, temples, restaurants, and shopping malls.
The amplifier supports 6 independent speaker zones with individual volume control, making it ideal for multi-area installations. Advanced protection circuits safeguard the system from overload, short circuit, and overheating, ensuring long-term stable performance.
Key Features
• 500W High-Power Commercial Mixer Amplifier
• 6 Zone 100V Speaker Outputs with Independent Volume Control
• Built-in MP3 / USB / SD / FM / Bluetooth Player
• Mic1 Priority VOX Function (Except EMC Input)
• Mic/Line Inputs 2-4 with XLR & Phantom Power
• 2 Line Inputs + EMC Emergency Input
• RJ45 Port for Remote Paging Microphone (Up to 300m)
• Bass / Treble / Master Tone Controls
• LED Indicators for Power, Clip, Protection & Output Level
• Complete Protection: Overload, Short Circuit & High Temperature
• 19” Rack Mount 2U Design
• Dual Power Supply – 230V AC & 24V DC
Applications
✔ Schools & Colleges
✔ Supermarkets & Shopping Malls
✔ Banks & Offices
✔ Hotels & Restaurants
✔ Temples & Mosques
✔ Factories & Warehouses
✔ Hospitals & Public Buildings
CMX DA-500MT
| Brand |
|---|
| Parameter | Specification |
|---|---|
| Model | CMX DA-500MT |
| Rated Power Output | 500 Watts |
| Amplifier Type | Commercial PA Mixer Amplifier |
| Zones | 6 Independent Speaker Zones |
| Zone Control | Individual Volume Control per Zone |
| Speaker Outputs | 6 Zone 100V Line Output |
| Additional Speaker Output | 100V / 70V / 4–16 Ohm |
| Frequency Response | 80Hz – 16kHz (Typical PA Range) |
| Signal to Noise Ratio | ≥ 70 dB |
| Total Harmonic Distortion | ≤ 1% at Rated Power |
| Media Player | Built-in MP3 / USB / SD / FM Tuner / Bluetooth |
| Mic Inputs | Mic1 (6.3mm Jack) with VOX Priority |
| Mic/Line Inputs | Mic/Line 2-4 Balanced XLR with Phantom Power |
| Line Inputs | 2 RCA Line Inputs |
| Emergency Input | EMC Input (RCA) with Priority |
| Remote Paging Mic Port | RJ45 for DA-500RM Paging Mic (Up to 300m) |
| Tone Controls | Bass / Treble / Master Volume |
| Indicators | AC Power, DC Power, Protection, Clip, Output Level, Zone Status |
| Protection | Overload, Short Circuit, Clip & Over Temperature |
| Mounting Type | 19” Rack Mount |
| Height | 2U |
| Power Supply | 230V AC / 24V DC Backup |
| Cooling System | Forced Air Cooling Fan |
| Operating Temperature | 0°C – 40°C |
| Application | Schools, Hotels, Banks, Malls, Offices, Temples, Factories |
