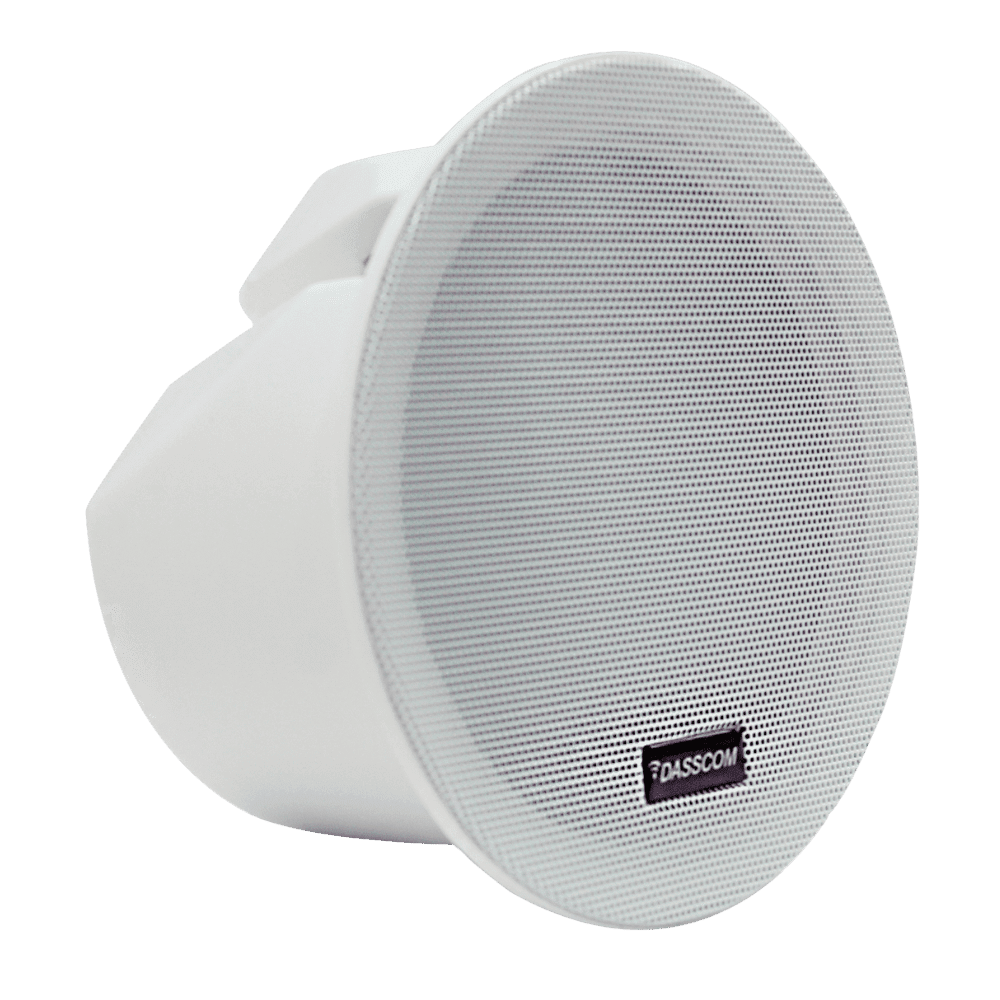

Dasscom DS-10C – 10W SIP Network Ceiling Speaker
The Dasscom DS-10C – 10W SIP Network Ceiling Speaker is a high-performance SIP-enabled ceiling speaker designed for modern industrial, commercial, and smart-city communication systems. Built for clarity, durability, and seamless integration, it ensures reliable voice paging, public announcements, emergency alerts, and background music in mission-critical environments.
With support for open SIP communication standards, the DS-10C integrates effortlessly with the Dasscom X10 SIP Paging Gateway, enabling users to develop customized intercom and PA systems for a wide range of applications—including public safety, industrial operations, transportation hubs, and smart-building infrastructures.
🔹Dasscom DS-10C – 10W SIP Network Ceiling Speaker Clear & Intelligible Voice Communication
Engineered for high speech clarity, the DS-10C delivers:
-
Crisp voice paging
-
Reliable public announcements
-
High-efficiency intercom communication
-
Consistent coverage across indoor environments
Ideal for safety alerts and operational messaging.
🔹Dasscom DS-10C – 10W SIP Network Ceiling Speaker SIP-Based for Smart & Scalable Deployment
The DS-10C supports:
-
Standard SIP protocol
-
Easy integration with Dasscom IP Audio Center or X10 SIP Paging Gateway
-
Compatibility with third-party SIP servers
This enables flexible, scalable communication networks for large facilities and city-wide systems.
🔹Dasscom DS-10C – 10W SIP Network Ceiling Speaker Built for Modern Smart-City Infrastructure
Designed for mission-critical environments, the DS-10C enhances:
-
Emergency response communication
-
Operational efficiency
-
Public information delivery
-
Safety awareness systems
A reliable tool for connected, secure, and automated environments.
🔹 Compact, Durable & High-Performance Design
The DS-10C features:
-
Compact ceiling-mount architecture
-
Industrial-grade components
-
Efficient 10W audio output
-
Stable operation for long-term use
Its unobtrusive design fits seamlessly into offices, corridors, stations, and control rooms.
🔹 Seamless Background Music & Paging
Supports:
-
Background music playback
-
Paging via SIP call
-
Intercom functionality
-
Connection with Dasscom X10 gateway for extended features
Perfect for malls, buildings, campuses, factories, and public spaces.
Key Features
-
10W SIP-enabled ceiling speaker
-
Clear and intelligible voice reproduction
-
Ideal for PA, intercom & background music
-
Compatible with Dasscom X10 SIP Paging Gateway
-
Supports open SIP protocol
-
Compact and durable design
-
Suitable for industrial & smart city deployments
-
Enhances public safety and communication efficiency
Ideal Applications
-
Smart city communication systems
-
Industrial plants & warehouses
-
Office buildings & meeting rooms
-
Schools, colleges & auditoriums
-
Hospitals & public health centers
-
Airports, metro stations & transport hubs
-
Retail spaces & commercial complexes
-
Security & emergency alert systems
DS-10C
| Brand |
|---|
| Speaker Size | 6 Inch |
| Average Sensitivity | 91dB/1m/1W |
| Frequency Response | 70Hz-20KHz |
| THD | <0.1% |
| Max SPL at 1m (Passive) | 101dB |
| Amplifier | Single-Chanel Class D Topology |
| Rated Power | 80* 10W |
| Coverage Pattern | 90°H 50°V 30m² |
| Audio | |
| Network Audio Types | G.722, G.711 A-law, G.711 U-law, Opus |
| Network | |
| Ethernet | IEEE 802.3 10/100Base-T |
| PoE | IEEE 802.3 AT Compliant |
| Supported Protocols | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP
, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, |
| Ip Addressing | DHCP / Static |
| Mechanical Properties | |
| Memory | 128MB RAM, 256MB Flash |
| AC Power Input | PoE+ and External 24VDC |
| Casing Material | Cold rolled steel finished in textured white epoxy |
| Mounting Method | Wall mounted |
| Color | White |
| Weight | 2 Kgs (Approx) |
| Dimensions – Surface-mounted | 280*280*65mm |
| Dimensions – Flush-mounted | 300*300*65mm |
| SYS Light Status | On/Off/Flash |
| PWR Light Status | On/Off/Flash |
| RST Key | On/Off/Flash |
| Environmental | Press and hold for 3 seconds to announce IP address;
Press and hold for 10 seconds to reset device to factory defaults. |
| Installation Environment | Indoor |
| Operating Temperature | -20°C -50°C (-4°F – 122°F) |
| Storage Temperature | -40°C – 70°C (-40°F – 158°F) |
| Humidity | 10%-95% RH Non-condensing |
| Warranty | 2 Years Limited |
