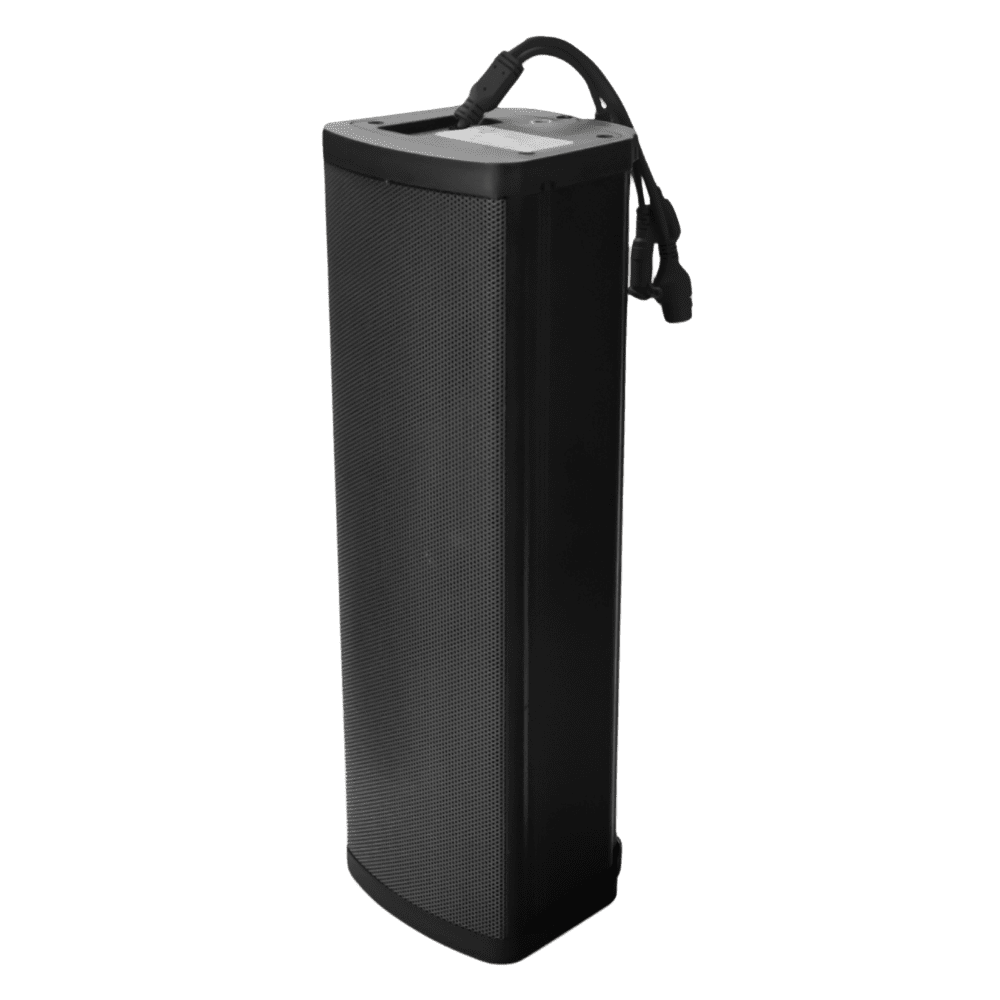

Dasscom DS-60CL Network Column Speaker

The DASSCOM DS-60CL Network Column Speaker is a premium IP-based column speaker engineered for modern public address, paging, and security communication systems. With its built-in 60W high-efficiency amplifier, wide 100Hz–18kHz frequency response, and an impressive 106 dB max SPL, this speaker delivers strong, clear, and highly intelligible audio even in large or noisy environments.

Dasscom DS-60CL Network Column Speaker Designed for reliability and long-term outdoor performance, the DS-60CL features an IP65 weatherproof enclosure, ensuring full protection against dust, rain, and harsh climates. Combined with excellent thermal durability, it is ideal for outdoor campuses, industrial sites, commercial spaces, transport terminals, and public safety installations.

Dasscom DS-60CL Network Column Speaker  supports 48 kHz OPUS high-quality audio encoding, providing exceptional clarity for paging, alerts, and background music. It is fully compatible with SIP and VoIP infrastructures, integrating easily with IPPBX systems, IP phones, and network PA controllers. With three SIP account registrations, the speaker can operate across multiple systems simultaneously, expanding its versatility in complex installations.

For enhanced surveillance integration, the DS-60CL supports ONVIF, enabling interoperability with video management systems (VMS). It also includes HTTP API support for triggering alarm broadcasts from external systems, making it suitable for emergency notification environments.

Although powered via network control, the speaker requires an external 24V DC supply, ensuring stable, high-power output for demanding audio requirements.

     Key Features

• 60W high-performance built-in amplifier

• 100Hz–18kHz frequency range for clear voice & music

• 106 dB max SPL for long-distance coverage

• IP65-rated for outdoor durability and harsh environments

• Supports 48 kHz OPUS HD audio codec

• SIP/VoIP compatible (IPPBX, IP Phones, SIP PA systems)

• ONVIF support for VMS and IP camera integration

• Supports 3 SIP lines for multi-system registration

• HTTP API for alarm triggering & automation

• Pole or wall-mounted installation

• Single network cable connectivity (external 24V DC power required)

      Ideal Applications

• Outdoor campuses & school grounds

• Industrial plants & warehouses

• Transportation terminals (rail, metro, bus stations)

• Smart city & public safety systems

• Large commercial complexes

• Public parks, stadiums & open areas

• Emergency notification & evacuation systems
