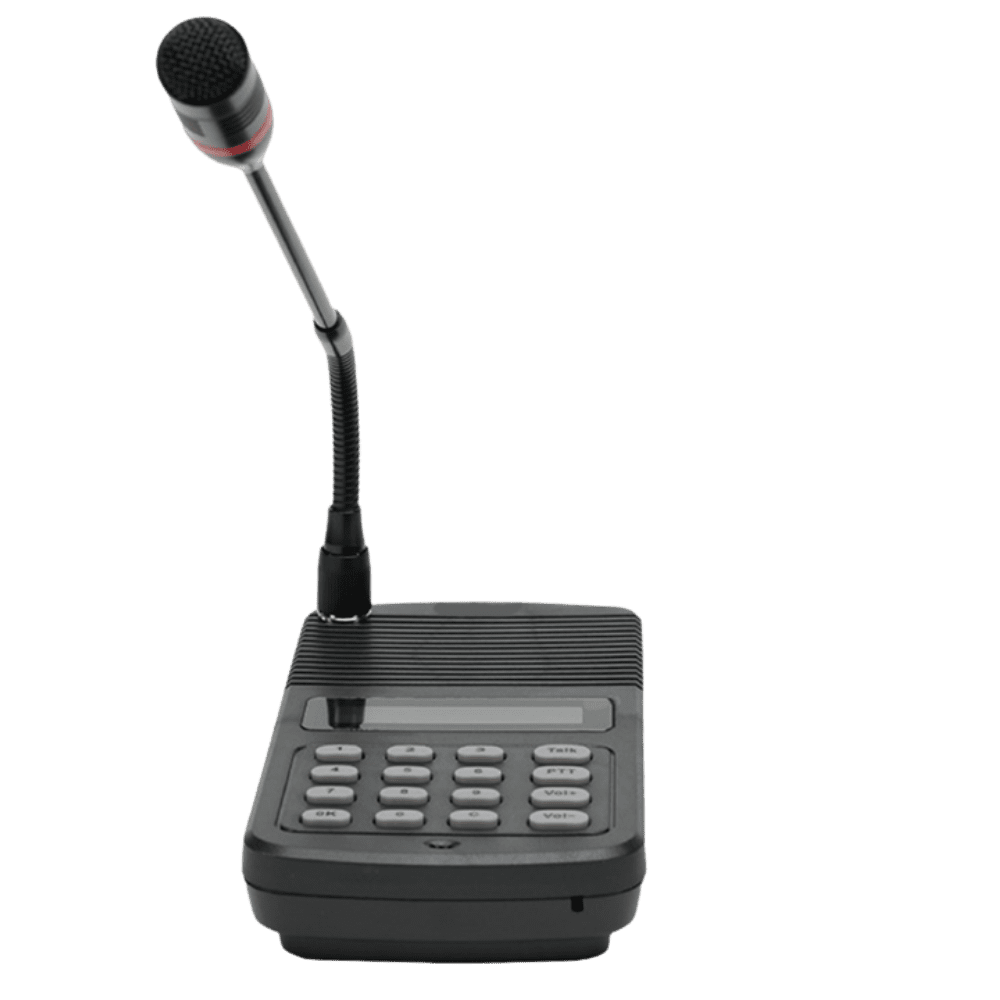

Dasscom M-20 Network Paging Console Phone
The Dasscom M-20 Network Paging Console Phone is a smart SIP-enabled paging and intercom console designed for enterprise and public safety communications. It supports zone paging, hotline calling, programmable function keys, HD voice, and PoE, making it ideal for schools, factories, hospitals, and control rooms.
₹24,800.00 Excluding Tax
Get Latest Price
Enquiry Now
Dasscom M-20 Network Paging Console Phone
The Dasscom M-20 Network Paging Console Phone is a versatile SIP-based communication terminal engineered for efficient paging, intercom, broadcast control, and emergency communication. Designed for modern IP audio systems, the M-20 integrates seamlessly with Dasscom IP Audio Center and third-party SIP servers, providing reliable, high-definition voice performance across multiple communication zones.
Dasscom M-20 Network Paging Console Phone Built for mission-critical environments, the M-20 supports one-touch paging, hotline dialing, zone selection, and quick-trigger emergency alerts. Its intuitive console layout and programmable function keys ensure fast, accurate operation—making it ideal for security desks, reception areas, control rooms, and public safety command centers.
Dasscom M-20 Network Paging Console Phone With support for PoE power, the M-20 requires only a single network cable for power and communication, enabling rapid installation and clean wiring. The high-quality microphone and built-in speaker deliver crystal-clear audio, ensuring intelligible paging and seamless two-way communication even in noisy areas.
Whether used in schools for announcements, factories for safety alerts, or hospitals for internal communication, the Dasscom M-20 provides a reliable and smart communication hub for any IP-based paging system.
Key Features
-
SIP-enabled paging console phone
-
High-definition audio for clear paging and intercom
-
Programmable keys for zone selection, paging, alarms, or hotline functions
-
One-touch paging / emergency call support
-
PoE (Power over Ethernet) single-cable installation
-
Seamless integration with Dasscom IP Audio Center & third-party SIP servers
-
Built-in high-quality microphone & speaker
-
Stable, reliable performance for 24/7 operations
-
Ideal for dispatching, control rooms & campus communication
Ideal Applications
-
Schools & universities
-
Factories & industrial sites
-
Hospitals & healthcare facilities
-
Security rooms & guard stations
-
Government & municipal buildings
-
Airports, bus stations & transport hubs
-
Hotels, malls & commercial complexes
-
Public safety communication networks
M-20
| Brand |
|---|
POWER PARAMETERS
Power Supply: DC12V/2A
Standby Power Consumption:≤5W
Audio & Video Parameters
Audio Codec:MP2, MP3, PCM, ADPCM
Audio Sampling & Bit Rate: 8kHz~22.05kHz, 16bit,
Built-in Speaker:3W ,4Ω
S/N:>80dB
Frequency Response:25Hz~10KHz
Network Parameters
Network I/F:10BASE-T/100BASE-TX RJ45
Network Protocol -TCP/IP、UDP、SIP、ARP、
Configuration Method:Web Interface or DevConfig
Mechanical & Environment Properties
Display Screen:LCD 16 Char x 2
Mounting Method:Desktop or Wall-mounted
Installation Environment: Dry Indoor Locations Only
Operatiing Temperature:0*C~+45*C(32*F~113*F)
Operating Humidity:≤90% RH non-condensing
Colour; Black
Housing Material:Plastic
Product Dimensions:95.7×195.9x 50.6mm
Product Weight:0.3kg
Product Warranty:2 Years Limited
ACCESSORIES
1×Power Adaptor(DC12V/2A) , 1×Quick Installation Guide , 3×Plastic Expansion Sleeve(F7) , 3×Half round head self tapping screw(M4*25) , 1×Terminal(3.96-5P)
