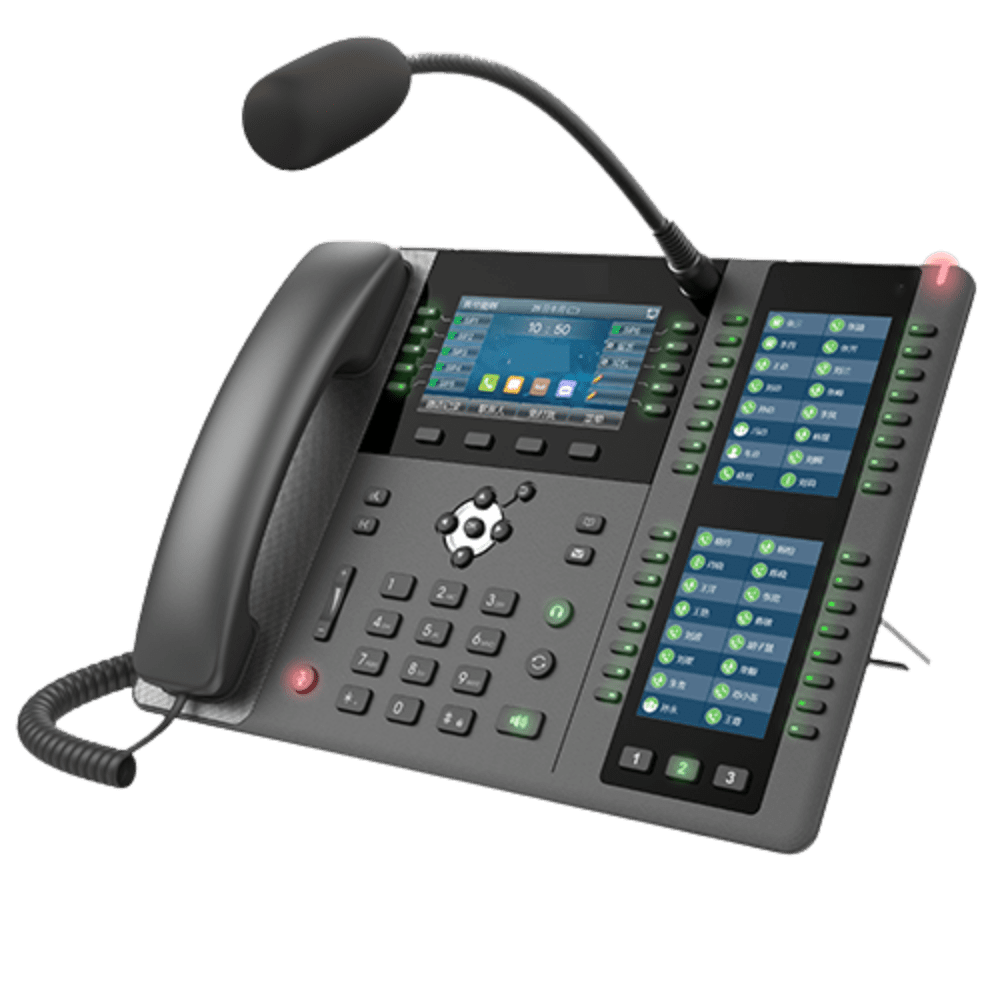

Dasscom M-50 Visualization Paging Console Phone
The Dasscom M-50 Visualization Paging Console Phone is a professional SIP-based communication terminal featuring a gooseneck microphone, HD hands-free calling, intelligent DSS keys, intercom, monitoring, and broadcast functions—ideal for offices, industries, and control rooms requiring fast and reliable communication.
₹50,350.00 Excluding Tax
Get Latest Price
Enquiry Now
Dasscom M-50 Visualization Paging Console Phone
The Dasscom M-50 Visualization Paging Console Phone is a high-end, SIP-enabled communication and control console designed for industrial, commercial, and mission-critical environments. With its stylish visual interface, high-fidelity gooseneck microphone, and HD hands-free calling capabilities, the M-50 ensures clear, efficient, and uninterrupted communication in fast-paced operations.
Dasscom M-50 Visualization Paging Console Phone Engineered for modern command and dispatch centers, the M-50 features intelligent programmable DSS buttons, enabling operators to initiate one-touch paging, broadcast, intercom, or speed dialing to specific departments or zones. This dramatically boosts communication efficiency—making it perfect for supervisors, security personnel, and control room operators.
Dasscom M-50 Visualization Paging Console Phone Built on the industry-standard SIP protocol, the M-50 integrates seamlessly with Dasscom IP Audio Center and third-party SIP servers, functioning as a powerful communication hub for distributed networks. It supports external and internal calling, two-way intercom, real-time monitoring, and paging broadcasting, enabling centralized and highly coordinated operations.
Whether used in industrial facilities, administrative offices, transportation hubs, or emergency control rooms, the M-50 delivers dependable performance and enhances operational responsiveness—making it an essential tool for day-to-day coordination and rapid emergency handling.
Key Features
-
Professional visualization paging console phone
-
High-clarity gooseneck microphone
-
HD hands-free calling for clear voice communication
-
Intelligent programmable DSS buttons for one-click calling & paging
-
Standard SIP protocol for seamless VoIP integration
-
Supports external/internal calls, paging, broadcast & intercom
-
Real-time monitoring for security & supervision
-
Fast, responsive UI for operational efficiency
-
Ideal for command centers, control rooms & industrial communication
Ideal Applications
-
Industrial control rooms
-
Office communication hubs
-
Security & surveillance centers
-
Transportation & logistics management
-
Smart buildings & campus control
-
Hospitals & administrative departments
-
Emergency command & dispatch centers
M-50
| Brand |
|---|
CALL FEATURES
√ Call out / Answer / Reject
√ Mute / Unmute (Microphone)
√ Call Hold / Resume
√ Call Waiting
√ Intercom
√ Caller ID Display
√ Speed Dial
√ Anonymous Call (Hide Caller ID)
√ Call Forwarding (Always/Busy/ No Answer)
√ Call Transfer (Attended/Unattended)
√ Call Parking/Pick-up (Depending on server)
√ Redial
√ Do-Not-Disturb
√ Auto-Answering
√ Voice Message (On server)
√ 3-way Conference
√ Hot Line
√ Hot desking
PHONE FEATURES
√ Local Phonebook (2000 entries)
√ Remote Phonebook (XML/LDAP, 2000 entries)
√ Call logs (In/out/missed, 1000 entries)
√ Black/White List Call Filtering
√ Screen saver
√ Voice Message Waiting Indication (VMWI)
√ Programmable DSS/Soft keys
√ Network Time Synchronization
√ Built-in Bluetooth 2.1: Support Bluetooth headset
√ Support Wi-Fi Dongle
√ Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)
√ Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)
√ Support Recoabra wireless headset (Through Fanvil EHS20 EHS Cable)
√ Support Recording (Through Flash Drive or Server Recording ) Action
NETWORKING
√ Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass
√ IP Mode:IPv4/IPv6/IPv4&IPv6
√ IP Configuration: Static / DHCP / PPPoE
√ Network Access Control: 802.1x
√ VPN: L2TP / OpenVPN
√ VLAN
√ LLDP
√ QoS
√ RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035
PROTOCOLS
√ SIP2.0 over UDP/TCP/TLS
√ RTP/RTCP/SRTP
√ STUN
√ DHCP
√ IPv6
√ LLDP
√ PPPoE
√ 802.1x
√ L2TP
√ OpenVPN
√ SNTP
√ FTP/TFTP
√ HTTP/HTTPS
√ TR-069
√AES128 & AES2
GENERIC
√ 20 SIP Lines
√ HD Voice
√ Support receiving Video call
√ POE Enabled
√ 3 LCDs (Main + DSS)
√ Handset / Hands-free / Headset mode
√ Intelligent DSS Keys
√ 20 SIP Lines
√ HD Voice
√ Support receiving Video call
√ POE Enabled
√ 3 LCDs (Main + DSS)
√ Handset / Hands-free / Headset mode
√ Intelligent DSS Keys
VIDEO
√ Video codec: H.264
√ Video call resolution: QCIF / CIF / VG
PHYSICAL SPECIFICATIONS
√ Main LCD x1: 4.3 inch (480×272) color-screen LCD
√ DSS Key-mapping LCD x2: 3.5 inch (320×480) color-screen LCD
√ Keypad: 77 keys, including 4 Soft-keys
6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)
4 Navigation keys
1 OK key
1 Return key
12 Standard Phone Digits keys
3 Volume Control keys, Up/Down/Mute(Microphone) 1 Hands-free key
42 DSS Keys with tri-color LED 3 Page-Switch (PS) key
√ HD Handset (RJ9) x1
√ Standard RJ9 Handset Wire x1
√ 1.5M CAT5 Ethernet Cable x1
√ Gooseneck Microphone x1
√ Directional microphone
√ Frequency response: 20Hz~20KHz
√ SNR: ≥60 dB.1kHz at 1 Pa
√ Back Rack x1
√ Gooseneck MIC Port x1: Gooseneck Microphone x1
√ RJ45 Port x2: Network x1, PC x1 (Bridged to Network)
√ USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver
√ DC Power Input: 5V/2A
√ Power Consumption (PoE): 2.6~ 9W
√ Power Consumption (Adapter): 2.4~8W
√ Working Temperature: 0~45[)
√ Working Humidity: 10~95%
√ Installation: Desktop Stand
√ Color: Dark gray [) Device Dimensions
√ Desktop Stand (Angles 1): 309 x 214 x 187mm
√ Desktop Stand (Angles 2): 309 x 226 x 167mm
√ Gift Box Dimensions: 323 x 301 x 71mm
The above specifications may be updated in the future without prior notice.
All hardware/software/physical features should be based on the final shipped products.
