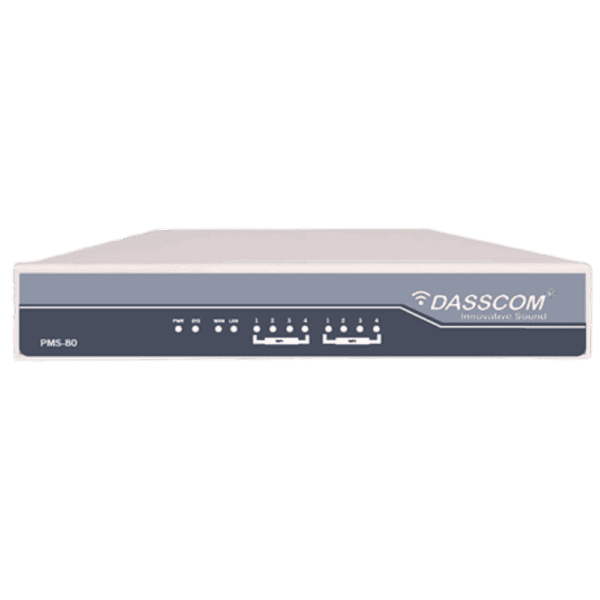

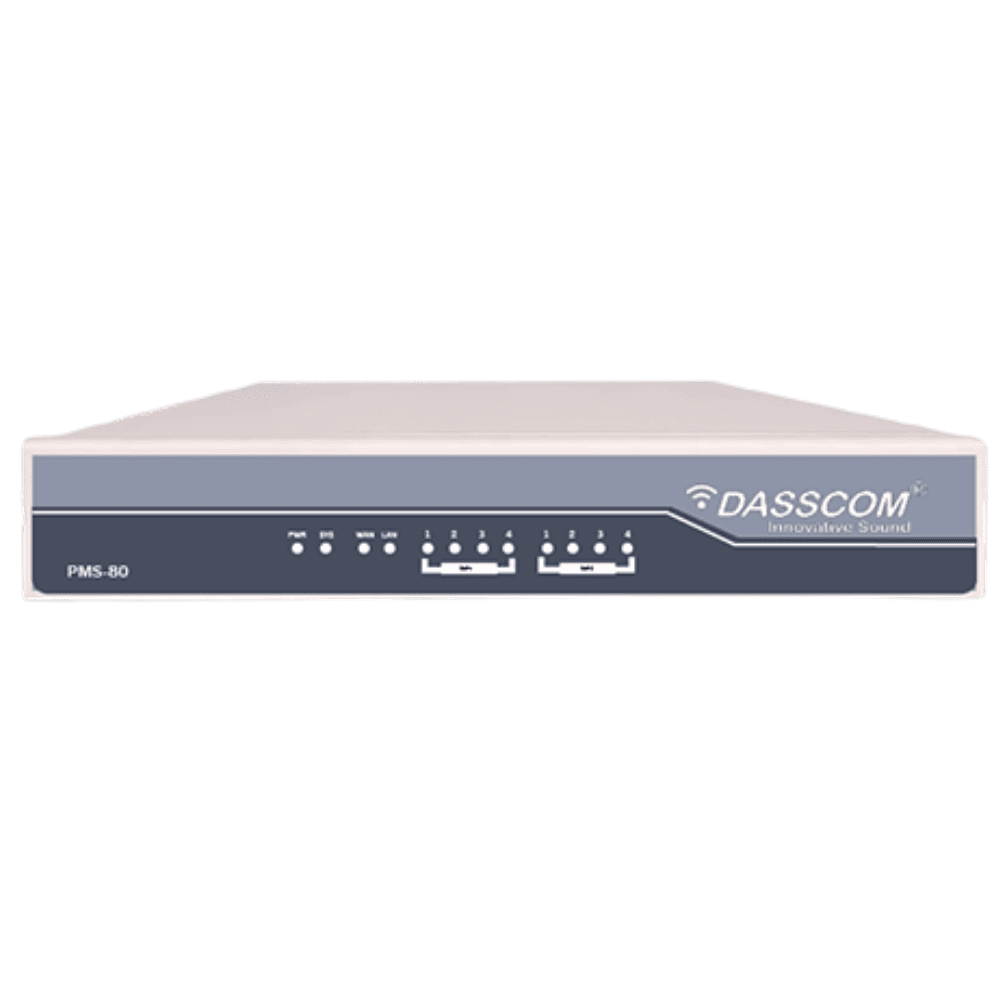

Dasscom PMS-80 IP PA System

(1 customer review)
DASSCOM

The Dasscom PMS-80 IP PA System is a compact and smart public address solution supporting up to 80 SIP speakers and VoIP phones. Powered by Dasscom 4.0 software, it offers easy deployment, intuitive management, paging, BGM, and emergency alerts—ideal for offices, schools, and commercial buildings.

64,500.00 Excluding Tax

Get Latest Price Enquiry Now

Dasscom PMS-80 IP PA System

The Dasscom PMS-80 IP PA System is a modern, easy-to-deploy public address solution designed for small and Medium-sized enterprises seeking a reliable and flexible communication platform. With support for up to 80 SIP speakers, the PMS-80 delivers efficient paging, clear announcements, background music, and emergency notifications across diverse environments such as offices, educational institutions, retail stores, and commercial complexes.

Dasscom PMS-80 IP PA System Engineered with a compact form factor and advanced Dasscom 4.0 software platform, the PMS-80 offers simplified configuration, intuitive device management, and an enhanced user experience. Administrators can effortlessly provision, control, and monitor all connected SIP speakers and VoIP phones from a unified interface, making the system remarkably easy to scale and maintain.

Dasscom PMS-80 IP PA Systems mixed-networking capability allows it to integrate both SIP speakers and VoIP phones, enabling flexible deployment and reducing overall infrastructure costs. Whether used for daily announcements, scheduled messages, background music, or emergency alerts, the PMS-80 ensures fast, stable, and fail-safe communication.

With its sleek design, dependable performance, and enterprise-grade functionality, the Dasscom PMS-80 is a powerful communication hub perfectly suited for growing businesses.


Key Features

  • Supports up to 80 SIP speakers

  • Mixed networking with SIP speakers + VoIP phones

  • Compact, easy-to-deploy IP PA system

  • Powered by advanced Dasscom 4.0 software

  • Paging, announcements & emergency alerts

  • Background music playback (BGM)

  • Intuitive configuration & centralized management

  • Reliable operation for enterprise-grade communication

  • Ideal for small-to-medium business installations


      Ideal Applications

  • Offices & corporate buildings

  • Schools & training centers

  • Commercial shops & showrooms

  • Clinics & hospitals

  • Warehouses & industrial units

  • Hotels & hospitality spaces

  • Co-working spaces & business centers

  • Government & administrative facilities

PMS-80

Brand

Software Specifications

PA Features

PA Zone Groups

Background Music Task

Scheduling Call Transfer Call Waiting Speed Dial

IVR (Multi-layer

Voicemail Wakeup Call Do Not Disturb

Time Conditions Paging & Intercom Caller ID

Video Call Conference Call

Protocols & Codecs

SIP(RFC3261), IAX2 DTMF(RFC4733, SIPINFO,In-Band)

Transport Protocols:UDP,TCP,TLS,SRTP

Network Protocols:IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP

Video Codecs:VP8,H.264,H.263+,H.263,H.261

Audio Codecs:Opus, G.722, G.711(a-law,u-law), G.729, G.726, GSM, SPEEX,AMR,AMR-WB

System Capacity

80 Users

80 Zone Announcement 400 hrs Recording (Internal Storage)

Unlimited SIP/IMS Trunks (Max)

1TB USB Expansion Storage Maximum 30 Paging Groups

Feature Highlights

IP Phone Auto Provisioning (PNP & Quick Register Code) SIP Proxy (NAT Traversal)

Open API Interface for Seconda Development to Connect with 3rd Systems

Multilingual Interface: Simplifed Chinese, Traditional Chinese, English, Spanish, Czech, Korean Multilingual System Voice: Chinese, English, Spanish, French and other 24 languages

Multi-level User  Administration

Admin user: All Privileges

Operator user: Extensions, , CDR, recordings, etc. Operator panel user

Security

Firewall based on iptables

Geo-IP (Security policy based on IP address geographical locations) Intrusion auto detection and prevention

IP Black/White List Extension Permit IP

Data Backup and Recovery

Network Features

Network (WAN): Static IP, DHCP, PPPoE VPN:PPTP,OpenVPN,

Static Routing DHCP Server

VLAN(WAN&LAN Interface) Virtual IP

SIP Proxy (NAT Traversal)

Hardware Specifications

Specifications

CPU-RM 4 Core
RAM-1GB
Storage(SD Card)-8G SD Card (Industrial grade)
USB (Extended Storage Supported)-1 Por(t  File system format:FAT16, FAT32, EXTFAT, NTFS, EXT3, E (T)

Ethernet Interface-WAN,LAN(10/100Mbps)

Console Port-1 Por(t  Rate 115200)
Reset Key-Support
Power-C 12V-1A
