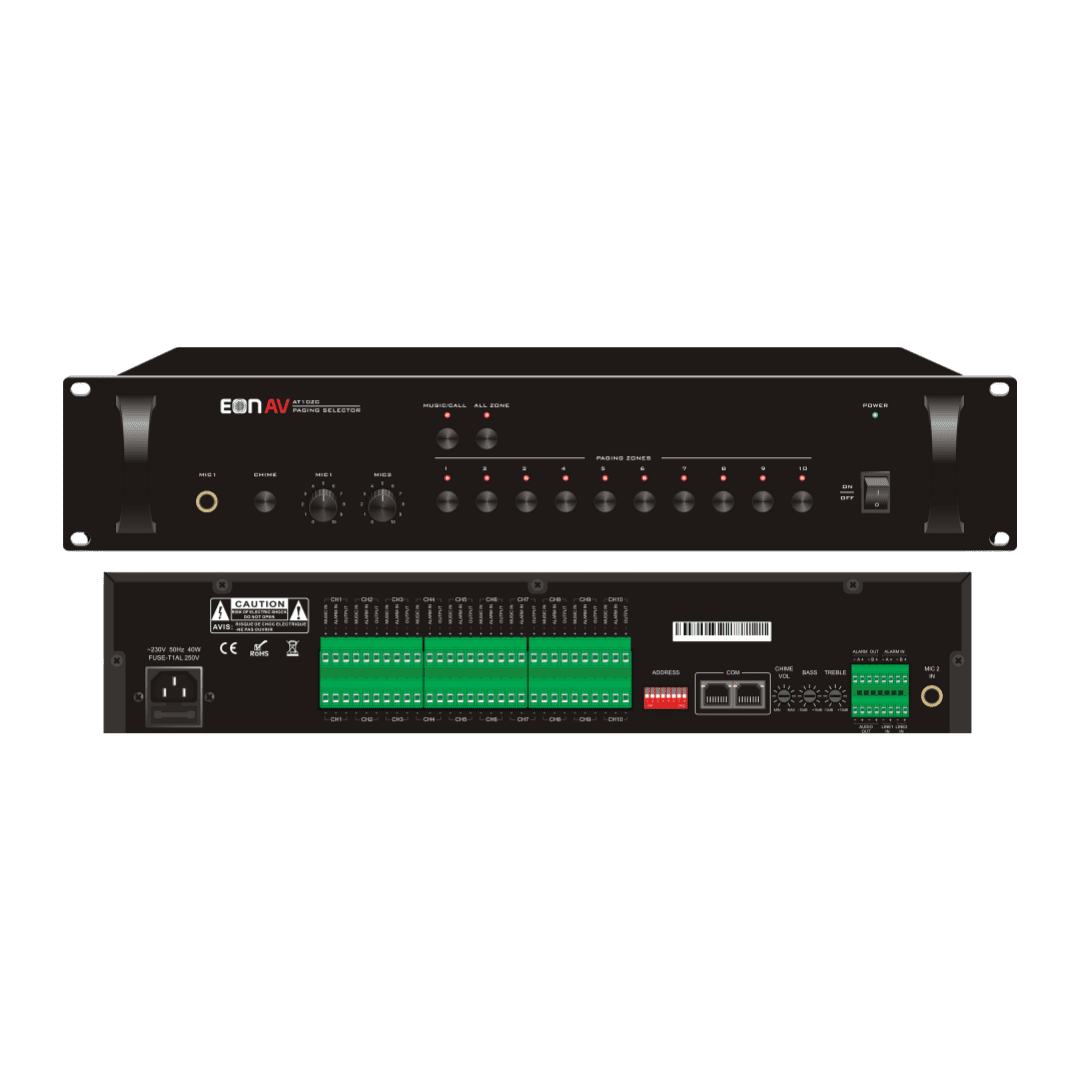

EON AV AT10ZC 10 Zone Controller

The EON AV AT10ZC 10 Zone Controller is a high-performance multi-zone audio management system designed for large public address and emergency notification setups. Offering precise paging, music routing, and alarm handling, the AT10ZC serves as the core controller for distributed audio systems in commercial complexes, hospitals, malls, hotels, corporate campuses, factories, and institutional environments.

EON AV AT10ZC 10 Zone Controller features a built-in 10-zone selector, allowing individual zoning, grouped paging, 10-zone block paging, or all-zone announcements. When integrated with the EON AV ATCS remote call station, the AT10ZC expands seamlessly up to 300 zones, making it suitable for massive multi-floor or multi-building projects.

The AT10ZC offers a unique dual-amplifier input architecture with separate channels for BGM (Background Music) and EMC/Paging, ensuring that music continues uninterrupted in unaffected zones during paging or emergency announcements. This capability ensures better user experience and maximum system efficiency.

EON AV AT10ZC 10 Zone Controller With a robust 500W power capacity per zone and a total system capacity of 5000W, the controller supports high-power installations for large spaces. The zone status indicators use dual-color LEDs to display music, paging, or alarm status clearly.

It includes high-priority EMC input, Mic priority, and remote paging console priority, along with a built-in chime generator with adjustable volume. Comprehensive I/O options such as Mic inputs, Line inputs, alarm inputs/outputs, and RJ45 communication ports make the AT10ZC highly flexible and easy to integrate.

Its memory retention feature stores system status even during power failures, automatically restoring settings upon restart—critical for 24/7 environments.

KEY FEATURES

🔹 Multi-Zone Control

• Built-in 10-zone selector

• Expandable up to 300 zones via remote paging consoles

• Individual, group, 10-zone block, and all-zone paging

🔹 High Power Handling

• 500W per zone, total 5000W capacity

• 10 speaker output terminals

🔹 Advanced Amplifier Routing

• Two-channel amplifier inputs:

  • Channel A → BGM

  • Channel B → EMC/Paging

• Supports 20-amp wiring (10 BGM + 10 Paging amps) or 2-amp split-zone wiring

🔹 Priority & Paging Control

• Priority order:

  1. EMC input

  2. Mic 1

  3. Remote paging console (with chime)

• Built-in chime with adjustable volume

🔹 Alarm Integration

• All-zone alarm inputs (A/B)

• All-zone alarm outputs (A/B)

🔹 Flexible Inputs/Outputs

• Mic 1–2 input

• Line 1–2 input

• Audio output

• RJ45 ports for paging consoles / cascading controllers

🔹 Smart System Management

• Memory retention during power shutdown

• DIP switch ID addressing

• LED indicators for zone status (music / paging / alarm)
