Bosch DCNM-D DICENTIS Discussion Device

(4 customer reviews)
BOSCH
Availability:

Out of stock


The Bosch DCNM-D DICENTIS Discussion Device delivers powerful, secure, and crystal-clear communication for meetings. Featuring award-winning design, flexible participant/chairperson configuration, and expandable software-based functionality, it is the ideal solution for premium IP conferencing environments.

189,202.00 Excluding Tax

Out of stock

Get Latest Price Enquiry Now

Bosch DCNM-D DICENTIS Discussion Device

The Bosch DCNM-D DICENTIS Discussion Device represents the next generation of professional conferencing, built on the powerful IP-based OMNEO media networking architecture. Designed to scale from small meeting rooms to complex multilingual conference environments, this device ensures exceptional sound quality, security, and future-proof expandability.

With open-platform technology, the DCNM-D seamlessly integrates with other DICENTIS components and network-enabled systems, delivering unmatched flexibility for evolving meeting needs. It enables participants to speak, request-to-speak, and listen to discussions with outstanding speech intelligibility — a crucial requirement for business councils, governments, corporate boardrooms, and high-level decision environments.

Bosch DCNM-D DICENTIS Discussion Device can be configured via software as a single-user delegate or a chairperson’s unit, while a cost-effective software license unlocks dual-use functionality when needed. This modular expansion capability means facilities pay only for the features they require, with room to grow.

Bosch DCNM-D DICENTIS Discussion Device uses advanced digital signal processing, delivering crystal-clear sound with a very high signal-to-noise ratio, ensuring every voice is heard naturally and accurately. Both the built-in speaker and microphone can operate simultaneously, providing a realistic face-to-face meeting experience. A dynamic feedback suppressor maintains audio clarity even in rooms with challenging acoustics.

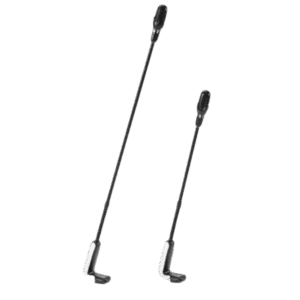

Security is assured through encrypted communication, ensuring confidential information stays protected against unauthorized access. The device supports pluggable Bosch microphones including DCNM-HDMIC, DCNM-MICL, and DCNM-MICS (ordered separately), enabling configuration for different room setups.

To support accessibility and personal listening comfort, headphone connections with individual volume control are available on both sides of the unit.

With its award-winning modern design, premium audio performance, and intelligent functionality expansion through software — the Bosch DCNM-D sets a new benchmark in professional conferencing technology.


🔸 Bosch DCNM-D DICENTIS Discussion Device Key Features

  • Premium IP conference audio using OMNEO media networking

  • Configurable as delegate, chairperson, or dual-use (via software license)

  • High speech intelligibility with feedback suppression

  • Encrypted communication for secure meetings

  • Supports pluggable microphone options (ordered separately)

  • Dual headphone jacks with independent volume control

  • Award-winning, elegant & durable design

  • Fully scalable — ideal for small to large installations



BOSCH DCNM-D

Brand

    Technical specifications

Supply voltage 48 VDC
Power consumption 3.1 W
Frequency response 100 Hz to 20 kHz (-3 dB at nominal level)
THD at nominal level < 0.1 %
Dynamic range > 90 dB
Signal‑to‑noise ratio > 90 dB
Nominal microphone input 80 dB SPL according to ISO22259 (IEC60914)
Maximum microphone input 110 dB SPL according to ISO22259 (IEC60914)
Loudspeaker nominal output 72 dB SPL at 0.5 m
Loudspeaker maximum output 87 dB SPL
Headphone nominal output 0 dBV
Headphone maximum output 3 dBV
Headphone load impedance > 32 ohm <1k ohm
Headphone output power



65 mW
Mounting Tabletop
Dimensions (H x W x D) without microphone 72 x 259 x 139 mm

(2.8 x 10.2 x 5.5 in)

Color (top and base) Traffic black (RAL 9017)
Weight Approx. 955 g (2.1 lb)
Operating temperature 5 ºC to +45 ºC

(41 ºF to +113 ºF)

Storage and transport temperature -30 ºC to +70 ºC

(-22 ºF to +158 ºF)

Relative humidity < 90 %, > 5%
