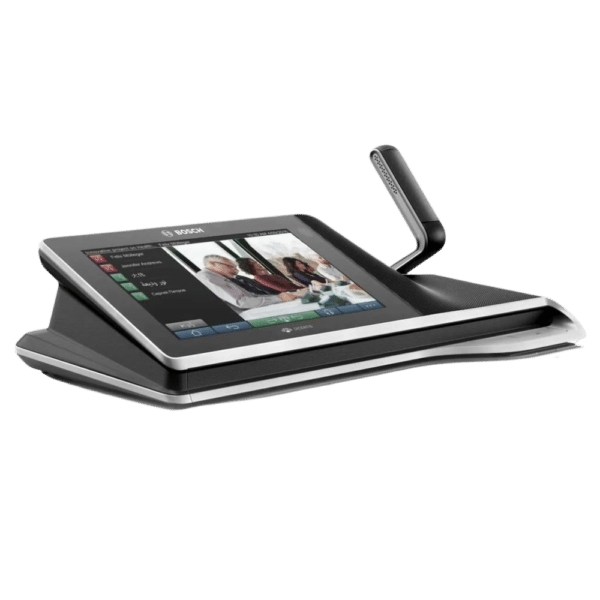

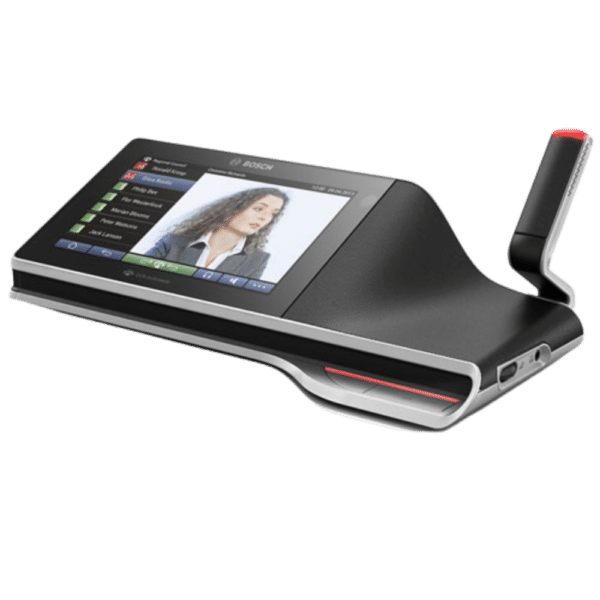

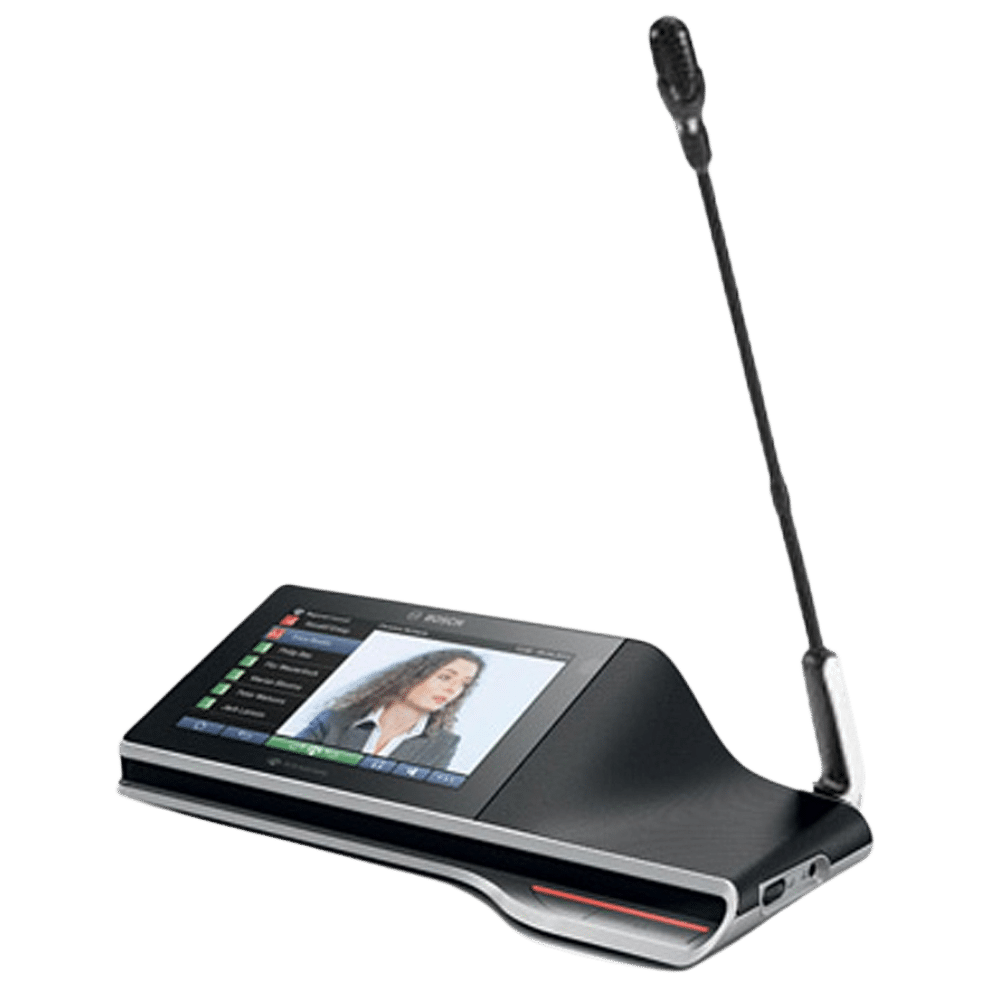

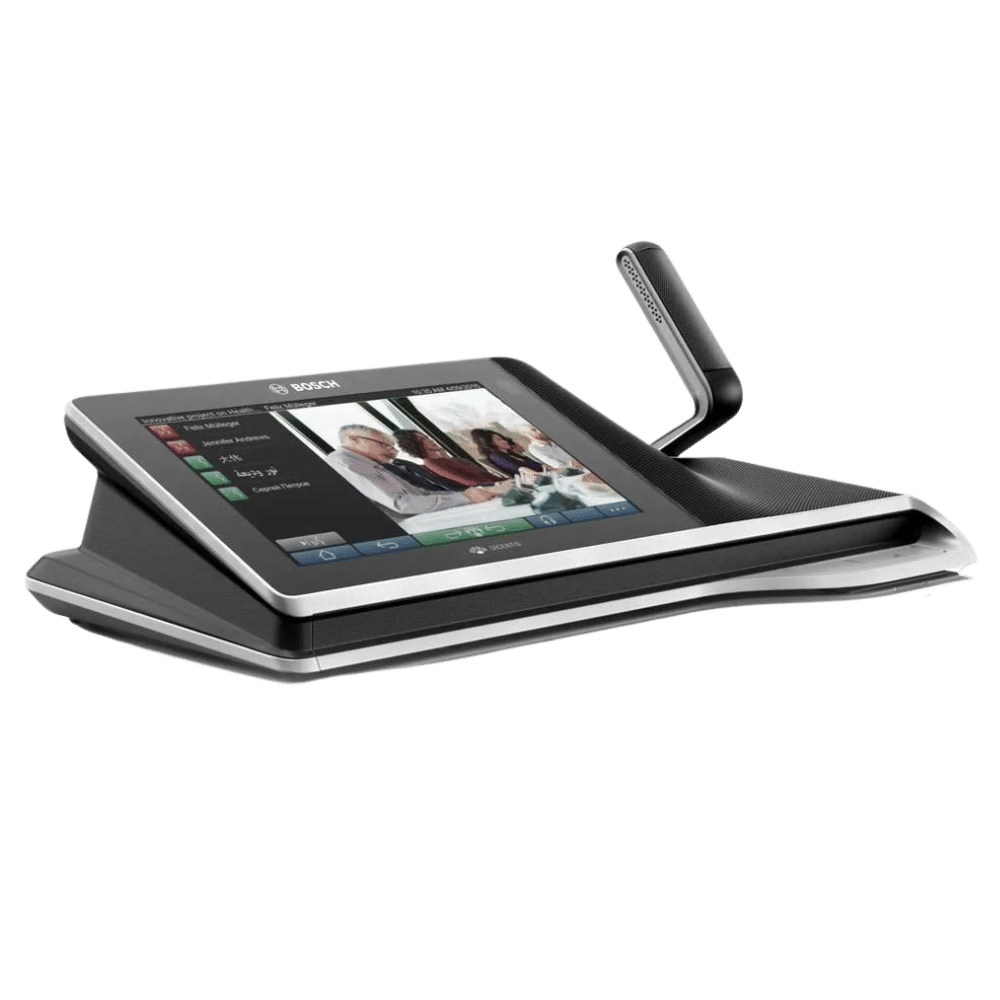

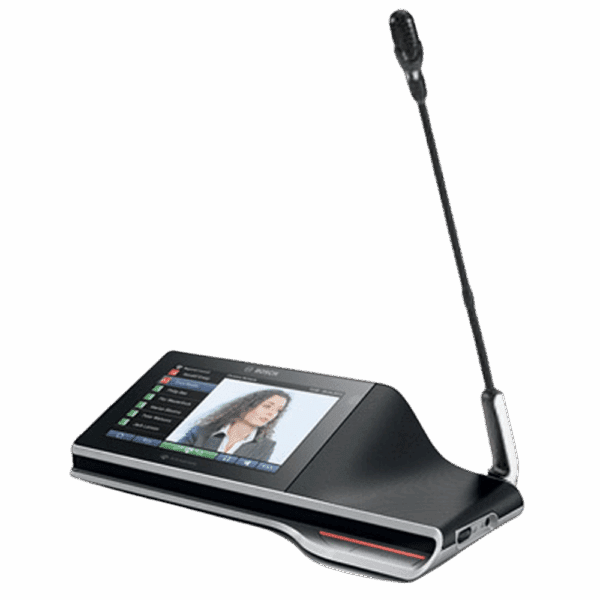

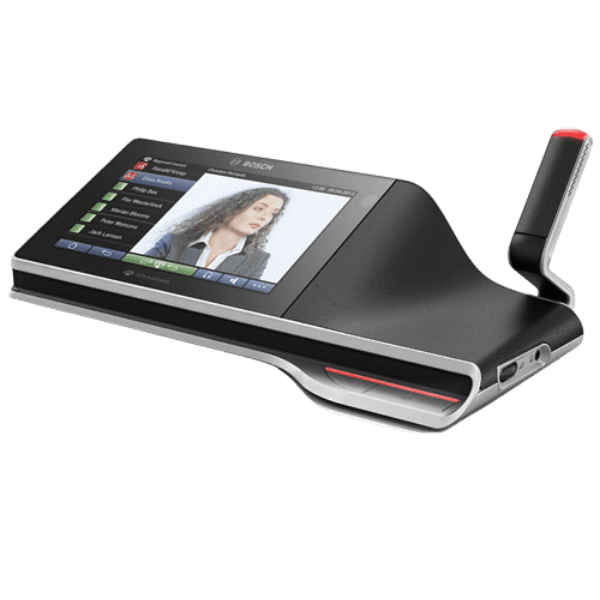

BOSCH DICENTIS DCNM-MMD2 Multimedia device
BOSCH DICENTIS DCNM-MMD2 Multimedia device
BOSCH DICENTIS DCNM-MMD2 Multimedia device
BOSCH DICENTIS DCNM-MMD2 Multimedia device
BOSCH DICENTIS DCNM-MMD2 Multimedia device
BOSCH DICENTIS DCNM-MMD2 Multimedia device

BOSCH DICENTIS DCNM-MMD2 Multimedia device

(3 customer reviews)
BOSCH
Availability:

Available on backorder
Add to wishlist
Compare

Multimedia conference device with capacitive touch screen and built‑in Near Field Communication (NFC) contactless tag reader. Microphone and cable to be ordered separately.

  • 7″ capacitive touchscreen for video, meeting content and internet access
  • Built‑in Near Field Communication (NFC) contactless tag reader

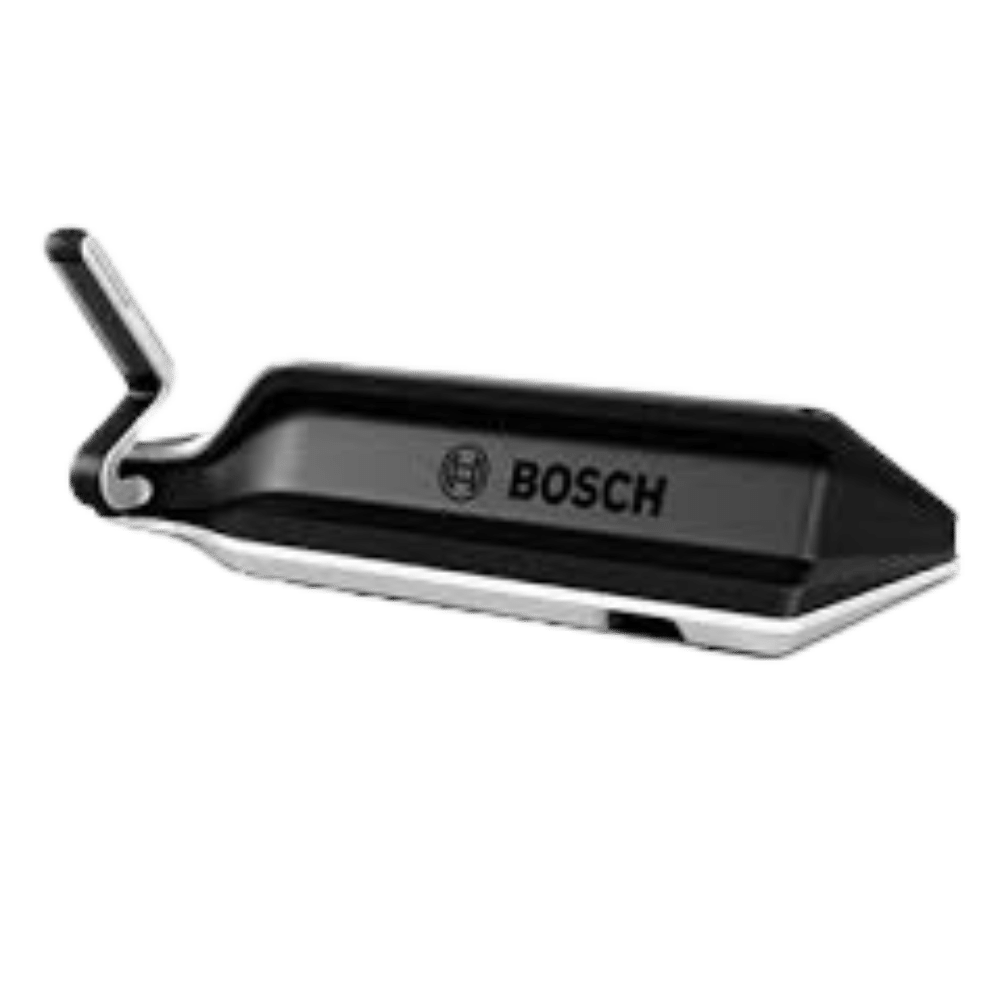

  • Unobtrusive pluggable microphone
  • Built‑in two‑way loudspeaker
  • Additional functionality via software licenses and third party/custom apps

₹362,820.00 Excluding Tax

Available on backorder

Get Latest Price Enquiry Now

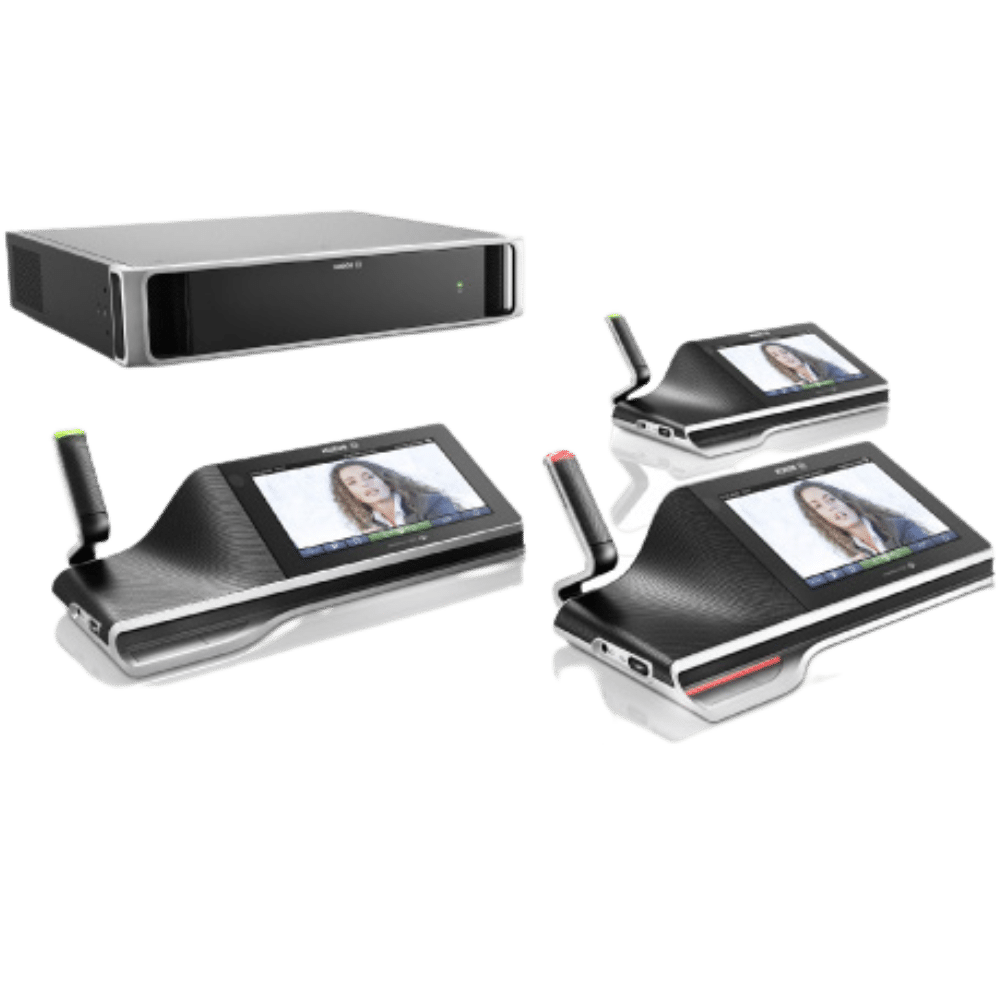

BOSCH DICENTIS DCNM-MMD2 Multimedia device is essential for local and regional councils and is ideal when multimedia content is required. It is easily plugged into, or removed from, the DICENTIS Conference System using the system network cabling. The connectors are at the bottom of the device, ensuring a neat and clean system installation. Devices can be free‑standing or fixed to the table with mounting screws. To combine security and ease of use, the device supports Identification, by use of a Near Field Communication (NFC) reader. BOSCH DICENTIS DCNM-MMD2 Multimedia device can be remotely configured as chairperson or participant seat and has a remote switch‑off function for energy saving. It has perfect audio quality and a pluggable microphone, which can be ordered separately. The multimedia devices can be connected in a simple daisy‑chain configuration or alternatively connected in a star configuration, where each device is connected to a Power over Ethernet compatible switch with an individual standard CAT‑5e (or better) cable.



SKU: DCNM-MMD2 Category: Tags: , , , , , , Brand:

BOSCH DCNM-MMD2

Brand

Technical specifications

Screen size 7 inch, 1024 x 600 pixels
Screen type Capacitive multi touch
Operating system Android 4.03
Supported contactless NFC According to: ISO/
tag IEC14443 Type A
(from 106 kbps to
848 kbps. MIFARE
106kbps).
Supply voltage 48 Vdc IEEE 802.3 at

Type 2
Power consumption 12 W
Frequency response 100 Hz – 20 kHz

(-3 dB at nominal level)
THD at nominal level < 0.05 %
Dynamic range 96 dB

(14‑110 dBSPL)
Signal-to-noise ratio 66 dB with respect to nominal level headroom 30 dB
Nominal microphone input 80 dB SPL according to ISO22259 (IEC60914)
Maximum microphone input 110 dB SPL

according to ISO22259 (IEC60914)
External microphone nominal input -38 dBV
External microphone maximum input -25 dBV
Loudspeaker nominal output 72 dB SPL @ 0.5 m
Loudspeaker maximum output 90 dB SPL
Headphone nominal output -9 dBV
Headphone maximum output -6 dBV
Mounting Tabletop
Dimensions (H x W x D) 75 x 312 x 175 mm

(2.95 X 12.28 x 6.89

in)
Weight 1.85 kg (4.078 lb)
Color Traffic black RAL 9017

Pearl light grey RAL 9022
Operating temperature 0 ºC to +35 ºC

(32 ºF to +113 ºF)
Storage and transport temperature -20 ºC to +60 ºC

(-4 ºF to +140 ºF)
Relative humidity < 90 %, > 5%
