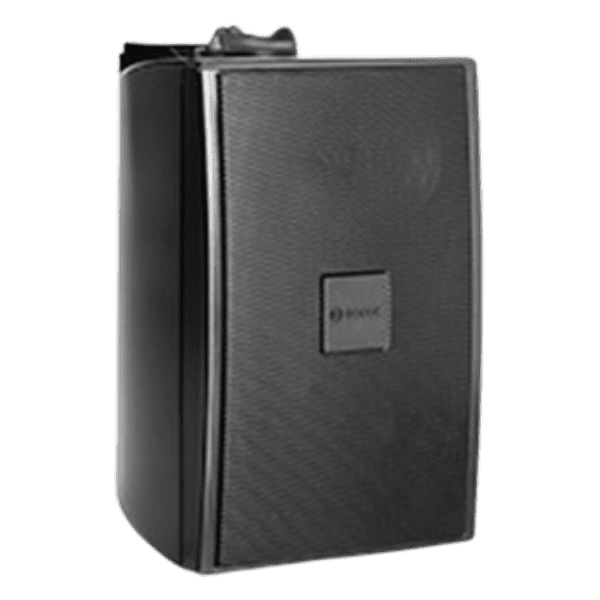

BOSCH LB2-UC15-D1 15W Cabinet loudspeaker is intended for clear reproduction of speech, foreground and background music to be used in general indoor and outdoor applications.
BOSCH LB2-UC15-D1 15W Cabinet loudspeaker consists of a 15 W model, available in a dark color. The loudspeaker has selectable 8 ohm, 70 V and 100 V inputs.
The ABS cabinets are fitted with aluminum front‑grilles and standard supplied with aluminum bracket.
Typical applications are: theme bars, music restaurants, theme parks, retail outlets, audio visual, boardrooms and offices, exhibition areas, showrooms, fitness centers and presentation environments.
All Bosch loudspeakers are designed to withstand operating at their rated power for 100 hours in accordance with IEC 60268-5 Power Handling Capacity (PHC) standards. Bosch has also developed the Simulated Acoustical Feedback Exposure (SAFE) test to demonstrate that they can withstand two times their rated power for short durations.
This ensures improved reliability under extreme conditions, leading to higher customer satisfaction, longer operating life, and lessons the chance of failure or performance deterioration.

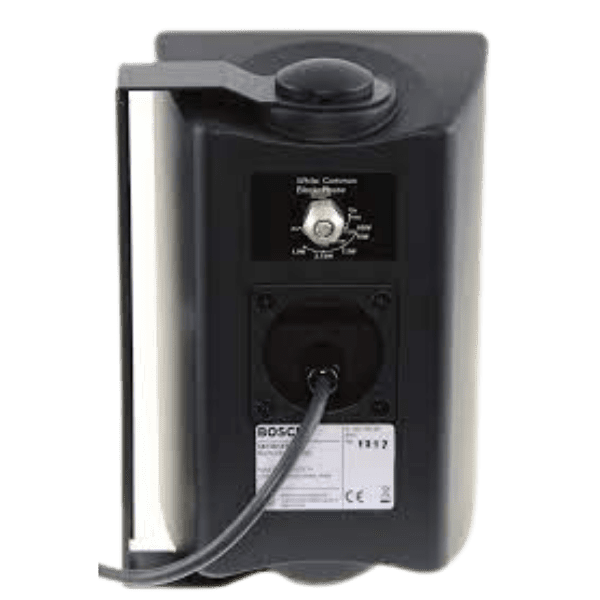

The cabinets include a built‑in transformer that offers a selection of nominal full power, half power, quarter power or eight power radiation (i.e. in 3 dB steps) for 70 V, 100 V or 8 Ohm bypass. Selection is done by a convenient switch on the rear Enclosure.
A two meter long twin‑core loudspeaker cable (in matching color with the cabinet) is connected to the loudspeaker. The core ends are stripped ready for use.
The mounting brackets are fitted with anti‑theft torx screws, covered with plastic covers in matching color of the cabinets.
The cabinets can be mounted horizontally to allow the, loudspeaker to be directed up or down, or vertically to allow left and right rotation by means of a steel U shaped wall bracket (standard supplied).
The rotatable logo can be easily adjusted to match the mounting orientation.
BOSCH LB2-UC15-D1 15W Cabinet loudspeaker
LB2-UC15-D1 Cabinet loudspeaker, 15W, black
Cabinet Loudspeaker 15 W, ABS enclosure, U‑bracket mounting, fixed 2 m twin‑core connection cable, water- and dust protected IP 65, charcoal RAL 7021.
- High-fidelity music and speech reproduction
- Selectable 8 ohm, 70 V and 100 V inputs
- Compact yet robust ABS enclosure
- Supplied with adjustable mounting bracket
- Complies with international installation and safety regulations
₹8,300.00 ₹12,333.00 Excluding Tax
LB2-UC15-D1
| Brand |
|---|
Technical specifications
| Product | LB2-UC15-D1 |
| Description | Premium‑sound Cabinet Loudspeaker |
| Maximum power | 22.5 W |
| Rated power (PHC) | 15 W |
| Power tapping | 15/7.5/3.75/1.9 W |
| Sound pressure level at rated
power / 1 W (1 kHz, 1 m) Effective frequency range (-10 dB) |
99/87 dB (SPL)
95 Hz to 20 kHz |
| Opening angle at 1 kHz / 4 kHz (-6 dB) | 184° / 112° (hor.), 170° / 35°
(ver.) |
| Rated input voltage | 11/70/100 V |
| Rated impedance | 8/326/667 ohm |
| Transducers | 101.6 mm (4”) woofer, 13 mm (0.51”) dome tweeter |
| Connection | 2 m (78.8 in.) two‑wire cable |
| Dimensions (HxWxD) | 205 x 136 x 118 mm
(8.1 x 5.4 x 4.6 in.) |
| Weight | Approx. 1.9 kg (4.18 lb) |
| Color | Charcoal (RAL 7021) |
