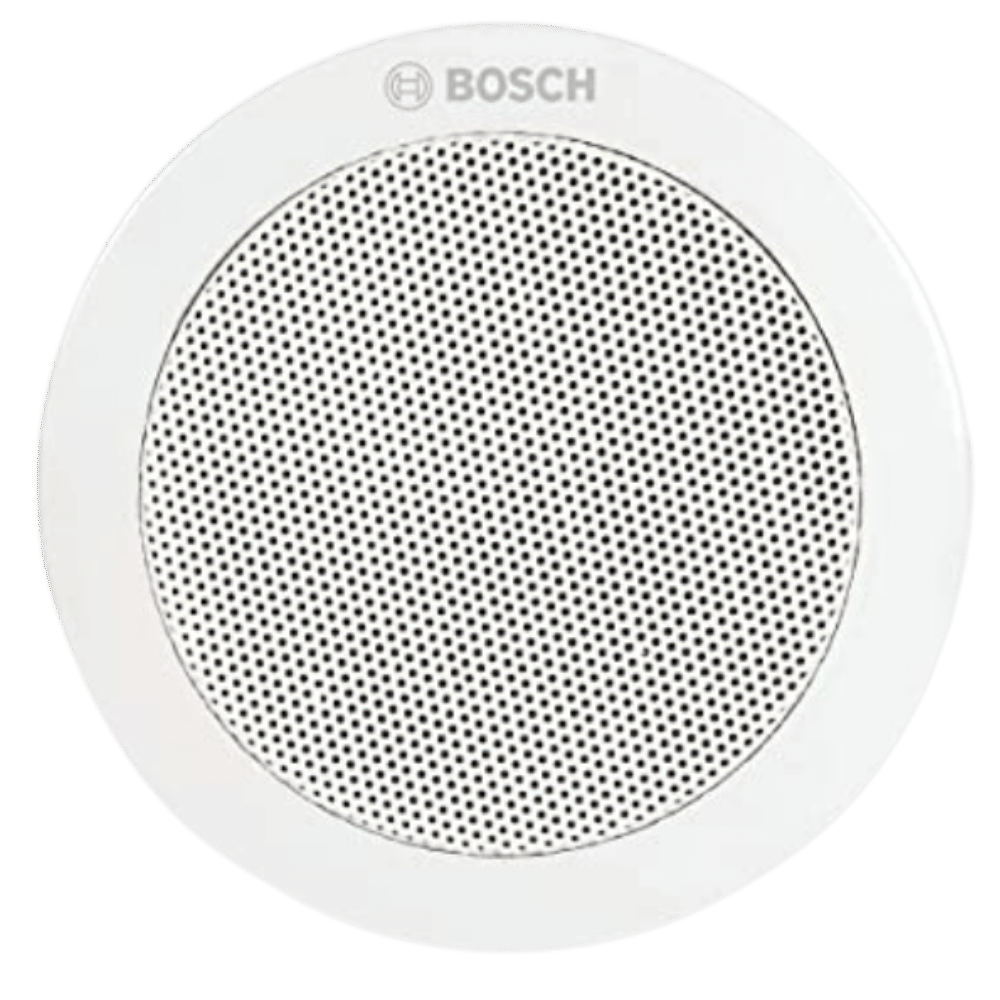

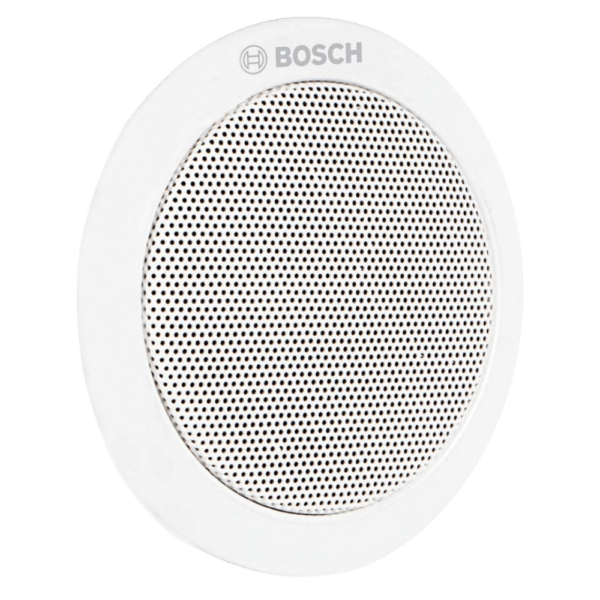

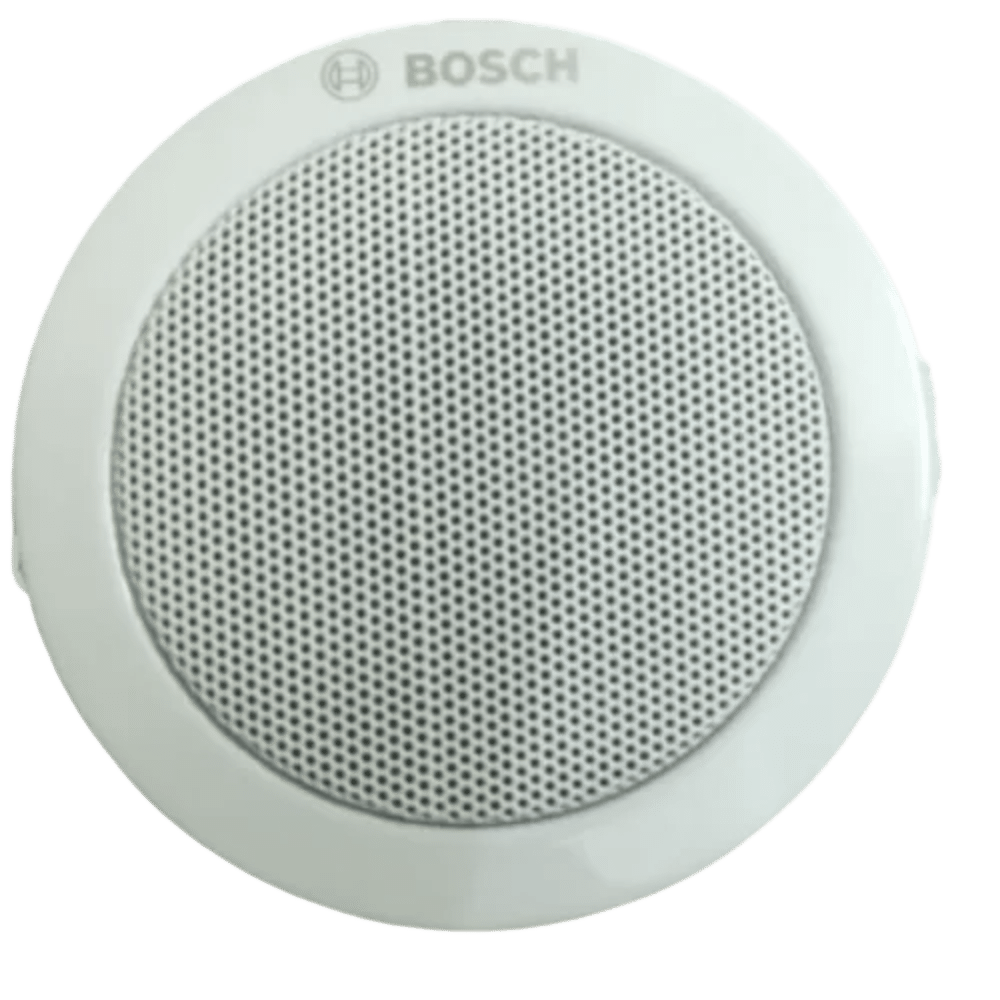

BOSCH LCZ-UM06-IN – 6W Compact Metal Ceiling Speaker is a general purpose, 6 W, compact ceiling loudspeaker, suitable for speech as well as music reproduction, preferred in places where there is a space constraint.
The ceiling loudspeaker is compact in design, integrated with a metal grille and baffle, finished with an attractive signal-white color.
The loudspeaker has good sensitivity and a wide frequency range, which makes it suitable for speech and music reproduction. It has an in-built line matching transformer, which supports a 100 V line output from the amplifier. The transformer has 3-tappings – full power, half power and quarter power, which helps the user to select the desired output levels based on their customized requirements.
The loudspeaker is equipped with an spring mounting mechanism, which helps in quick installation of the speaker on the ceiling.
BOSCH LCZ-UM06-IN – 6W Compact Metal Ceiling Speaker unit has a diameter of 105 mm. A cutout of 84 mm diameter needs to be carved out in the ceiling for installation.
The loudspeaker can be installed by pulling up the mounting clamps and inserting the loudspeaker into the cutout in the ceiling.

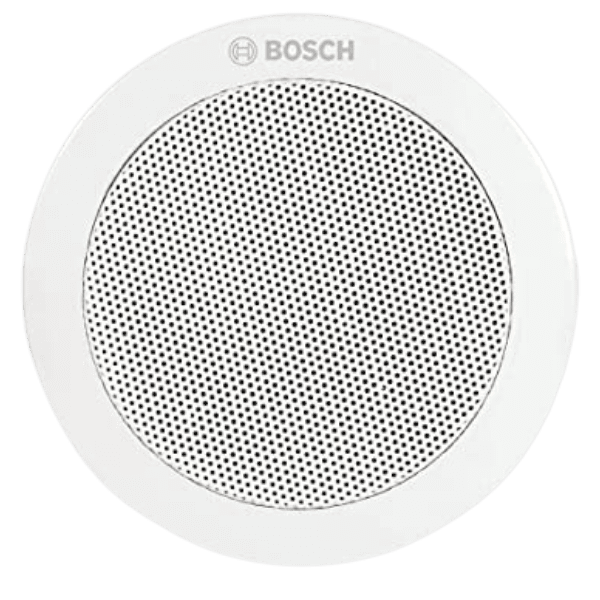

BOSCH LCZ-UM06-IN- 6W Compact Metal Ceiling Speaker
LCZ-UM06-IN Compact ceiling speaker, 6W, metal Compact ceiling speaker, 6W, metal
- Available in 6 W power output
- Excellent for speech and music reproduction
- Compact design, suitable for small places
- Available in attractive signal-white color
- Quick installation through integrated spring mount mechanism
₹936.00 ₹1,250.00 Excluding Tax
LCZ-UM06-IN
| Brand |
|---|
Technical specifications
| Dimensions (DxH) | 105 mm x 90 mm |
| Weight | 580 g |
| Color | Signal-white (RAL 9003) |
| Operating temperature | -5 °C to +55 °C |
| Storage Temperature | -40 °C to +70 °C |
| Relative humidity | 95% |
| Rated power | 6 W |
| Input Voltage | 100 V |
| SPL (at 6 W/1 W, 1 kHz) | 92/85 dB |
| Effective frequency range (-10 dB) | 100 Hz to 20 kHz |
| Opening angle at 1kHz/4kHz (-6 dB) | 180°/130° |
| Rated Voltage | 100 V |
| Rated impedance | 1667 Ohm |
| Connector | 4-pole screw connector |
