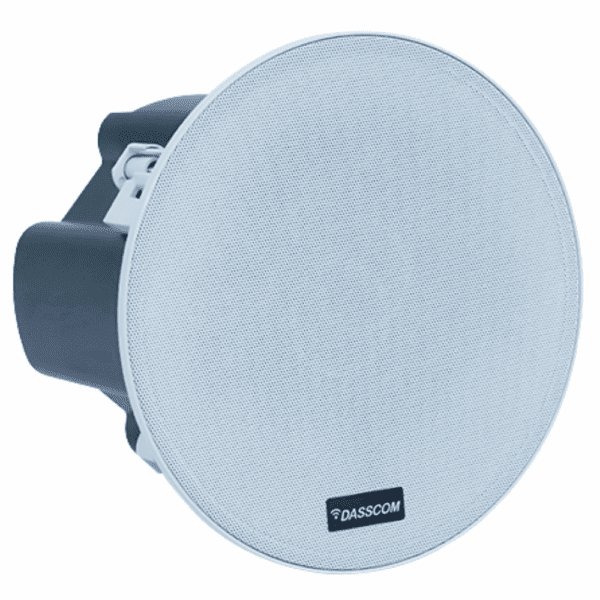

Dasscom DS-10C Network Ceiling Speaker 10W
The Dasscom DS-10C is a SIP-enabled ceiling speaker designed for industrial-grade applications requiring reliable audio communication. Engineered for clear and intelligible voice delivery, it supports background music, public address announcements, and intercom functionality with high efficiency. Built on open SIP standards and compact, high-performance hardware, the DS-10C integrates seamlessly with Dasscom’s X10 SIP paging gateway, allowing users to create customized intercom and paging solutions. Ideal for smart city deployments, this speaker enhances communication flow, boosts operational efficiency, and contributes to public safety infrastructure—making it a vital tool for modern, connected environments focused on safety, awareness, and information sharing
₹15,250.00 Excluding Tax
Get Latest Price
Enquiry Now
-
IP Speakers

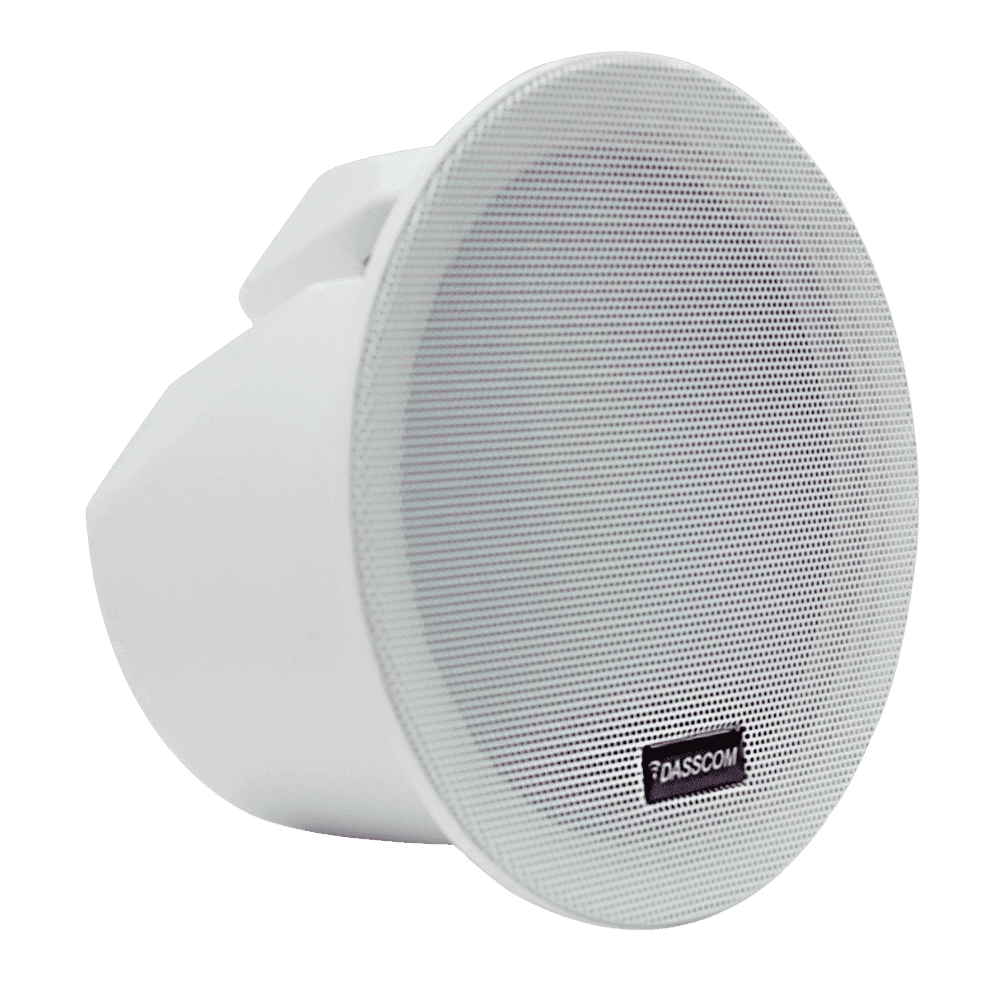

Dasscom DS-10C Network Ceiling Speaker 10W
The Dasscom DS-10C is a SIP-enabled ceiling speaker designed for industrial-grade applications requiring reliable audio communication. Engineered for clear and intelligible voice delivery, it supports background music, public address announcements, and intercom functionality with high efficiency. Built on open SIP standards and compact, high-performance hardware, the DS-10C integrates seamlessly with Dasscom’s X10 SIP paging gateway, allowing users to create customized intercom and paging solutions. Ideal for smart city deployments, this speaker enhances communication flow, boosts operational efficiency, and contributes to public safety infrastructure—making it a vital tool for modern, connected environments focused on safety, awareness, and information sharing
SKU: Dasscom DS-10C -
IP Audio Solution
Zycoo IAS-L100 IP Audio Server
Zycoo IAS-L100 IP Audio Server is the hardware server installed the ZYCOO IP Audio Center, provides user the out-of-the box feature to ready to use. The IP Audio Center is a comprehensive public address system that provides centralized IP audio endpoints auto provisioning and management features. To achieve features like background music, group paging, audio conferencing, video linkage, IP phone call, and etc. It is suitable for public safety, smart city, secure community, industry, healthcare, and much more application scenarios.
SKU: IAS-L100 -
IP Audio Solution
Zycoo IP Audio Center
ZYCOO IP Audio Center is the engine of ZYCOO IP Audio Solution, it is a software solution which can be installed on hardware or cloud-based servers. It has IP public address system, SIP voice/video intercom and IP PBX system modules integrated, it provides an all-in-one unified IP audio solution.
The IP Audio Center provides centralized IP audio endpoints auto provisioning and management, public address, background music, intercom, emergency Paging, audio conferencing, IP phone call and more features. It is suitable for public safety, smart city, secure community, industry, transportation, health and more application scenariosSKU: IP Audio Center
The Dasscom DS-10C is a SIP-enabled ceiling speaker designed for industrial-grade applications requiring reliable audio communication. Engineered for clear and intelligible voice delivery, it supports background music, public address announcements, and intercom functionality with high efficiency. Built on open SIP standards and compact, high-performance hardware, the DS-10C integrates seamlessly with Dasscom’s X10 SIP paging gateway, allowing users to create customized intercom and paging solutions. Ideal for smart city deployments, this speaker enhances communication flow, boosts operational efficiency, and contributes to public safety infrastructure—making it a vital tool for modern, connected environments focused on safety, awareness, and information sharing
DS-10C
| Brand |
|---|
| Speaker Size | 6 Inch |
| Average Sensitivity | 91dB/1m/1W |
| Frequency Response | 70Hz-20KHz |
| THD | <0.1% |
| Max SPL at 1m (Passive) | 101dB |
| Amplifier | Single-Chanel Class D Topology |
| Rated Power | 80* 10W |
| Coverage Pattern | 90°H 50°V 30m² |
| Audio | |
| Network Audio Types | G.722, G.711 A-law, G.711 U-law, Opus |
| Network | |
| Ethernet | IEEE 802.3 10/100Base-T |
| PoE | IEEE 802.3 AT Compliant |
| Supported Protocols | SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP
, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, |
| Ip Addressing | DHCP / Static |
| Mechanical Properties | |
| Memory | 128MB RAM, 256MB Flash |
| AC Power Input | PoE+ and External 24VDC |
| Casing Material | Cold rolled steel finished in textured white epoxy |
| Mounting Method | Wall mounted |
| Color | White |
| Weight | 2 Kgs (Approx) |
| Dimensions – Surface-mounted | 280*280*65mm |
| Dimensions – Flush-mounted | 300*300*65mm |
| SYS Light Status | On/Off/Flash |
| PWR Light Status | On/Off/Flash |
| RST Key | On/Off/Flash |
| Environmental | Press and hold for 3 seconds to announce IP address;
Press and hold for 10 seconds to reset device to factory defaults. |
| Installation Environment | Indoor |
| Operating Temperature | -20°C -50°C (-4°F – 122°F) |
| Storage Temperature | -40°C – 70°C (-40°F – 158°F) |
| Humidity | 10%-95% RH Non-condensing |
| Warranty | 2 Years Limited |
