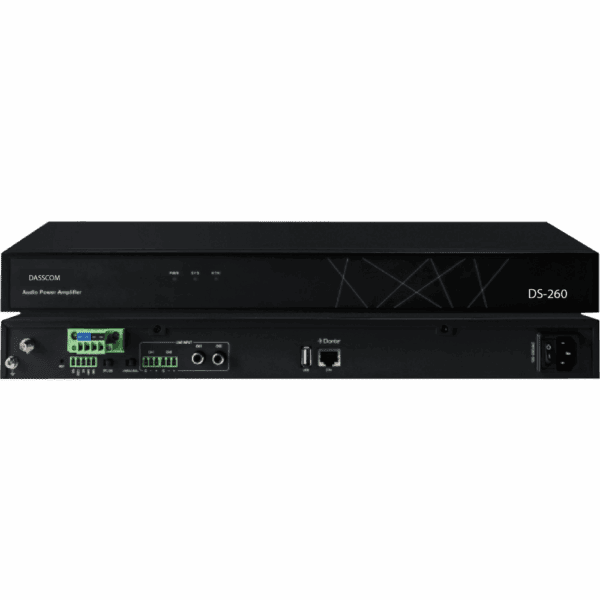

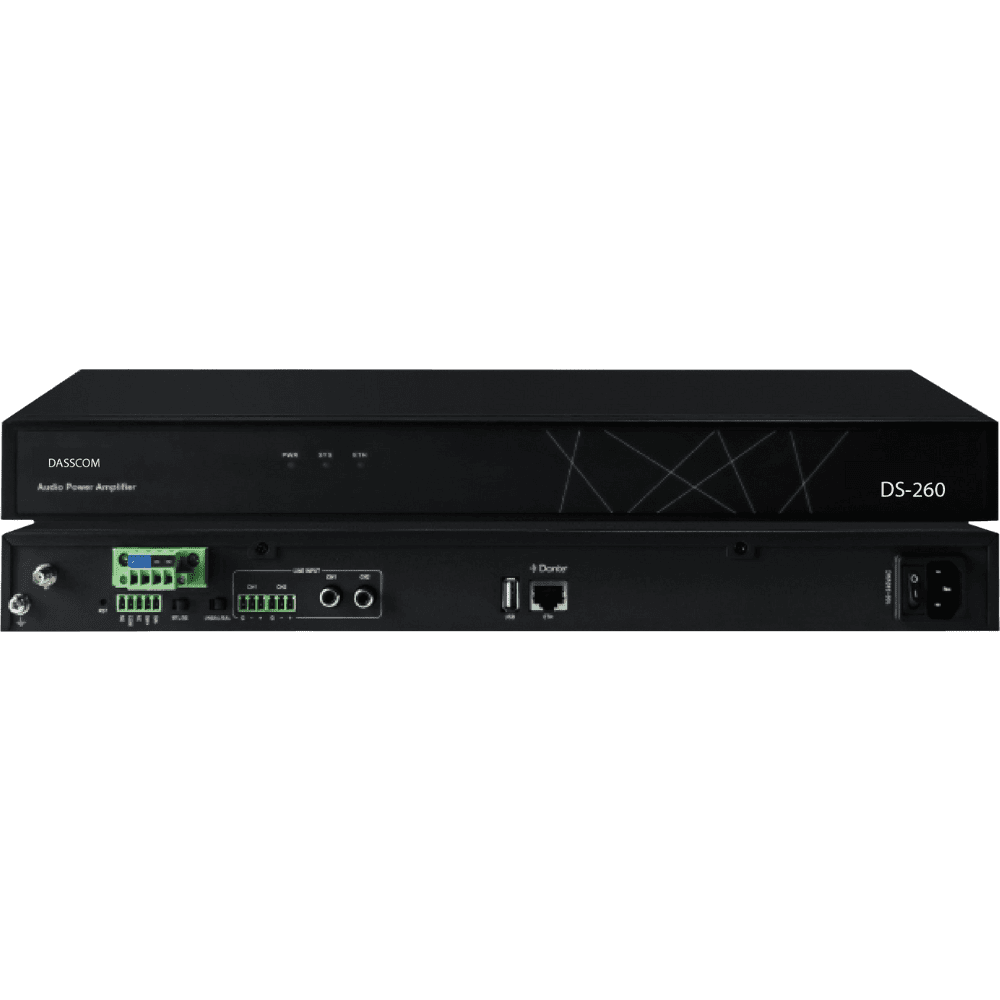

Dasscom DS-260 Network Amplifier
The DS260 Network Power Amplifier is designed for commercial audio applications, utilizing advanced Class-D technology to deliver crystal-clear sound and exceptional reliability.
The DS260 provides 2 x 60W or 1 x 120W (bridged) outputs, supporting constant voltage and constant impedance configurations. It features balanced/unbalanced line, Bluetooth, and network inputs, with seamless compatibility with SIP, Dante, and ONVIF-all without the need for additional modules, providing a feature-rich solution.
The DS260 is also equipped with a real-time adjustable mixer, an equalizer, and supports scheduled playback using USB storage devices.
Get Latest Price
Enquiry Now
The DS260 Network Power Amplifier is designed for commercial audio applications, utilizing advanced Class-D technology to deliver crystal-clear sound and exceptional reliability.
The DS260 provides 2 x 60W or 1 x 120W (bridged) outputs, supporting constant voltage and constant impedance configurations. It features balanced/unbalanced line, Bluetooth, and network inputs, with seamless compatibility with SIP, Dante, and ONVIF-all without the need for additional modules, providing a feature-rich solution.
The DS260 is also equipped with a real-time adjustable mixer, an equalizer, and supports scheduled playback using USB storage devices.
Specifications
| Amplifier Topology | Class-0 |
| Frequency Response | 20Hz ~ 20KHz ± 0.25dB |
| THD+N(@1kHz) | 0.05% |
| SNR | 85dB |
| Audio | |
| Audio Output Connectors | 1 x 4-Pin Phoenix Connector |
|
Audio Output Power |
SE(Single Ended):
@ 100V 2 x 60W @25V 2 x 60W @ 40(Min) 2 x 60W |
|
BTL(Bridge Tied Load): @ 1oov Bridge 1 x 120W @ 75V Bridge 1 x 120W @ 25V Bridge 1 x 120W @ 80(Min) Bridge 1 x 120W |
|
|
Audio Input Connectors |
Balanced: 2 x 3-Pin Phoenix Connectors |
| Unbalanced: 2 x RCA Jacks | |
| Bluetooth: 1 x IPX1 External 2.4G Antenna(BT 5.3 Compatible) | |
| Network: 1 x RJ45 Connector | |
| Audio Input Amplitude Range | 0.1Vrms ~ 2Vrms |
| SIP Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus |
| SIP Audio Stream | MP3 Sampling Rate 8–48KHz , Bit Rate 64- 320kbps, Mono or Ste |
| AC Power | |
| Power Input Voltage | 100 ~ 240VAC 50/60Hz |
| Power Input Current | 1.5A |
| Network | |
| Network | 10/100Mbps Adaptive |
|
Network Protocols |
SIP(RFC3261 ), HTTP, TCP/IP, SSL, DNS, SNTP, NTP,
RTSP,PTP, RTP, RTCP, TCP, UDP, MOTT, ICMP, DHCP, ARP, SSH |
| Dante | Supported |
| ONVIF | Supported |
| Interface | |
| USB | USB 2.0 |
| Dry Contact Output Connectors (Reserved) | 1 x 3-Pin Phoenix Connector |
| Switch Input Connectors (Reserved) | 1 x 2-Pin Phoenix Connector |
| Physical | |
| Chassis | Metal, Black, 1U Standard Chassis |
| Weight | 2.75kg |
| Dimensions | 17.32″ x 6.69″ x 1.73″ (440mm x 170mm x 44mm) |
| Environmental | |
| Operating Temperature | -20°C ~ 70°C (-4°F ~ 158°F) |
| Storage Temperature | -40°C ~ 70°C (-40°F ~ 158°F) |
| Approvals | |
|
General |
FCC SDOC (Part 15B), CE (EN 55032: 2015+A11: 2020 EN 55035: 2017+A11: 2020, EN IEC 61000-3-2: 2019+A1: 2021, EN IEC 61000-3-3: 2013+A1: 2019+A2:
2021, ETSI EN 301 489-1 V2.2.3 (2019-11), ETSI EN 301 489-17 V3.3.1 (2024-09), ETSI EN 300 328 V2.2.2 (2019-07), EN IEC 62368-1: 2020+A11: 2020) |
