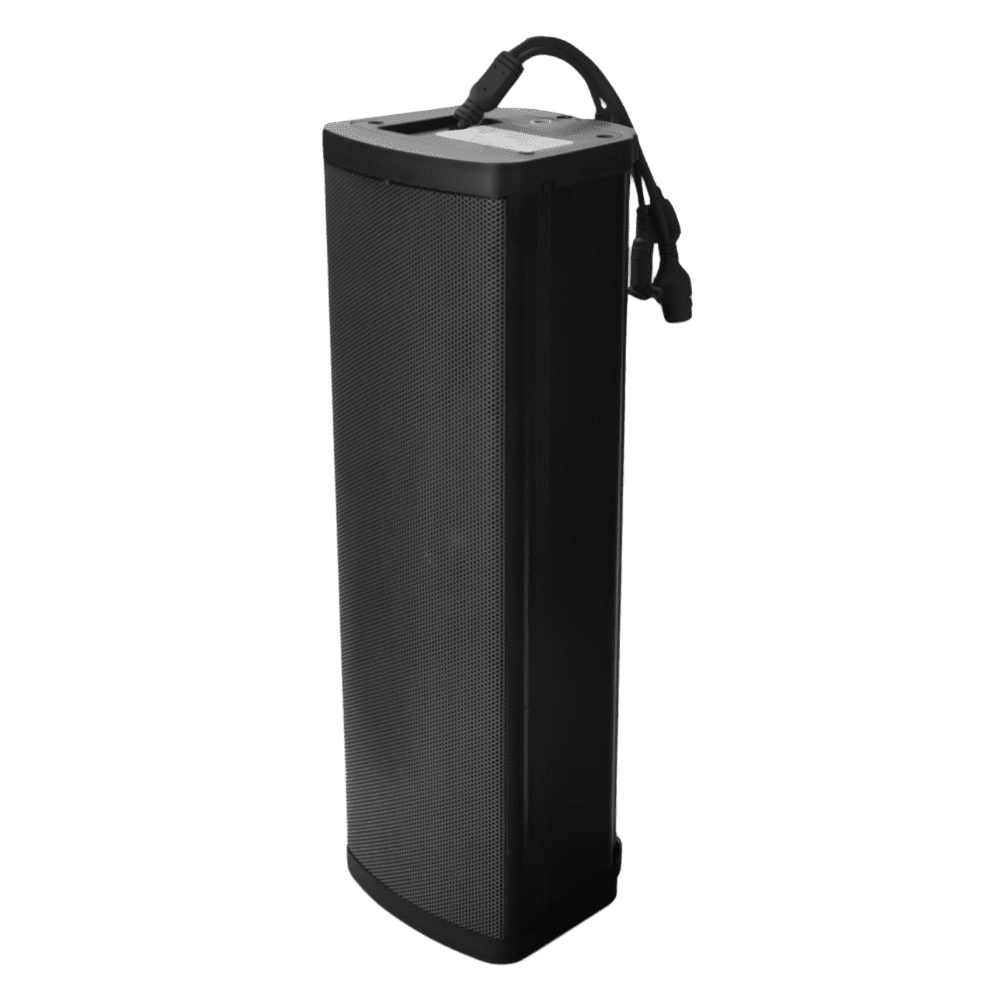

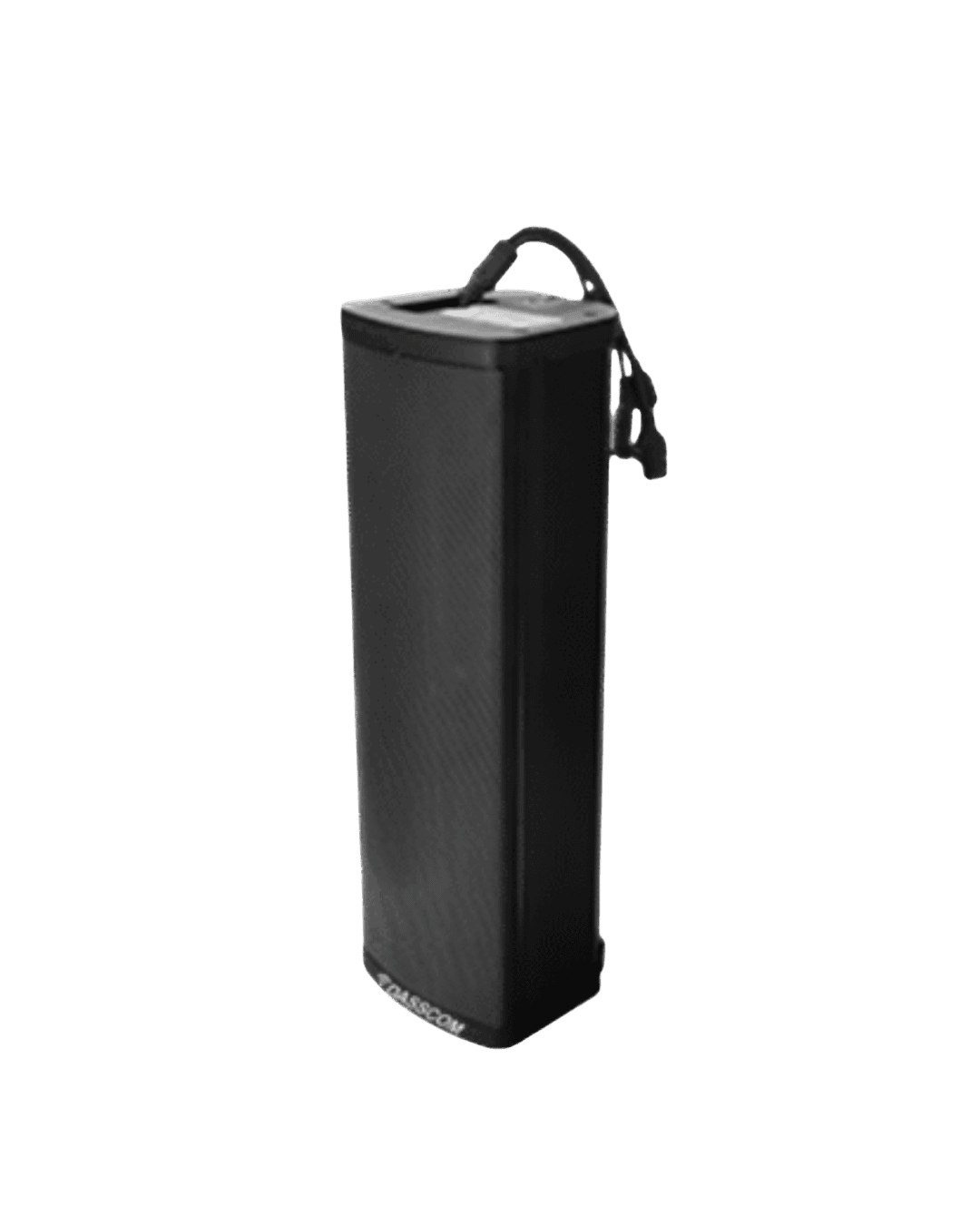

DASSCOM DS-30CL Network Column Speaker
Dasscom Network Column Speaker, POE Tower Type, 30 Watt HD Speaker, White Color. Network Column Speaker is an all-in-one speaker system connected with a single network cable
Get Latest Price
Enquiry Now
DASSCOM DS-30CL Network Column Speaker is a high-performance SIP-enabled column speaker used for SIP paging, notification/tone broadcasting, and streamed high- definition music playback. high sensitivity and capacity, giving clear and rich saturation, whether SIP-based propaganda broadcasting or background music playing.also supports dry contact signal digital input and various sensors integration. Meanwhile, PoE is supported too.
DASSCOM DS-30CL Network Column Speaker is a triune-speaker driver units design, two low- frequency woofer driver unit, and one high-frequency tweeter driver unit. It provides premium sound quality, enhances the audience experience.
Standard PoE (IEEE 802.3at) support, simple and easy instal lation with a single network cable. External power supply can be used if required.
Standard SIP protocol supported can be integrated with Dasscom IP Audio Center or other third-party SIP servers. SIP paging using wideband G.722 codec, which provides crystal clear HD voice.
| Brand |
|---|
| Parameter | Details |
| Model | DS-30CL |
| Type | Network Column Speaker |
| Power Output | 30W RMS |
| Speaker Configuration | Multi-driver column array |
| Network Interface | RJ45 Ethernet (10/100 Mbps) |
| Protocol Support | SIP (Session Initiation Protocol), RTP |
| Audio Codec | G.711, G.722 (HD Voice) |
| Amplifier | Built-in Class D amplifier |
| Power Supply | PoE (IEEE 802.3at) or 24V DC external |
| Frequency Response | 150 Hz – 15 kHz |
| SPL (Max) | ≥ 105 dB @ 1m |
| Material | Aluminum enclosure with powder coating |
| Color | Grey |
| Ingress Protection | IP65 rated for outdoor use |
| Mounting | Wall-mount bracket included |
| Operating Temperature | -20°C to +60°C |
| Dimensions (HxWxD) | Approx. 600mm x 120mm x 100mm |
| Weight | ~4.5 kg |
| Use Cases | Schools, hospitals, worship spaces, corridors, outdoor zones |
| Integration | Compatible with Dasscom IP Audio Center and third-party SIP servers |
| Additional Features | Auto provisioning, remote volume control, HD MP3 playback |
