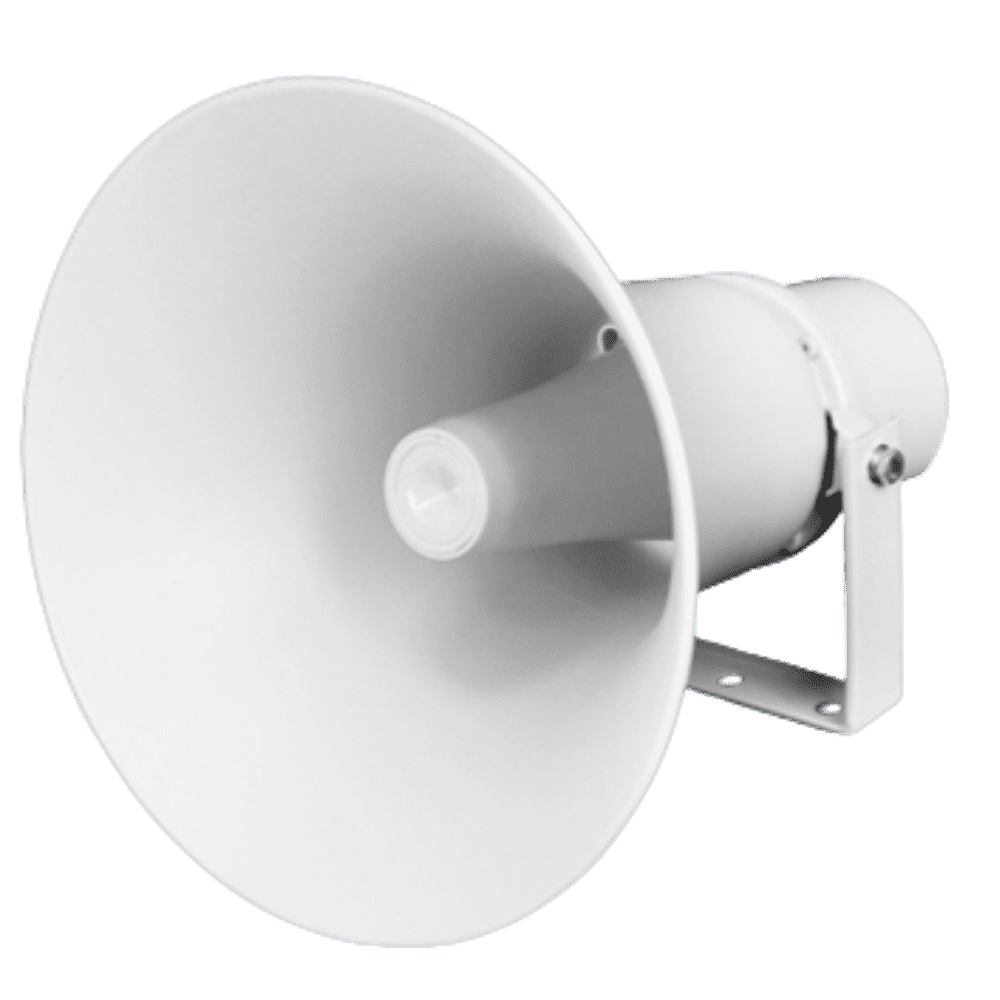

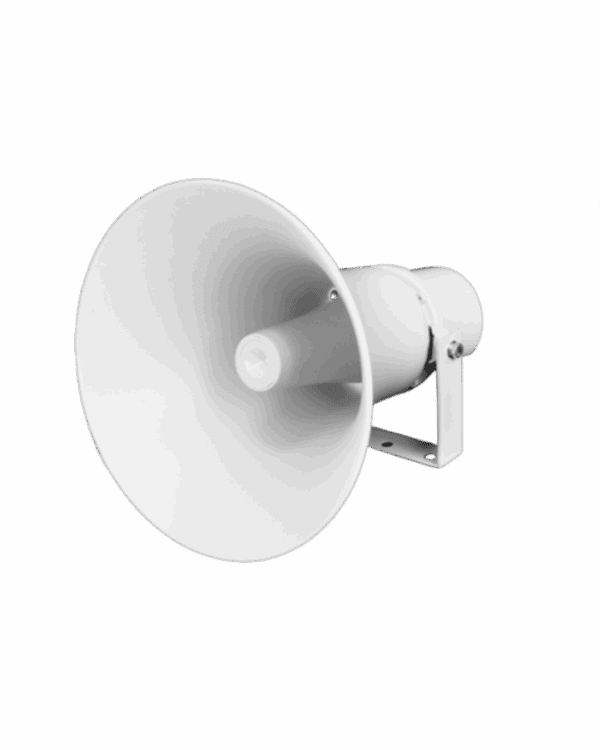

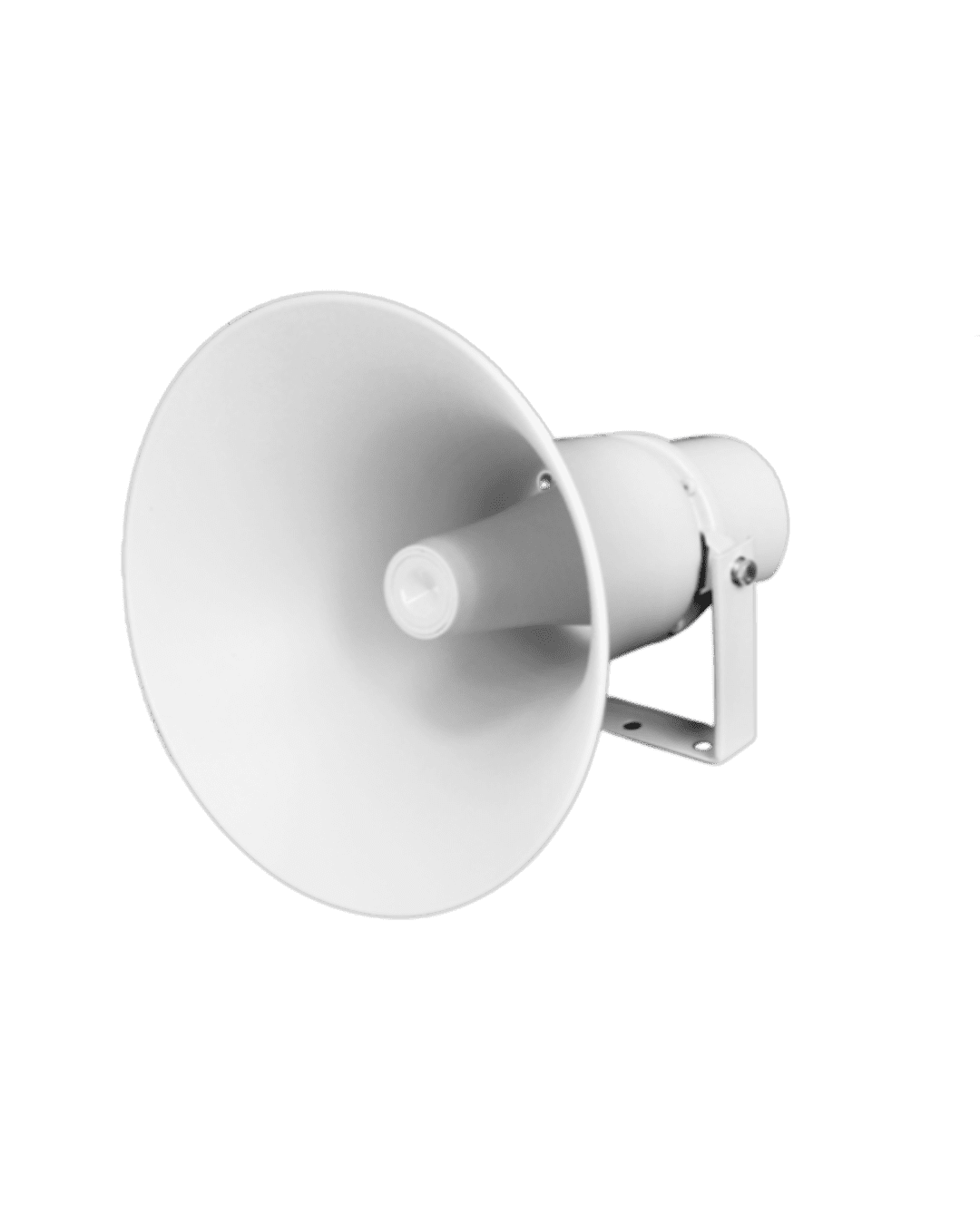

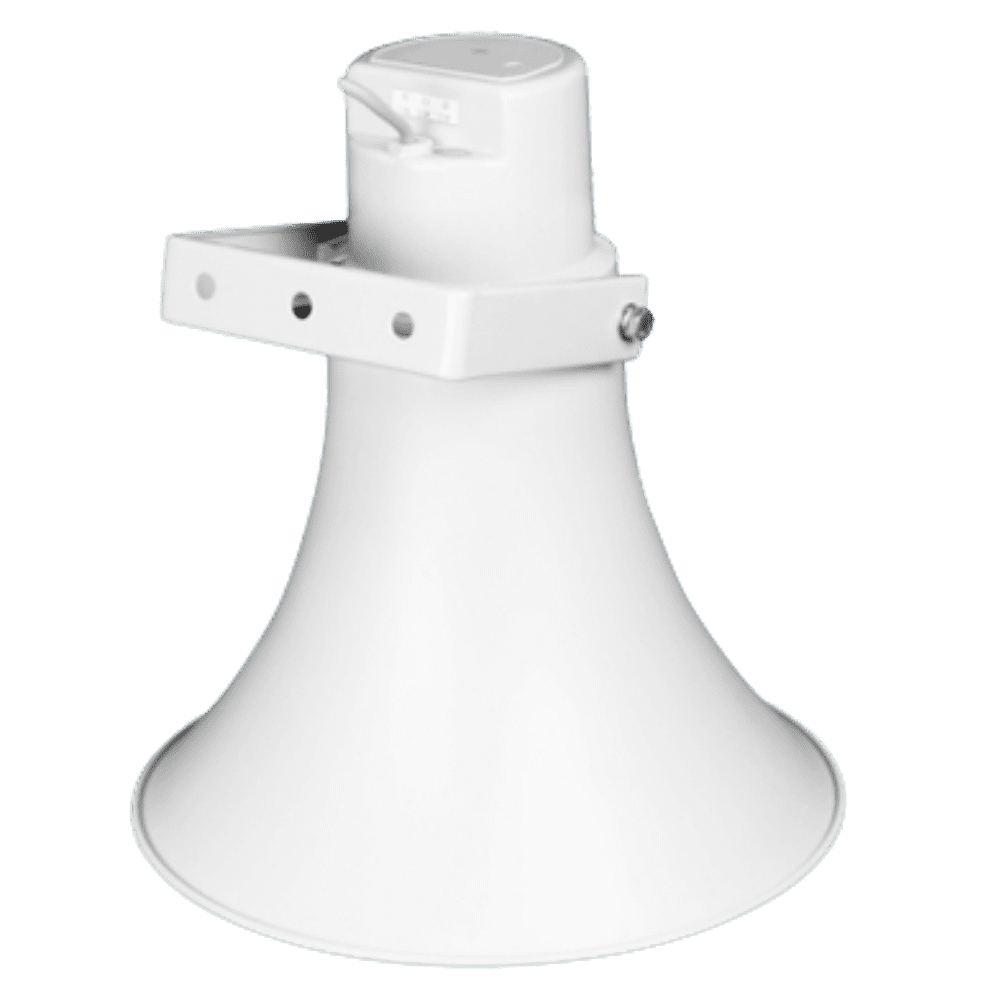

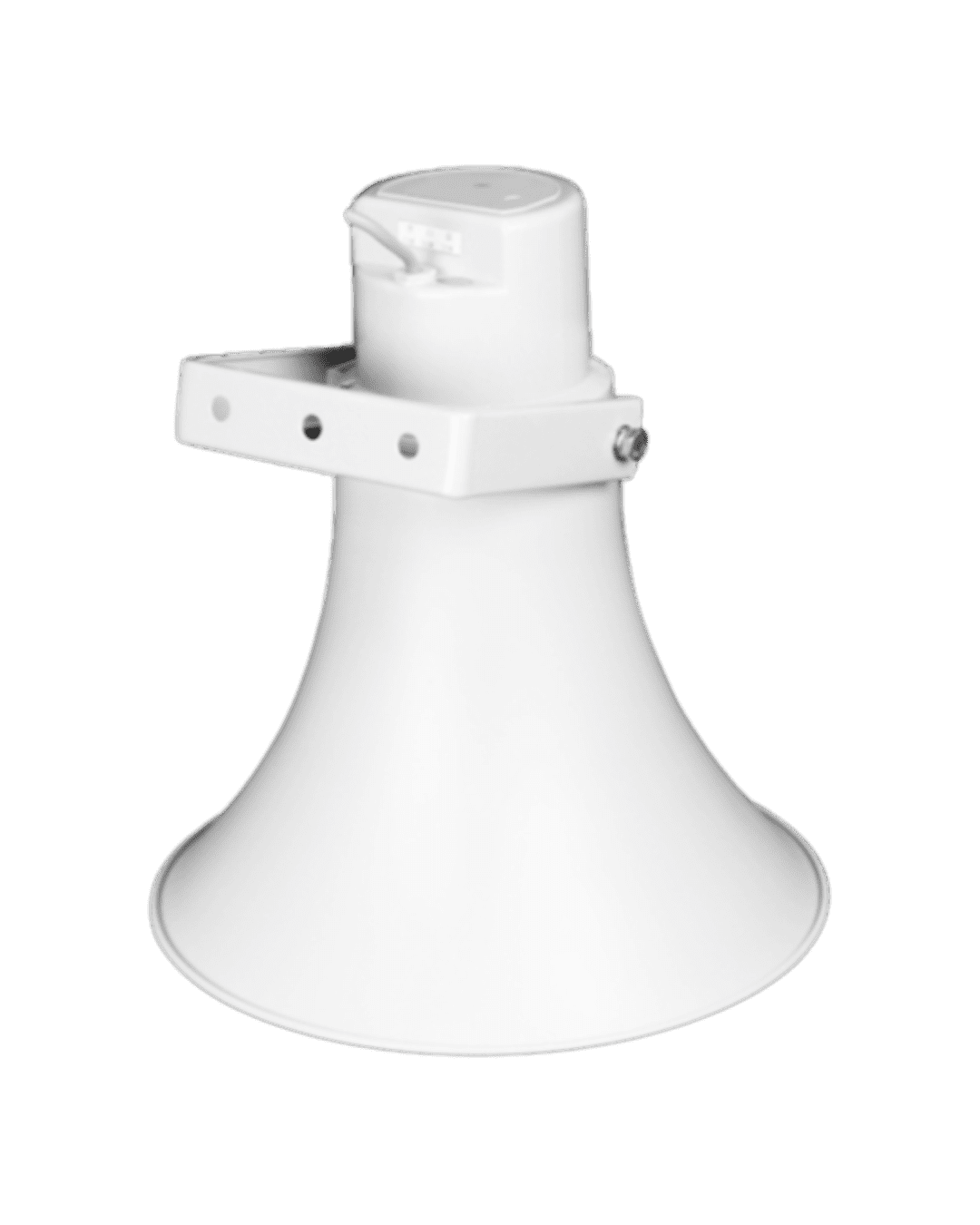

DASSCOM DS-60H Network Horn Speaker
Dasscom Network Horn Speaker, 60 Watt HD Speaker, White Color. Network Column Speaker is an all-in-one speaker system connected with a single network cable, external power supply required
Get Latest Price
Enquiry Now
Dasscom DS-60H is a SIP enabled horn speaker which provides exceptionally clear and intelligible voice for SIP paging, notification/tone broadcasting and streamed background music. It is suitable to be deployed in outdoor and other open spaces for public notifications and public safety purposes
FEATURES:
- Built-in 60W amplifier, 380Hz to 6.5KHz frequency range and 133dB max sound pressure level
With IP66 protection rating and well thermal durability - External power supply (DC 24V 3A).
- Supports 48K OPUS high-quality audio encoding.
- Compatible with VoIP, SIP devices (IPPBX, IP Phone) via SIP.
- Compatible with IP camera VMS via ONVIF.
- Supports three lines SIP accounts, in which users may register the endpoint in more than one
system for achieving different functionality purposes. - Support HTTP API for alarm in transmit
| Brand |
|---|
| Category | Specification |
| Speaker Component | 2” midrange driver unit |
| Sensitivity | 105dB @ 1m/1W |
| Max SPL | 117dB |
| Amplifier | Built-in 60W Class D amplifier |
| Frequency Range | 400Hz – 8KHz |
| Coverage Pattern | 50° Horizontal × 50° Vertical, effective distance up to 70m |
| Audio Codecs | G.722 (wideband), G.711 A-law/U-law, G.729 |
| Streaming Support | MP3 (8–48KHz sampling rate, 64–320kbps bitrate, mono/stereo) |
| Network Interface | RJ45, 10BASE-T/100BASE-TX |
| Protocols Supported | SIP, HTTP/HTTPS, RTSP, RTMP, RTP/RTCP, TCP/UDP, MQTT, SSH, FTP/SFTP, NTP, ONVIF |
| Configuration | Web interface or auto-provisioning via Dasscom IP Audio Center |
| Memory | 128MB RAM, 256MB Flash |
| Power Input | PoE IEEE 802.3at or DC 24V/2A external supply |
| Casing Material | Surface-treated 1060 aluminum |
| IP Rating | IP65 (dust and water resistant) |
| Color | Grey |
| Weight | Approx. 2.68 kg |
| Dimensions | Ø270 × 260 mm |
| Mounting Method | Wall or pole mount |
| Operating Temp. | -40°C to +70°C |
| Storage Temp. | -40°C to +70°C |
| Humidity | 10%–95% RH, non-condensing |
| Installation Use Case | Outdoor environments: schools, hospitals, warehouses, transport hubs, etc. |
| Provisioning Method | Auto provisioning or manual setup |
| Special Features | IP address announcement (press 3s), factory reset (press 10s) |
