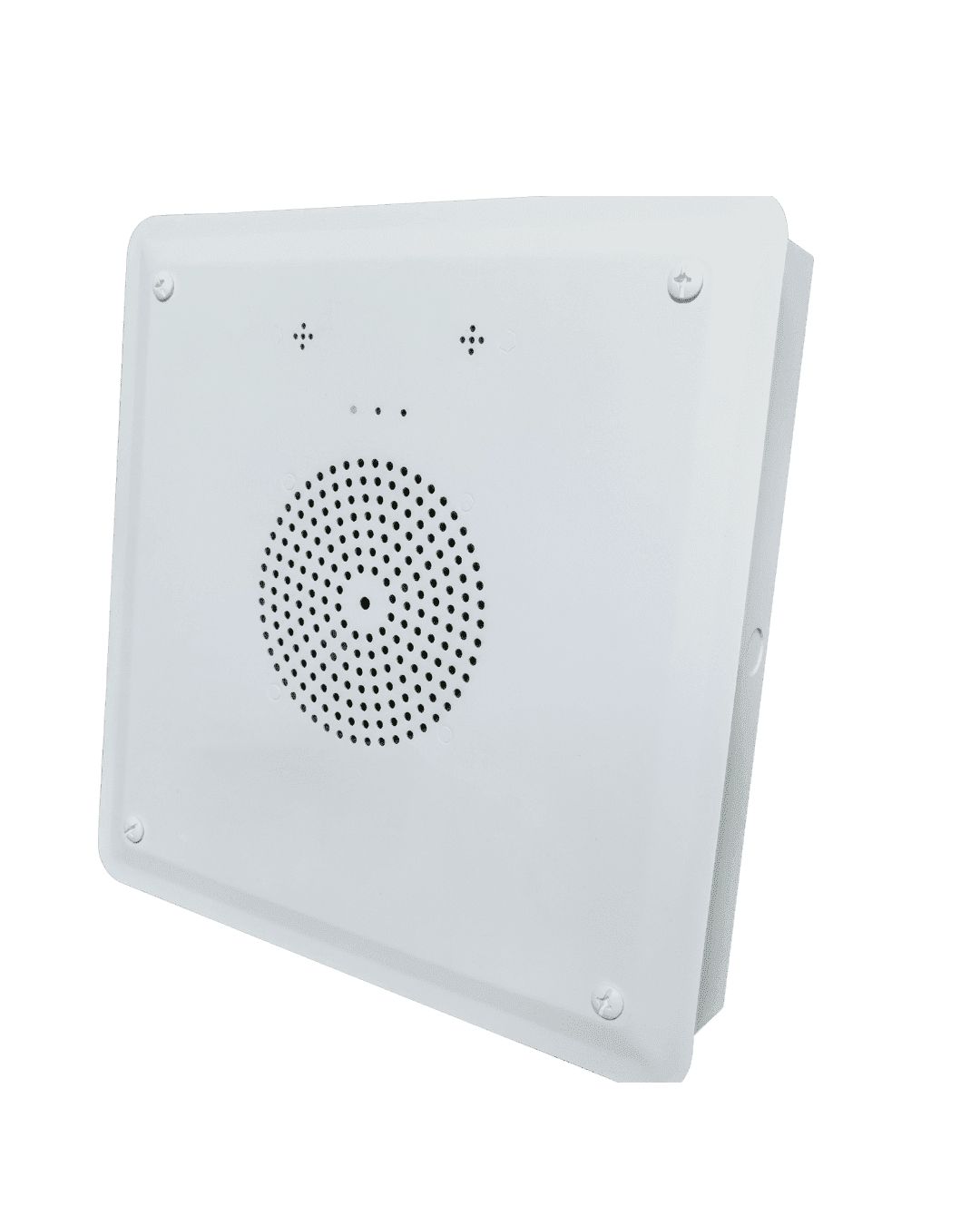

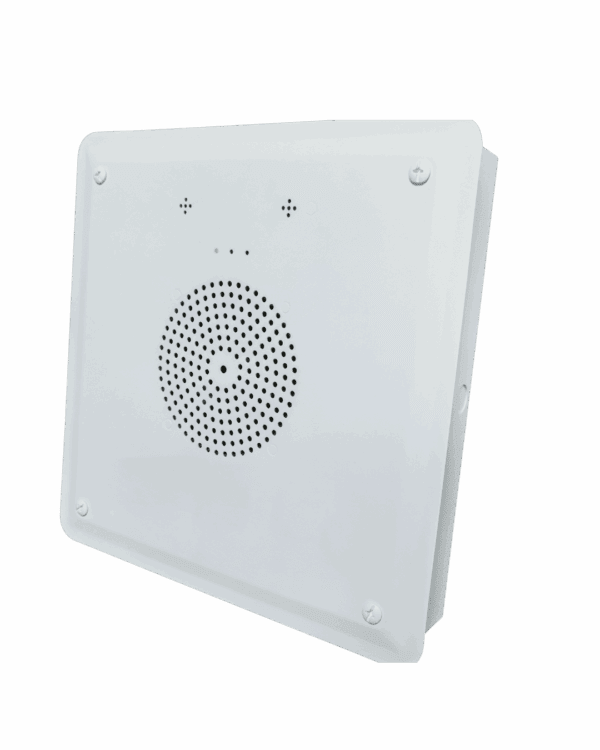

DASSCOM DS-Q10 Network Cabinet Speaker
Dasscom Network Cabinet Speaker DS-Q10 POE wall Mount, 10 Watt HD Speaker, White Color. 2 way communication, inbuilt Microphone, LED status, Metal Cabinet.
Get Latest Price
Enquiry Now
Network Square Speaker DS-10Q Basic is a comprehensive, high-performance SIP-enabled speaker. With the built-in microphone, the operators can delivery two-way communication at anytime, anywhere. It is perfect to use in scenarios like classrooms libraries, offices. Plus, it provides both surface-mounted and flush-mounted enclosures to choose from regarding different application scenarios.
Audio:
320Kbps superior quality MP3music files and streamed media music supported. Click to play music, immediate announcement, intercom, schedule music and Paging are all supported
SIP Integration:
Standard SIP protocol implemented, you can register theDS-10Q into any third-party SIP server such as IPPBX system or PA system
Microphone:
Integrated microphone allows for half-duplex or full-duplex paging based on software platform used. When used with the push button, calls to a predetermined extension or trigger a task can be initiated from the room with the speaker
Peripheral Integration:
With the support of peripheral integration, the DS-10 can connect with strobes, call buttons, volume controllers, external LED/LCD monitors, door magnetism
| Brand |
|---|
| Parameter | Details |
| Model | DS-Q10 / SQ-10 Basic |
| Speaker Type | SIP-enabled square cabinet speaker |
| Audio Output | Crystal-clear voice delivery; optimized for speech intelligibility |
| Microphone | Built-in microphone for two-way communication |
| Installation Options | Surface-mounted and flush-mounted |
| Power Supply | POE (Power over Ethernet) |
| Network Protocol | SIP (Session Initiation Protocol) |
| Use Cases | Classrooms, libraries, offices, public address, emergency communication |
| Integration | Compatible with Dasscom X10 SIP paging gateway |
| Functionality | Supports announcements, intercom, background music |
| Design | Sleek square housing; compact and unobtrusive |
| Color | Typically white or grey (may vary by distributor) |
| Environment Suitability | Indoor use in institutional and commercial spaces |
| Audio Codec Support | G.711, G.722 (standard SIP codecs) |
| Network Interface | RJ45 Ethernet port |
| Mounting Accessories | Optional brackets and flush-mount kits available |
| Dimensions | Approx. 180mm x 180mm x 60mm (varies slightly by batch) |
| Weight | ~1.2 kg |
| Compliance | CE, RoHS; check for WPC/EN54 applicability per deployment |
