Dasscom M-20 Network Paging Console Phone

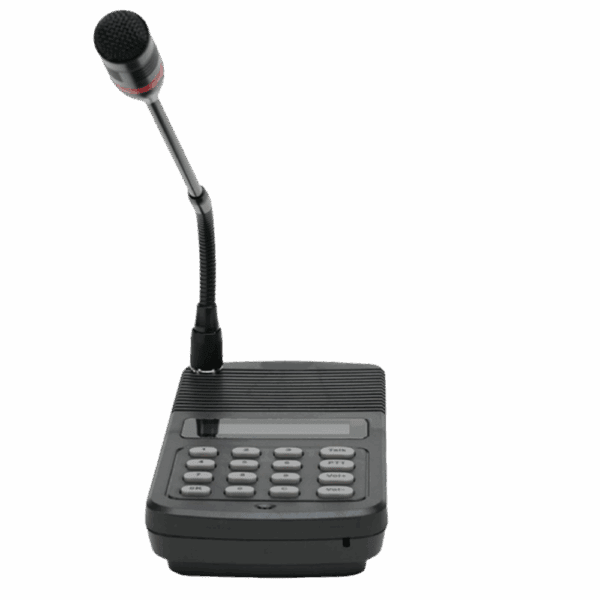

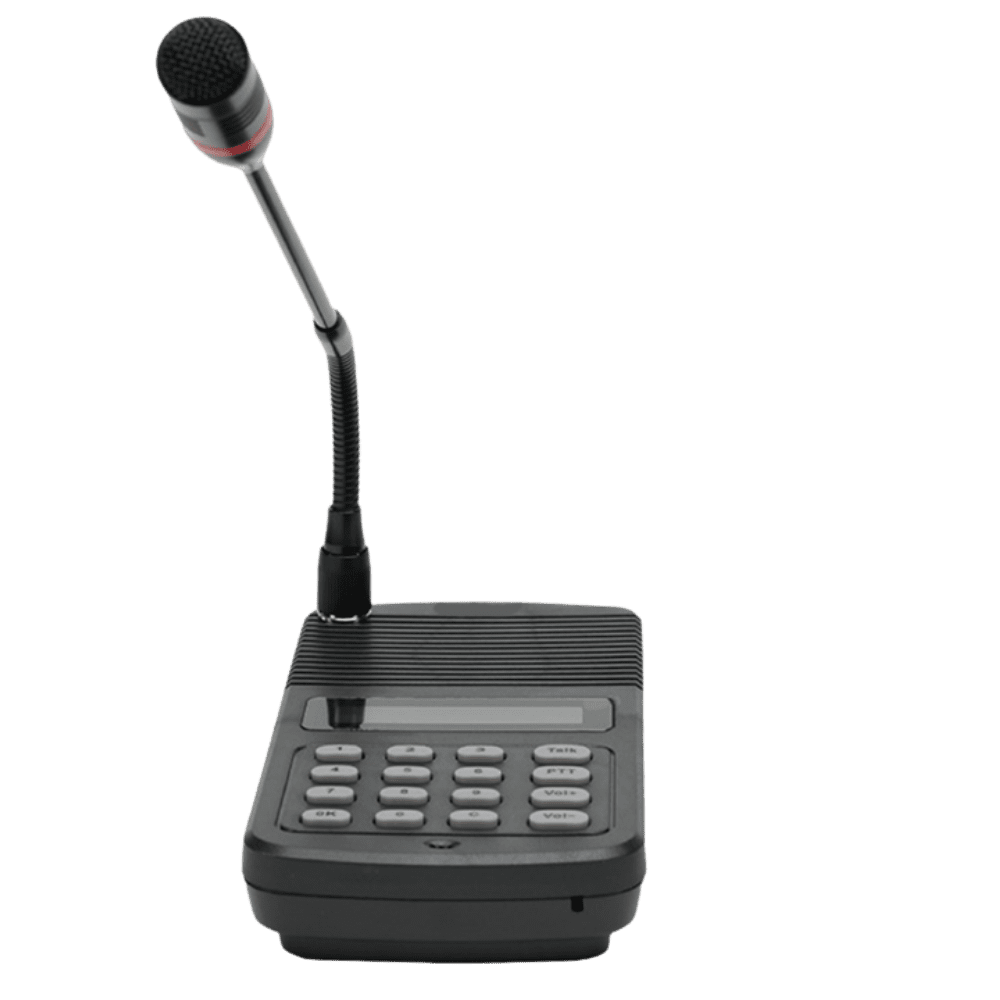

DASSCOM NETWORK PAGING CONSOLE PHONE M-20 with built-in speaker and goosneck mic. Connecting the M-20 to an IP network (LAN or WAN)permits hands-free conversation of high sound quality to be made between M-20 and IP Paging Microphone .With a numerical keypad, you can dialany number or make a quick call to the target IP paging microphone or Paging Console Phone
Get Latest Price
Enquiry Now
DASSCOM NETWORK PAGING CONSOLE PHONE M-20 with built-in speaker and goosneck mic. Connecting the M-20 to an IP network (LAN or WAN)permits hands-free conversation of high sound quality to be made between M-20 and IP Paging Microphone .With a numerical keypad, you can dialany number or make a quick call to the target IP paging microphone or Paging Console Phone
M-20
| Brand |
|---|
POWER PARAMETERS
Power Supply: DC12V/2A
Standby Power Consumption:≤5W
Audio & Video Parameters
Audio Codec:MP2, MP3, PCM, ADPCM
Audio Sampling & Bit Rate: 8kHz~22.05kHz, 16bit,
Built-in Speaker:3W ,4Ω
S/N:>80dB
Frequency Response:25Hz~10KHz
Network Parameters
Network I/F:10BASE-T/100BASE-TX RJ45
Network Protocol -TCP/IP、UDP、SIP、ARP、
Configuration Method:Web Interface or DevConfig
Mechanical & Environment Properties
Display Screen:LCD 16 Char x 2
Mounting Method:Desktop or Wall-mounted
Installation Environment: Dry Indoor Locations Only
Operatiing Temperature:0*C~+45*C(32*F~113*F)
Operating Humidity:≤90% RH non-condensing
Colour; Black
Housing Material:Plastic
Product Dimensions:95.7×195.9x 50.6mm
Product Weight:0.3kg
Product Warranty:2 Years Limited
ACCESSORIES
1×Power Adaptor(DC12V/2A) , 1×Quick Installation Guide , 3×Plastic Expansion Sleeve(F7) , 3×Half round head self tapping screw(M4*25) , 1×Terminal(3.96-5P)
