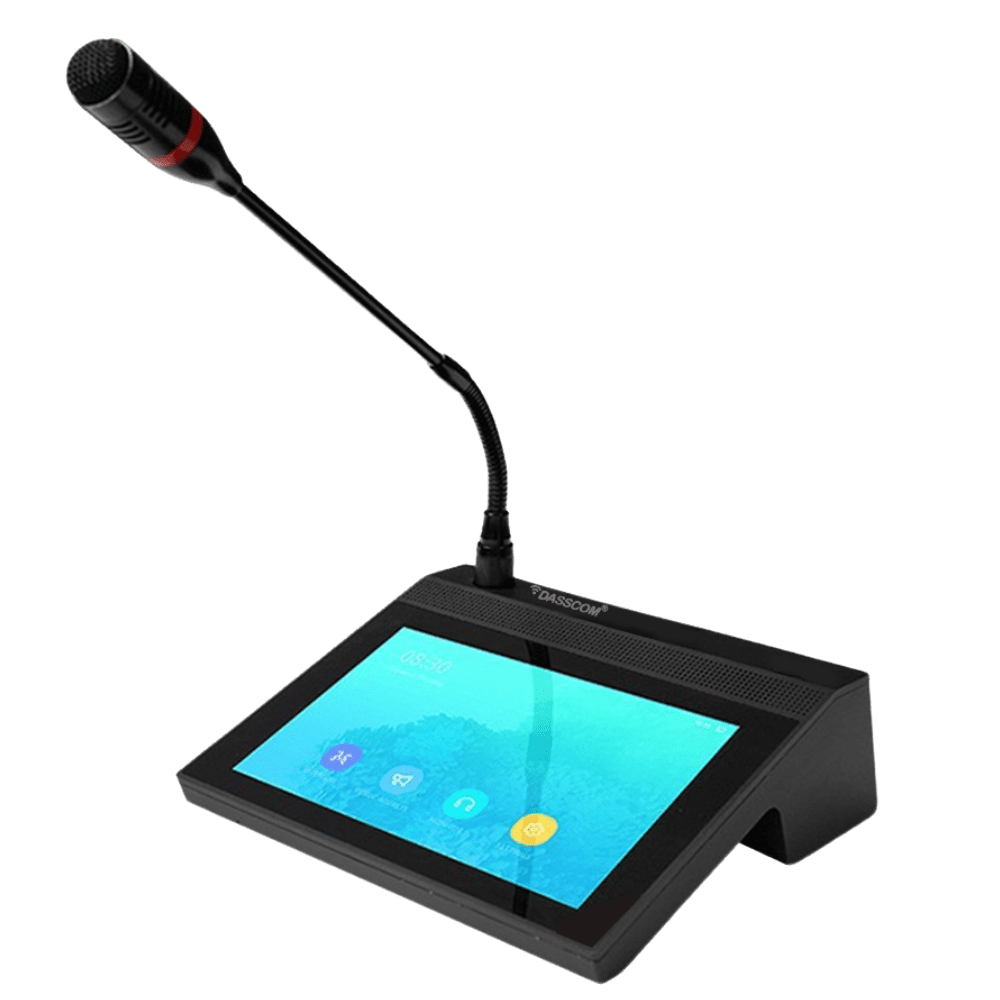

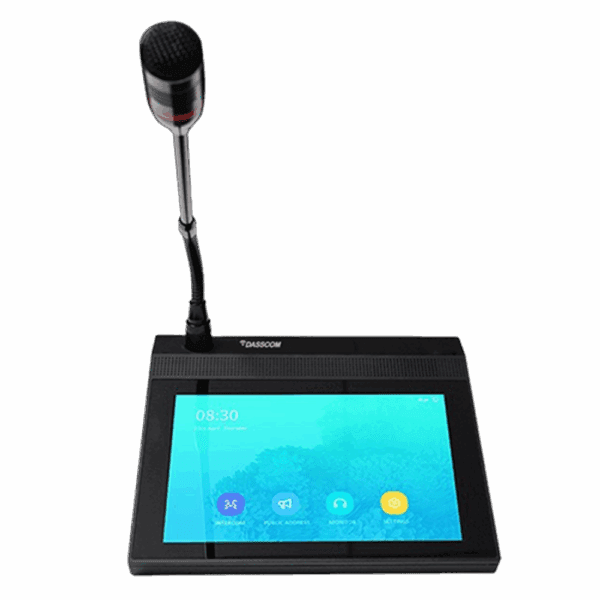

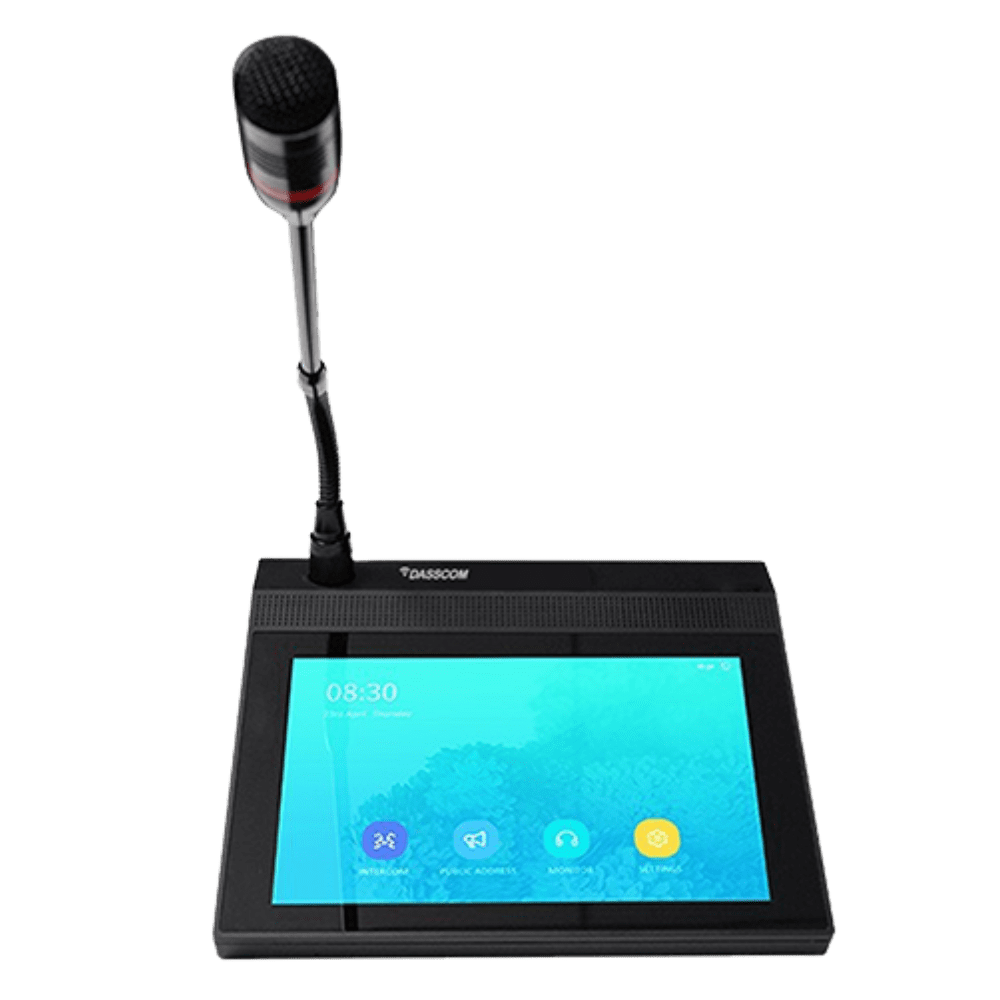

Dasscom M-30 Network Paging Console Phone
DASSCOM NETWORK PAGING CONSOLE PHONE M-30 is a network high-fidelity audio intercom paging microphone based on TCP/IP, SIP, UDP and other transmission protocols. It can realize intercom, paging and control operations.It has the characteristics of high stability of traditional paging stations, stable andreliable operation and low failure rate. Signal digital transmission design, intelligent control as the core
Get Latest Price
Enquiry Now
DASSCOM NETWORK PAGING CONSOLE PHONE M-30 is a network high-fidelity audio intercom paging microphone based on TCP/IP, SIP, UDP and other transmission protocols. It can realize intercom, paging and control operations.It has the characteristics of high stability of traditional paging stations, stable andreliable operation and low failure rate. Signal digital transmission design, intelligent control as the coreDASSCOM NETWORK PAGING CONSOLE PHONE M-30 is a network high-fidelity audio intercom paging microphone based on TCP/IP, SIP, UDP and other transmission protocols.It can realize intercom, paging and control operations.It has the characteristics of high stability of traditional paging stations, stable andreliable operation and low failure rate. Signal digital transmission design, intelligent control as the core
M-30
| Brand |
|---|
POWER PARAMETERS
Power Supply:DC12V ,1.5A
Standby Power Consumption:≤10W
Audio & Video Parameters
Audio Codec:MP3, PCM, ADPCM
Audio Sampling & Bit Rate:8kHz~44.1kHz, 16bit, 8kbps~320kbps
Built-in Speaker:1.5W ,4Ω
S/N:＞82dB
Frequency Response:40Hz-18KHz
Network Parameters
Network I/F:10BASE-T/100BASE-TX RJ45
Network Protocol; TCP/IP、UDP、ARP、ICMP
Configuration Method:Web Interface or DevConfig Tool
Mechanical & Environment Properties
Display Screen:7 inch(1280*800); capacitive touch screen;
CPU:4-core ARM
RAM:1 GB
Memory:4GB
Mounting Method:Desktop
Installation Environment:Dry Indoor Locations Only
Operatiing Temperature:0*C~+45*C(32*F~113*F)
Operating Humidity:≤90% RH non-condensing
Front Panel Material:Steel
Housing Material:ABS
Product Dimensions:183.9×169.0x58.4mm
Product Weight:0.75KG
Product Warranty:2 years Limited
