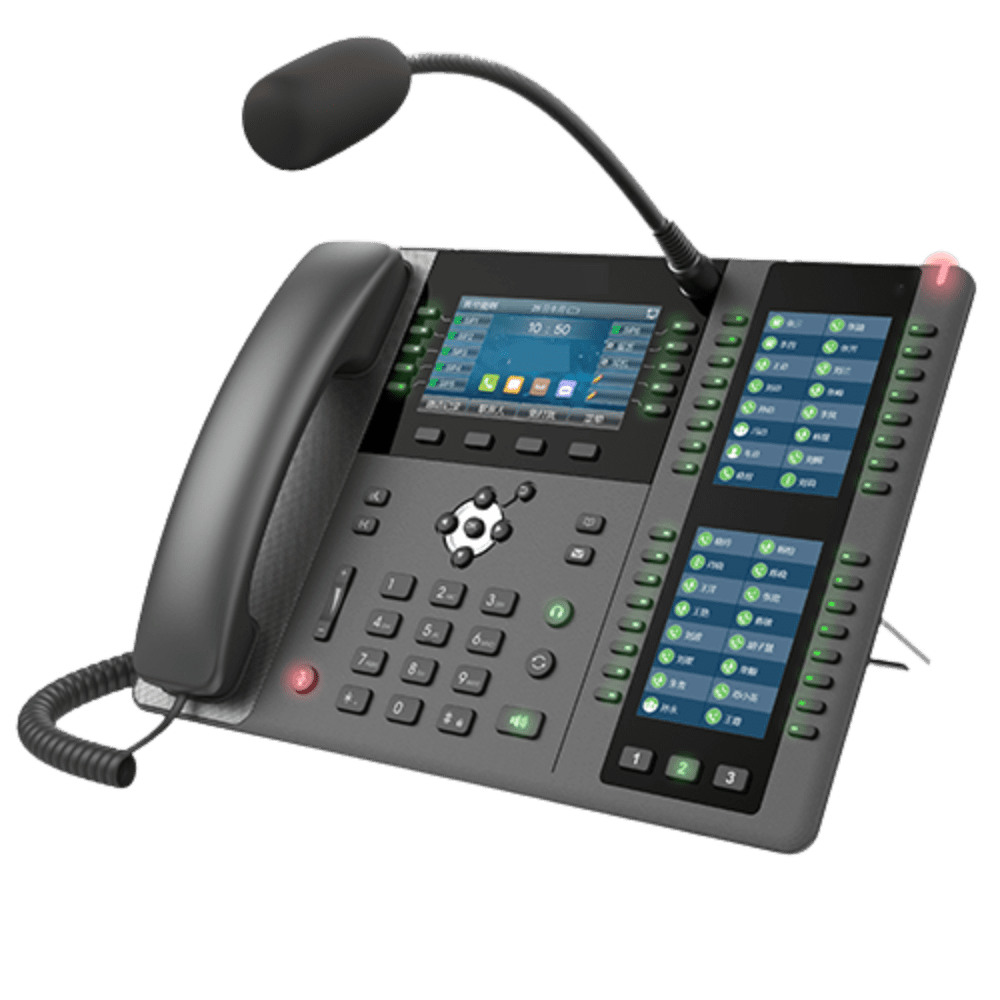

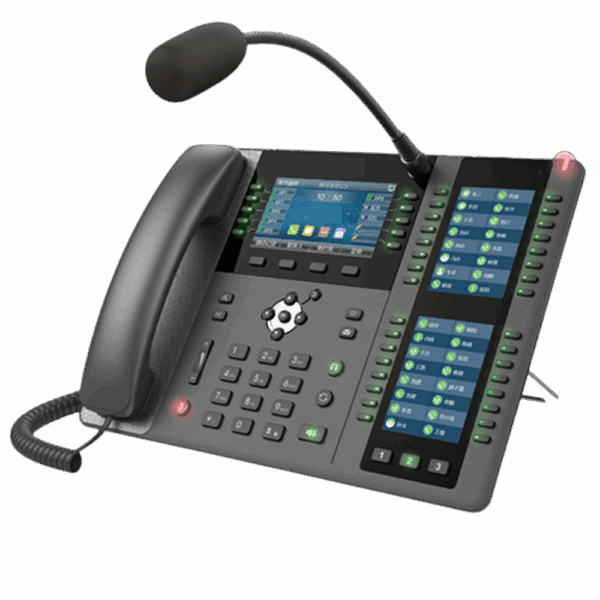

Dasscom M-50 visualization paging console phone

M-50

Brand	DASSCOM

CALL FEATURES

√ Call out / Answer / Reject

√ Mute / Unmute (Microphone)

√ Call Hold / Resume

√ Call Waiting

√ Intercom

√ Caller ID Display

√ Speed Dial

√ Anonymous Call (Hide Caller ID)

√ Call Forwarding (Always/Busy/ No Answer)

√ Call Transfer (Attended/Unattended)

√ Call Parking/Pick-up (Depending on server)

√ Redial

√ Do-Not-Disturb

√ Auto-Answering

√ Voice Message (On server)

√ 3-way Conference

√ Hot Line

√ Hot desking



PHONE FEATURES

√ Local Phonebook (2000 entries)

√ Remote Phonebook (XML/LDAP, 2000 entries)

√ Call logs (In/out/missed, 1000 entries)

√ Black/White List Call Filtering

√ Screen saver

√ Voice Message Waiting Indication (VMWI)

√ Programmable DSS/Soft keys

√ Network Time Synchronization

√ Built-in Bluetooth 2.1: Support Bluetooth headset

√ Support Wi-Fi Dongle

√ Support Plantronics wireless headset (Through Plantronics APD-80 EHS Cable)

√ Support Jabra wireless headset (Through Fanvil EHS20 EHS Cable)

√ Support Recoabra wireless headset (Through Fanvil EHS20 EHS Cable)

√ Support Recording (Through Flash Drive or Server Recording ) Action

NETWORKING

√ Physical: 10/100/1000 Mbps Ethernet, dual bridged port for PC bypass

√ IP Mode:IPv4/IPv6/IPv4&IPv6

√ IP Configuration: Static / DHCP / PPPoE

√ Network Access Control: 802.1x

√ VPN: L2TP / OpenVPN

√ VLAN

√ LLDP

√ QoS

√ RTCP-XR(RFC3611),VQ-RTCPXR(RFC6035

PROTOCOLS

√ SIP2.0 over UDP/TCP/TLS

√ RTP/RTCP/SRTP

√ STUN

√ DHCP

√ IPv6

√ LLDP

√ PPPoE

√ 802.1x

√ L2TP

√ OpenVPN

√ SNTP

√ FTP/TFTP

√ HTTP/HTTPS

√ TR-069

√AES128 & AES2

GENERIC

√ 20 SIP Lines

√ HD Voice

√ Support receiving Video call

√ POE Enabled

√ 3 LCDs (Main + DSS)

√ Handset / Hands-free / Headset mode

√ Intelligent DSS Keys

√ 20 SIP Lines

√ HD Voice

√ Support receiving Video call

√ POE Enabled

√ 3 LCDs (Main + DSS)

√ Handset / Hands-free / Headset mode

√ Intelligent DSS Keys

VIDEO

√  Video codec: H.264

√ Video call resolution: QCIF / CIF / VG

PHYSICAL SPECIFICATIONS

√ Main LCD x1: 4.3 inch (480×272) color-screen LCD

√ DSS Key-mapping LCD x2: 3.5 inch (320×480) color-screen LCD

√ Keypad: 77 keys, including 4 Soft-keys

6 Function keys (Hold, Call forward, Phonebook, MWI, Headset, Redial)

4 Navigation keys

1 OK key

1 Return key

12 Standard Phone Digits keys

3 Volume Control keys, Up/Down/Mute(Microphone) 1 Hands-free key

42 DSS Keys with tri-color LED 3 Page-Switch (PS) key

√ HD Handset (RJ9) x1

√ Standard RJ9 Handset Wire x1

√ 1.5M CAT5 Ethernet Cable x1

√ Gooseneck Microphone x1

√ Directional microphone

√ Frequency response: 20Hz~20KHz

√ SNR: ≥60 dB.1kHz at 1 Pa

√ Back Rack x1

√ Gooseneck MIC Port x1: Gooseneck Microphone x1

√ RJ45 Port x2: Network x1, PC x1 (Bridged to Network)

√ USB2.0 Port x1: Standard A, Connect with Wi-Fi USB dongle or Flash Driver

√ DC Power Input: 5V/2A

√ Power Consumption (PoE): 2.6~ 9W

√ Power Consumption (Adapter): 2.4~8W

√ Working Temperature: 0~45[)

√ Working Humidity: 10~95%

√ Installation: Desktop Stand

√ Color: Dark gray [) Device Dimensions

√ Desktop Stand (Angles 1): 309 x 214 x 187mm

√ Desktop Stand (Angles 2): 309 x 226 x 167mm

√ Gift Box Dimensions: 323 x 301 x 71mm

The above specifications may be updated in the future without prior notice.

All hardware/software/physical features should be based on the final shipped products.
