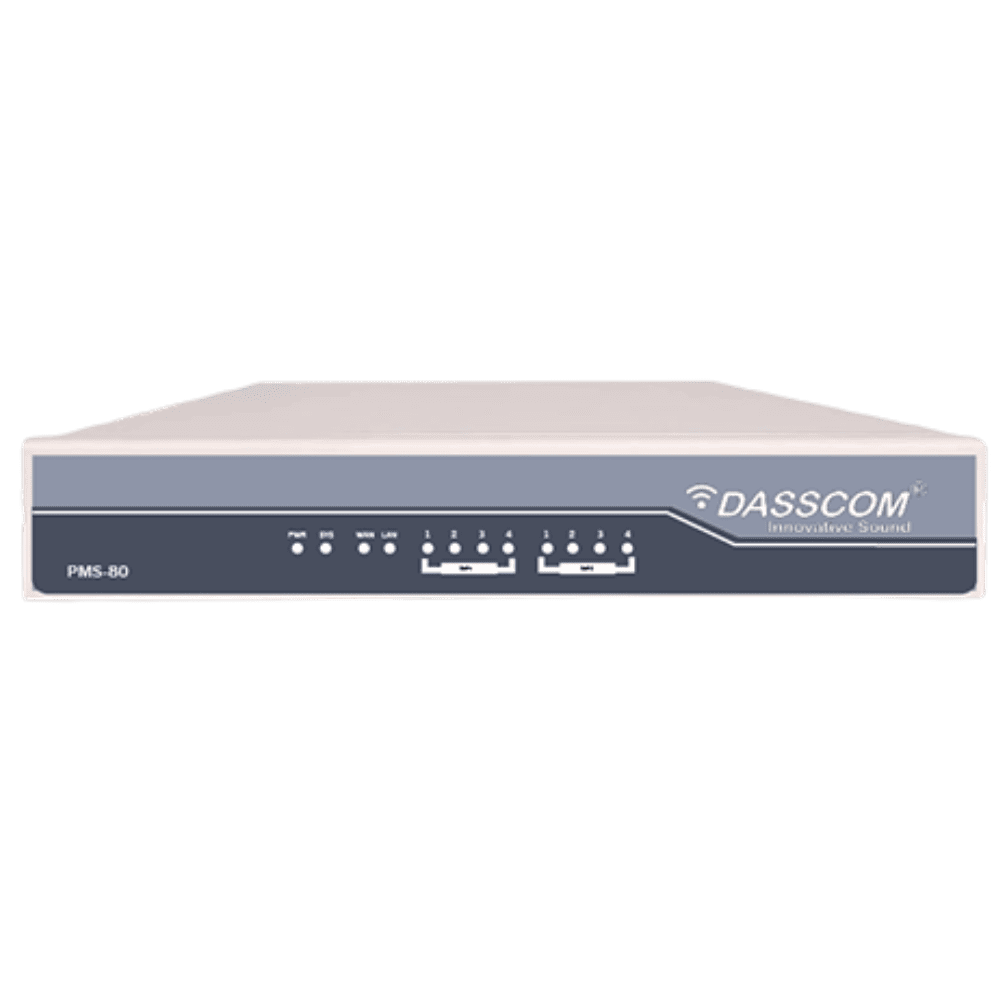

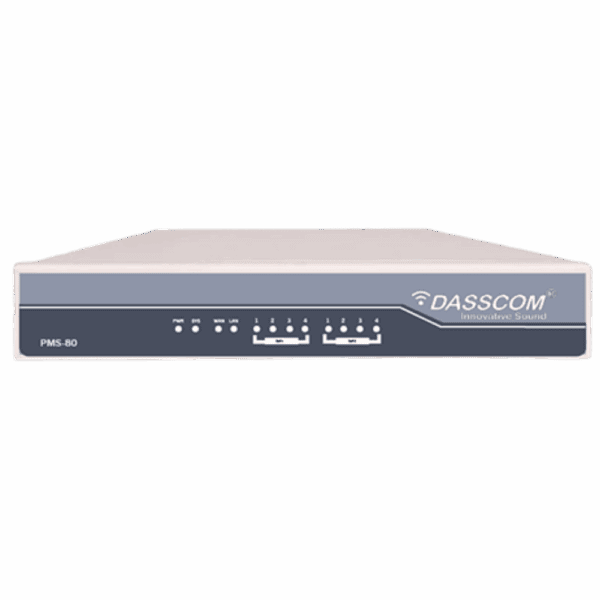

Dasscom PMS-80 IP PA System
PMS-80 IP PA System is a compact, easy-to-deploy public address solution designed for small to medium-sized businesses. Supporting up to 80 SIP speakers, it ensures efficient communication across various environments such as offices, schools, and commercial spaces. PMS-80 features mixed networking compatibility with both SIP speakers and VoIP phones, enabling flexible deployment. Powered by the advanced 4.0 software system, it offers streamlined configuration, intuitive management, and improved user experience. With its modern design and powerful performance, PMS-80 meets all essential PA system requirements, including announcements, background music, and emergency alerts, making it a reliable choice for growing enterprises.
Get Latest Price
Enquiry Now
PMS-80 IP PA System is a compact, easy-to-deploy public address solution designed for small to medium-sized businesses. Supporting up to 80 SIP speakers, it ensures efficient communication across various environments such as offices, schools, and commercial spaces. PMS-80 features mixed networking compatibility with both SIP speakers and VoIP phones, enabling flexible deployment. Powered by the advanced 4.0 software system, it offers streamlined configuration, intuitive management, and improved user experience. With its modern design and powerful performance, PMS-80 meets all essential PA system requirements, including announcements, background music, and emergency alerts, making it a reliable choice for growing enterprises.
PMS-80
| Brand |
|---|
Software Specifications
PA Features
PA Zone Groups
Background Music Task
Scheduling Call Transfer Call Waiting Speed Dial
IVR (Multi-layer
Voicemail Wakeup Call Do Not Disturb
Time Conditions Paging & Intercom Caller ID
Video Call Conference Call
Protocols & Codecs
SIP(RFC3261), IAX2 DTMF(RFC4733, SIPINFO,In-Band)
Transport Protocols:UDP,TCP,TLS,SRTP
Network Protocols:IPv4, IPv6, VLAN, DHCP, PPPoE, DDNS, NTP, SNTP, TFTP, SSH, HTTPS, LDAP
Video Codecs:VP8,H.264,H.263+,H.263,H.261
Audio Codecs:Opus, G.722, G.711(a-law,u-law), G.729, G.726, GSM, SPEEX,AMR,AMR-WB
System Capacity
80 Users
80 Zone Announcement 400 hrs Recording (Internal Storage)
Unlimited SIP/IMS Trunks (Max)
1TB USB Expansion Storage Maximum 30 Paging Groups
Feature Highlights
IP Phone Auto Provisioning (PNP & Quick Register Code) SIP Proxy (NAT Traversal)
Open API Interface for Seconda Development to Connect with 3rd Systems
Multilingual Interface: Simplifed Chinese, Traditional Chinese, English, Spanish, Czech, Korean Multilingual System Voice: Chinese, English, Spanish, French and other 24 languages
Multi-level User Administration
Admin user: All Privileges
Operator user: Extensions, , CDR, recordings, etc. Operator panel user
Security
Firewall based on iptables
Geo-IP (Security policy based on IP address geographical locations) Intrusion auto detection and prevention
IP Black/White List Extension Permit IP
Data Backup and Recovery
Network Features
Network (WAN): Static IP, DHCP, PPPoE VPN：PPTP，OpenVPN，
Static Routing DHCP Server
VLAN（WAN&LAN Interface） Virtual IP
SIP Proxy (NAT Traversal)
Hardware Specifications
Specifications
CPU-RM 4 Core
RAM-1GB
Storage（SD Card)-8G SD Card (Industrial grade)
USB (Extended Storage Supported)-1 Por（t File system format：FAT16, FAT32, EXTFAT, NTFS, EXT3, E (T)
Ethernet Interface-WAN，LAN（10/100Mbps）
Console Port-1 Por（t Rate 115200）
Reset Key-Support
Power-C 12V-1A
