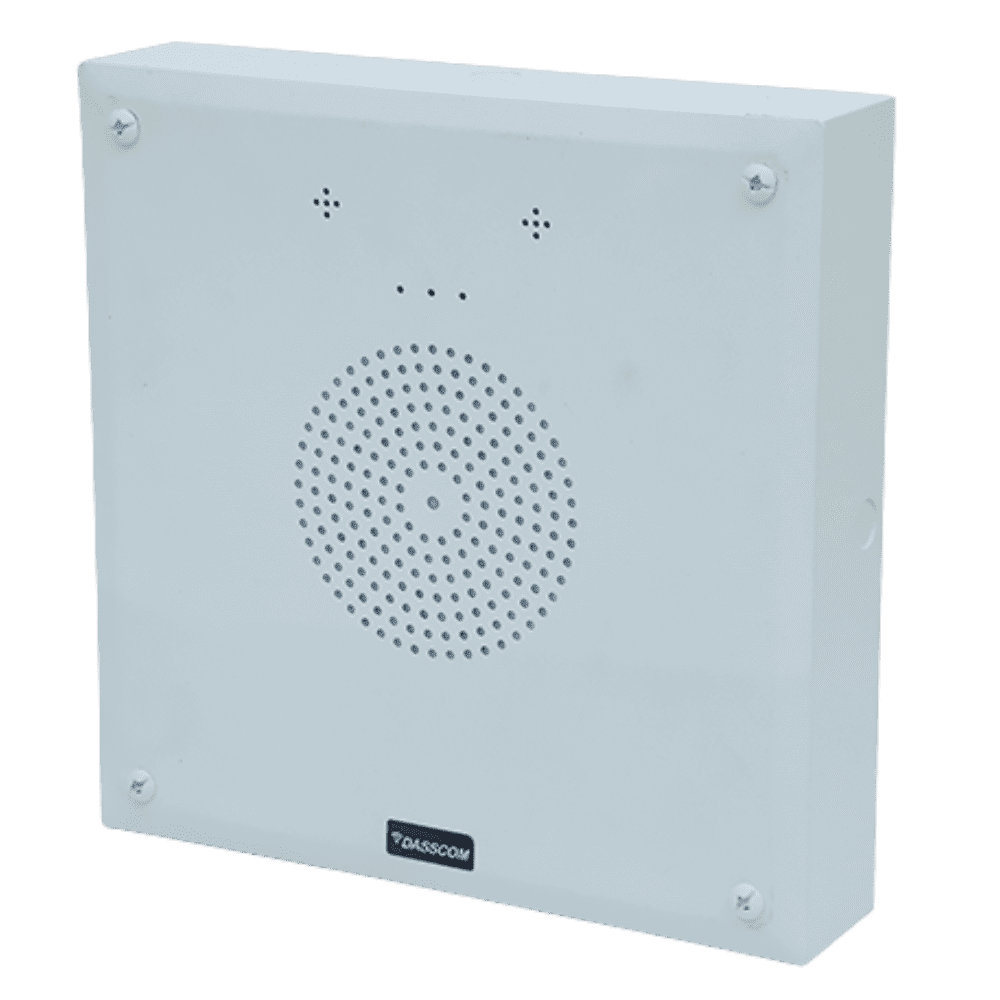

Dasscom SQ-10 Network Square Speaker

The Dasscom SQ-10 Basic is a high-performance, SIP-enabled square speaker designed for clear, reliable two-way communication. Equipped with a built-in microphone, it allows operators to initiate real-time voice interaction, making it ideal for classrooms, libraries, offices, and similar environments. Its sleek design supports both surface-mounted and flush-mounted installation options, offering flexibility for various architectural needs. With crystal-clear audio output and robust network compatibility, the SQ-10 Basic enhances public address and intercom systems with ease. Whether for announcements or emergency communication, this speaker delivers dependable performance and seamless integration into your IP-based communication infrastructure.

Get Latest Price

Enquiry Now

Description
Specification

SKU: SQ-10 Category: IP Speakers Tags: Dasscom SQ-10 Network Square Speaker, IP Wall Speaker, Network Speaker, Network Wall Speaker, SIP Wall Speaker, SQ-10

SQ-10

Brand	DASSCOM

Specification

Speaker;
Speaker size – 45 inch
Avarage Sensitivity – 91dB/1m/1w
Frequency Response – 70Hz-20KHz
THD – <01%
Max SPL at 1m (passive)- 101dB
Amplifier- Single- Chanel Class D Topology
Rated Power – 810W
Coverage Pattern -90 H 50 V 30m

AUDIO;
Network Audio Types- G.722,G.711 A-law,G.711 U-law,Opus

Network;
Ethernet – IEEE 8023 10/100 Base-T
POE – IEEE 8023 AT Complaint
Supported Protocols- SIP(RFC3261), HTTP,TCP/IP,SSL,DNS,SNTP,NTP,RTSP,RTP,RTCP,TCP,UDP,MQTT,ICMP,DHCP,
IP Addressing – dhcp/static

Mechanical Properties

Memory – 128MB RAM,256MB Flash
AC Power Input – POE+ and Externel 24VDC
Casing Meterial – Cold Rolled Steel finished in textured white epoxy
Mounting method – Wall Mounted
Color – White
Weight-3.15kg(695lb)
Dimensions – Surface- mounted- 280*280*65mm
Dimensions – Flush- mounted – 300*300*65mm
SYS Light Status- On/off/Flash
PWR Light Status – on/off/Flash
RST Key – Press and Hold for 3 Seconds to announce IP address. Press and Hold for 10 Seconds to reset device to factory default.

Environmental
Installation Environmental -Indoor
Operating Temperature – -20C-50C(-4F-122F)
Storage Temperature – 40C-70C(-40F-158F)
Humidity – 10%-95% RH Non – condensing

Approvals- EN 55032;2015,EN 55035;2017,EN 61000-3-2;2014, EN 61000-3-3;2013,EN 62368-1;2014+A11;2017,FCC Part 15B Class A

Warranty Coverage

Warranty period- 1 year limited
