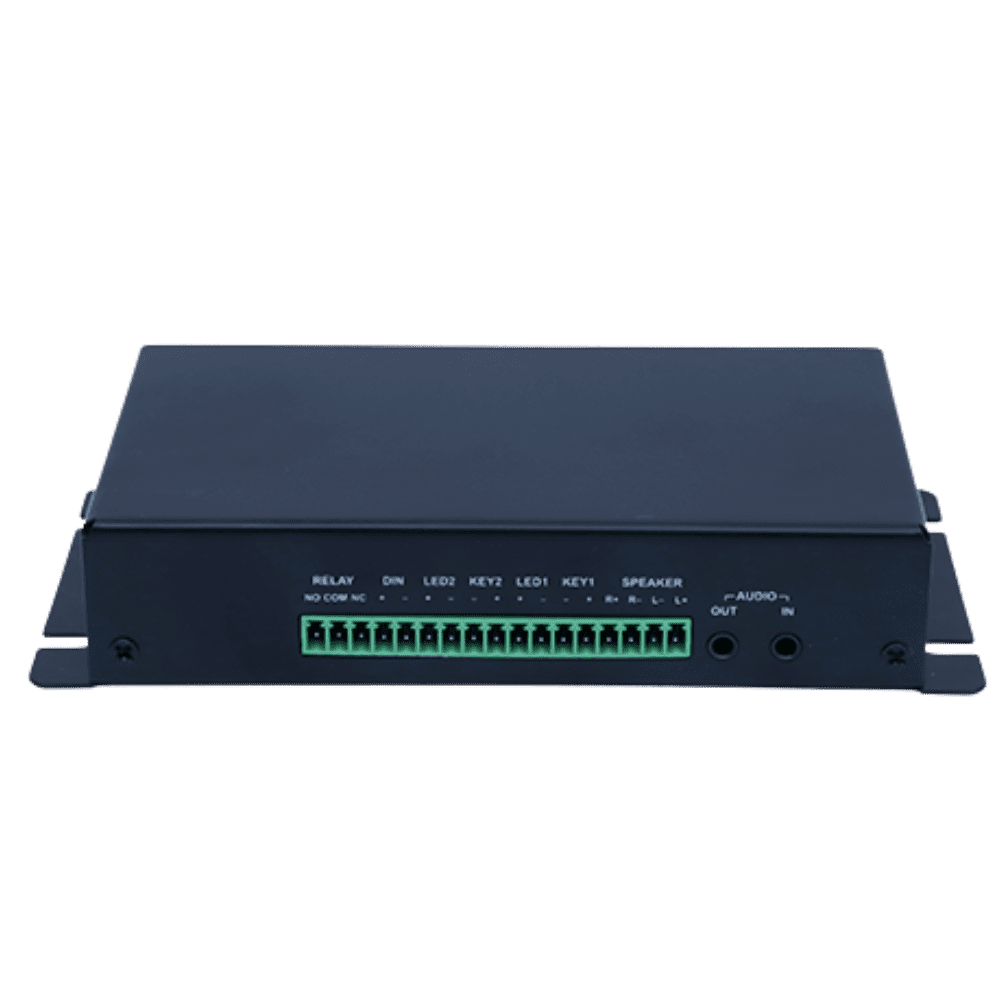

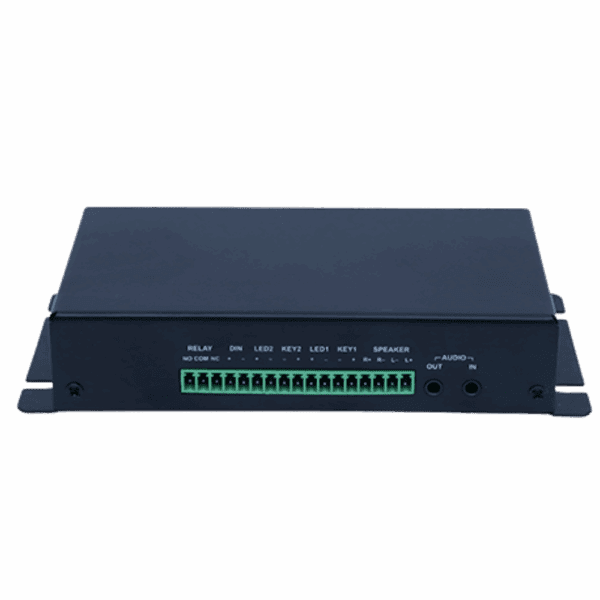

Dasscom X10 SIP Paging Gateway
The Dasscom X10 SIP Paging Gateway is a high-performance, SIP-enabled IP audio device designed for industrial and public safety applications. It seamlessly converts voice streams from SIP paging or IP PBX systems into analog audio, supporting functions like background music, intercom, and public announcements. With its compact design, open SIP protocol support, and versatile configuration options, the X10 can be adapted into various intercom or paging speaker solutions. Ideal for smart cities and critical infrastructure, it enhances communication efficiency, promotes information sharing, and supports public safety efforts, making it an essential component in modern IP-based audio systems.
Get Latest Price
Enquiry Now
The Dasscom X10 SIP Paging Gateway is a high-performance, SIP-enabled IP audio device designed for industrial and public safety applications. It seamlessly converts voice streams from SIP paging or IP PBX systems into analog audio, supporting functions like background music, intercom, and public announcements. With its compact design, open SIP protocol support, and versatile configuration options, the X10 can be adapted into various intercom or paging speaker solutions. Ideal for smart cities and critical infrastructure, it enhances communication efficiency, promotes information sharing, and supports public safety efforts, making it an essential component in modern IP-based audio systems.
X-10
| Brand |
|---|
| Audio Interfaces | X10 |
| Amplifier Output | 2x10W, 8Ω (4 pins) |
| Headset Output | 3.5mm Jack |
| Microphone | 3.5mm Jack |
| Other Interfaces | |
| Power Input | DC 12V-3A Jack |
| Volume Control | VOL+ and VOL-, press both to announce IP address |
| Ethernet | ETH0+ETH1, 10/100Mbps, ETH0 with PoE IEEE 802.3at enabled |
| Call button | Support 2 call buttons (switch button) |
| Call button LED | Support 2 call button LED indicators |
| Digital level output | N/A |
| Digital level input | 5V Max |
| Dry Contact | NO/NC contacts, max AC 125V-1A, DC 60V-1A |
| Audio | |
| Audio Codecs | G.722, G.711 A-law, G.711 U-law, Opus |
| Music Streaming | MP3 sampling rate 8 – 48KHz, bit rate 64 – 320kbps, mono or Stereo |
| Protocols | |
|
Protocols |
SIP(RFC3261), HTTP, TCP/IP, SSL, DNS, SNTP, NTP, RTSP, RTP, RTCP, TCP, UDP, MQTT, ICMP, DHCP, ARP, SSH |
| Administration | |
| Configuration | Web interface or auto provisioning server |
| Provision method | MQTT IoT Protocol |
| Mechanical Properties | |
| Processor | ARM Cortex-A35 |
| RAM | 128MB DDR3 |
| Storage | 128MB SLC Flash |
| Environment | |
| Working Environment | -20°C ~ +50°C |
| Storage Environment | -40°C ~ +75°C |
| Humidity | 10% ~ 95%RH Non-condensing |
| Other | |
| Dimension | 153*76*33mm |
| Weight | 303g |
| RST Key | Press and hold for 5 seconds to reset to factory defaults |
| LED Indicator | PWR power indicator, SYS system indicator |
