DXP-6100HP ENTRY LEVEL IP PHONE
DXP-6100HP entry-level IP phone with dual SIP accounts, HD speakerphone, PoE support, IPv4/IPv6, and wide IP PBX compatibility for office use.
₹3,330.00 Excluding Tax
Get Latest Price
Enquiry Now
Download Data Sheet
-
IP Audio Server, IP-based Public Address System
Dasscom IAS-L100 IP Audio Center
The Dasscom IAS-L100 IP Audio Center is a powerful, unified IP audio management server that supports paging, intercom, background music, video linkage, and SIP communication. With auto provisioning, advanced scheduling, HD audio, and unlimited zone control, it is ideal for smart cities, industries, campuses, hospitals, and security environments.
SKU: Dasscom IAS-L100 -
IP Audio Server, IP-based Public Address System
DASSCOM PMS-50 –IP Paging Server
The DASSCOM PMS-50 is a next-generation IP paging server supporting up to 50 SIP endpoints. It enables centralized audio broadcasting, live paging, scheduled music, and emergency alerts. With Software Platform 4.0 and mixed SIP/VoIP integration, it provides flexible, scalable communication for offices, retail, schools, and healthcare facilities.
SKU: PMS-50 Paging Server

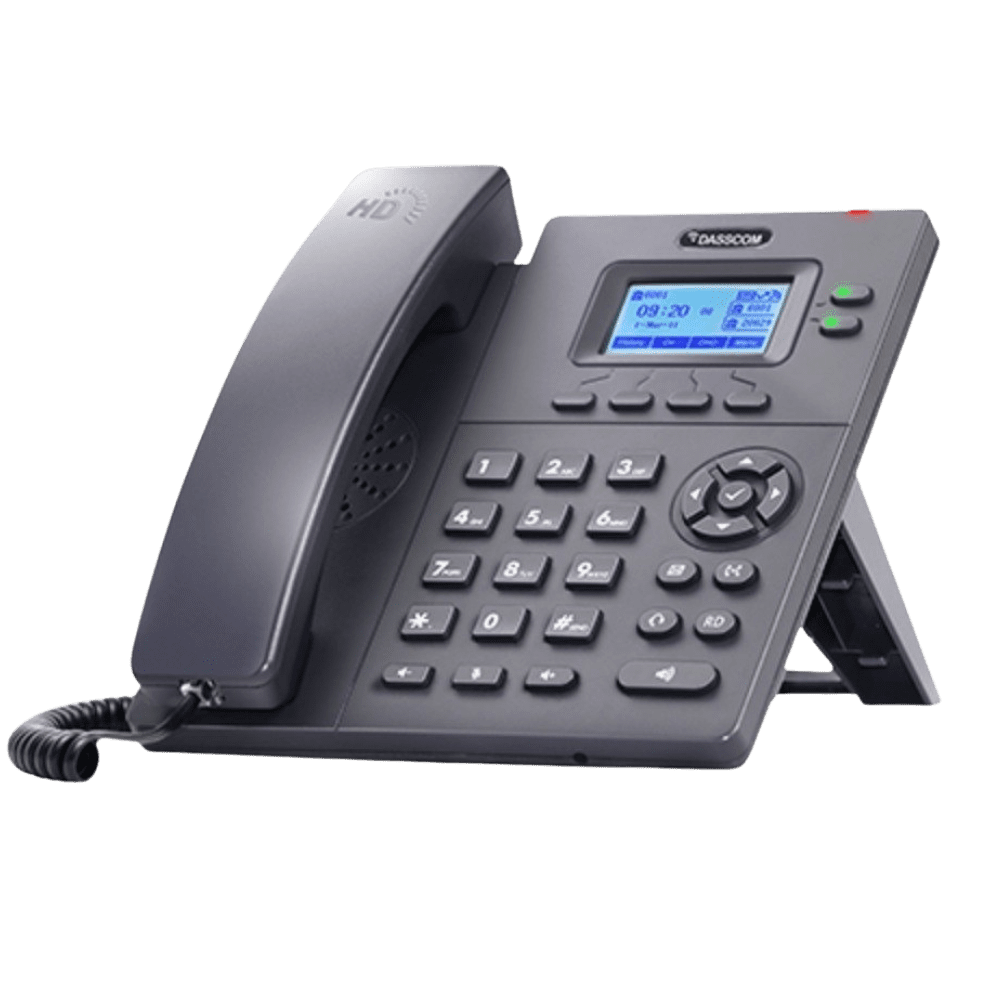

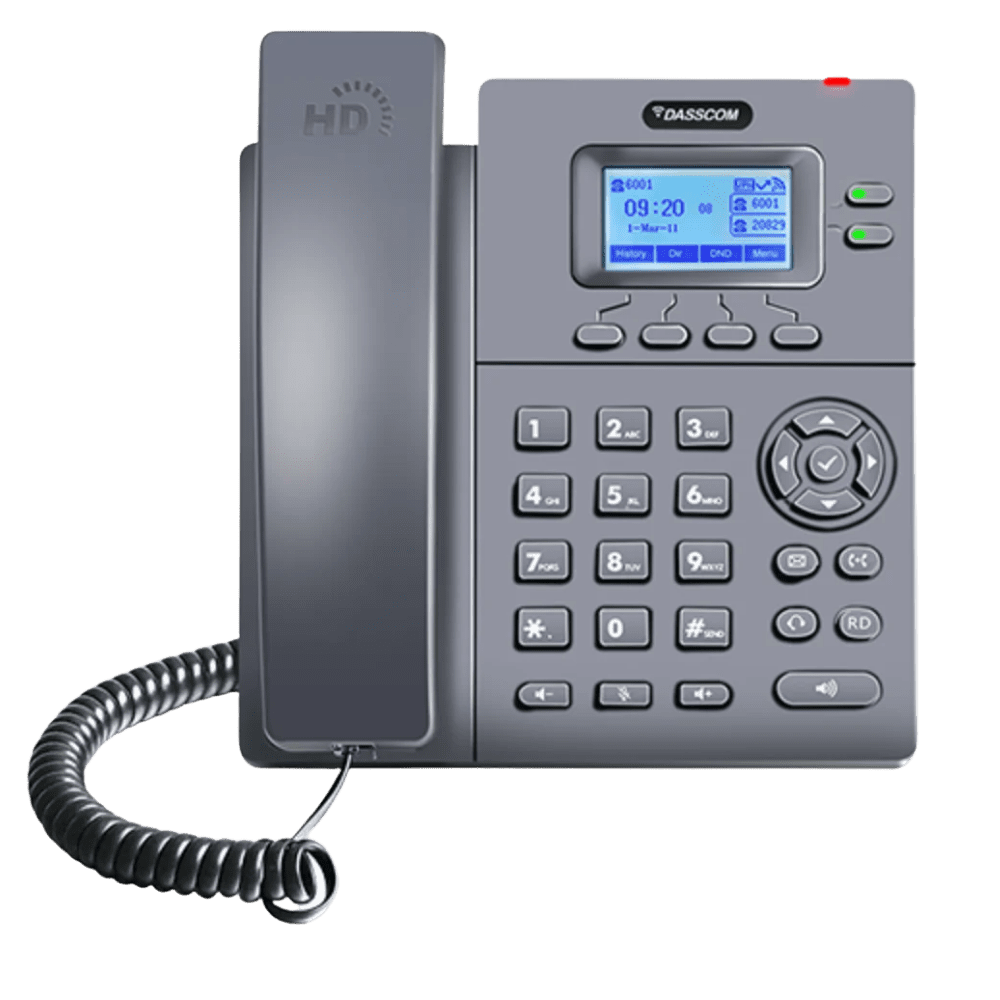

The DXP-6100HP Entry Level IP Phone is a cost-effective, feature-rich SIP phone designed for office environments, enterprise unified communications, and operator cloud voice solutions. It features dual Fast Ethernet ports, 2 SIP accounts, and 2 line keys, delivering reliable and efficient voice communication.
DXP-6100HP Entry Level Ip Phone Equipped with a monochrome full-view LCD display, HD speakerphone, and carefully designed electro-acoustic structure, the DXP-6100HP offers excellent hands-free voice quality and a comfortable user experience. Its multi-scene programmable key design allows users to customize operation modes based on usage habits, improving efficiency beyond typical entry-level phones.
DXP-6100HP Entry Level Ip Phone supports IPv4 and IPv6, along with comprehensive user, network, deployment, and security features, ensuring smooth integration with leading IP PBX platforms. Advanced protection mechanisms prevent damage from incorrect power operations, while anti-electromagnetic shielding ensures stable audio even near mobile devices.
With auto-provisioning support via WAN and LAN, flexible deployment, and broad third-party compatibility, the DXP-6100HP is an ideal solution for organizations seeking a dependable and economical IP phone.
| Brand |
|---|
Technical Specifications – DXP-6100HP
🔹 Basic Functions
-
128 × 64 graphic LCD with backlight
-
2 SIP accounts, 2 line keys
-
Call Forward, Transfer, Waiting, Hold
-
Hotline, Auto Answer, Redial, Mute, DND
-
Local 3-way conference
-
Speed Dial, Voicemail
-
Local phonebook (up to 1000 entries)
-
Call logs (Dialed / Received / Missed / Forwarded – 400 total)
-
Direct IP call (without SIP proxy)
-
Blacklist
-
Call center headset mode
🔹 Shortcut & Productivity Features
-
Personalized multi-scene usage mode
-
User guide & help information on device
-
25 programmable keys
-
One-key menu access
-
One-key phone information display
-
Intelligent phonebook search
-
Dial assistant
🔹 IP PBX Features
-
Intercom & Paging
-
Call Pickup & Group Pickup
-
Call Park
-
Anonymous Call / Rejection
-
Music on Hold
-
Conference Call
-
Call Recording
-
DND & Call Forward synchronization
🔹 Audio Features
-
HD voice with sealed electro-acoustic cavity
-
Full-duplex speakerphone with AEC
-
Adjustable volume (8 levels) & mute
-
Supported codecs:
-
Narrowband: G.711 (A/μ), G.729A/B/AB, G.726, iLBC
-
Wideband: G.722, L16, OPUS
-
-
VAD, CNG, AEC, PLC, AJB, AGC
🔹 Network Features
-
IPv4 & IPv6
-
VLAN, LLDP
-
Open VPN
-
IEEE 802.1X
-
STUN, NAT traversal, RPORT
-
QoS (IEEE 802.1Q/p, ToS, DiffServ, MPLS)
-
SIP modes: Proxy & Peer-to-Peer
-
DNS SRV (RFC 3263)
-
DTMF: In-band, RFC2833, SIP INFO
-
HTTP / HTTPS web server
-
PC port bridge mode
-
Packet tracing & syslog support
🔹 Security
-
TLS & HTTPS
-
SRTP (RFC 3711)
-
MD5 / MD5-sess authentication
-
AES encrypted configuration files
-
Phone lock
-
Administrator & user-level access control
🔹 Management & Provisioning
-
Web UI & phone-based configuration
-
Auto-provisioning via FTP / TFTP / HTTP / HTTPS
-
DHCP Option 66 & custom options (128–254)
-
Plug & Play (PnP)
-
RPS & TR-069
-
Import / export configuration files
-
Periodic configuration update
🔹 Physical Interface
-
Power: DC 5V / 0.6A
-
PoE: IEEE 802.3af Class 2
-
2 × RJ45 10/100 adaptive Ethernet ports
-
1 × RJ9 handset port
-
1 × RJ9 headset port
🔹 Keys
-
1 Status indicator
-
2 Line keys
-
4 Soft keys
-
5 Navigation keys
-
2 Volume keys
-
5 Function keys (Voicemail, Mute, Redial, Headset, Hands-free)
-
1 Multi-scene key
🔹 Environmental
-
Operating temperature: -10°C to 50°C
-
Operating humidity: 10% – 90%
🔹 Certifications
-
CE: EN60950, EN50332, EN300328 V1.9.1
-
FCC: Part 15, Part 15.247
🔹 IP PBX Compatibility
Zycoo, BroadSoft, Asterisk, Elastix, Trixbox, FreeSWITCH, Huawei, Avaya, Mitel, Unify, ZTE, and other SIP-based platforms.
