PA Zone Controller

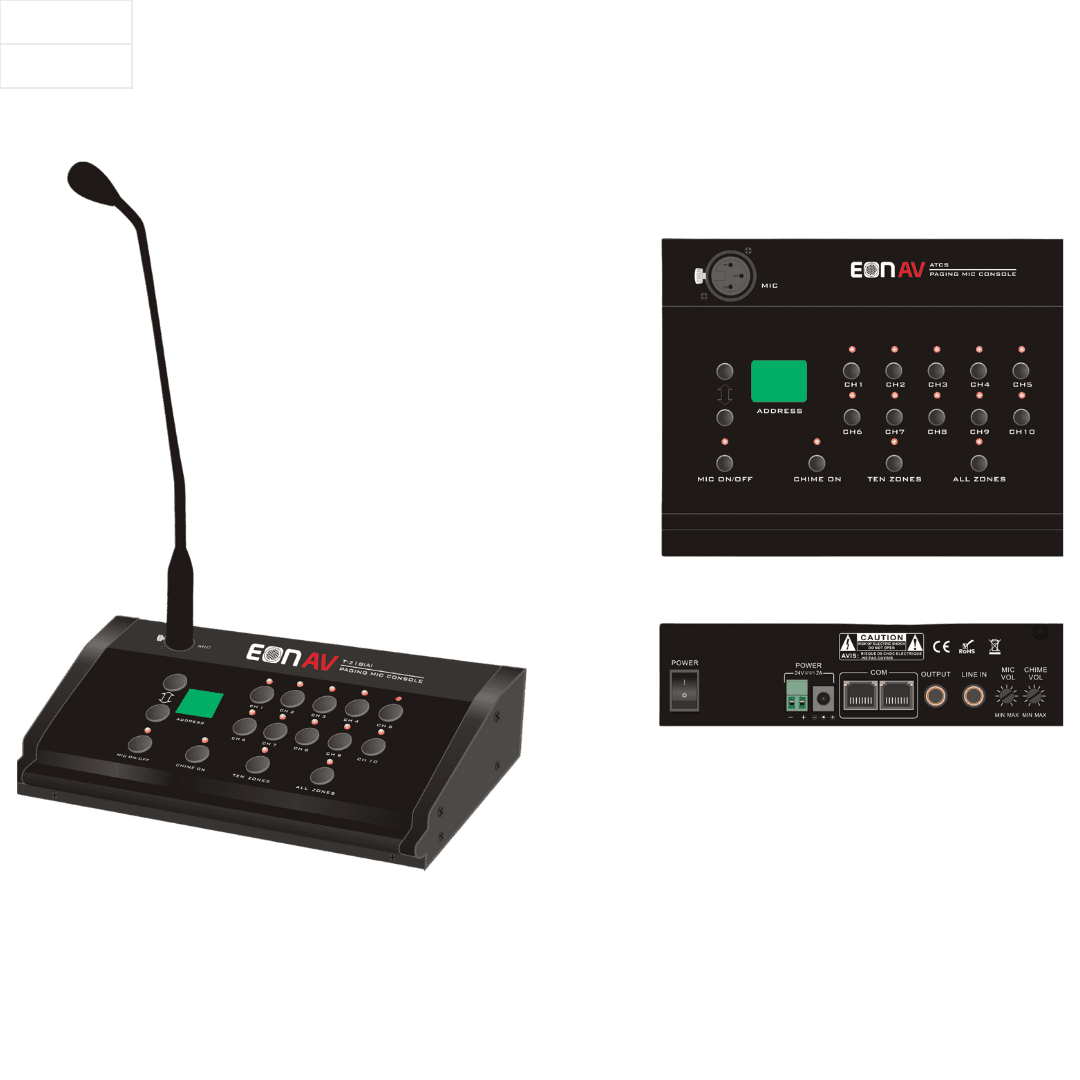

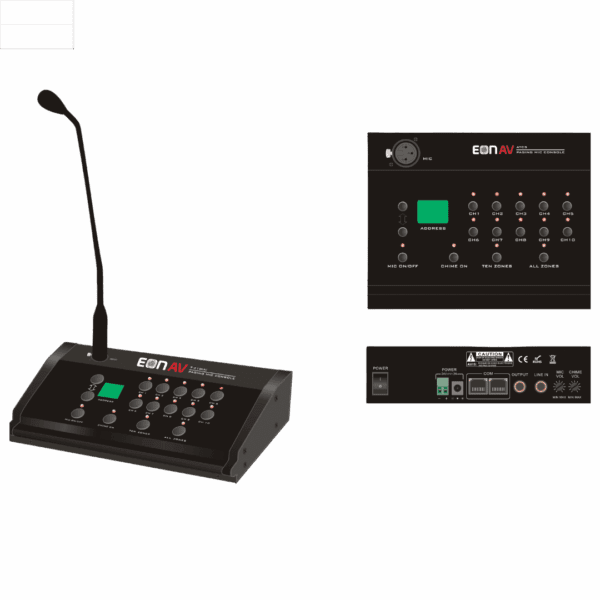

EON AV ATCS10Zone Call Station
FEATURES
• With operation number input keys and LED display.
• Capacity of manage 30 paging selectors AT-10ZC, up to 300 zones.
• Max remote control distance up to 1Km.
• With microphone volume control.
• RCA line input and output.
• Built-in chime and chime volume control.
• Max 16 microphone work together with RJ45 port in series connection
Get Latest Price
Enquiry Now
The ATCS is a high performance remote zone paging console that works with zone paging controller AT10ZC for remote paging and control over a multi-zone system Several paging modes (all zone, group zones, 10 zones and individual zones) could be achieved through this paging console. Features include capability of 16 microphones and 300 paging zones work at the same time, the will easily distinguish AT10ZC with its pre-set ID address .ATCS’s paging system with priority over background music system
| Brand |
|---|
| Model | ATCS |
| Input | 10mV, unbalanced
775mV, unbalanced |
| Output | Balanced |
| Frequency Response | MIC: 100Hz~15KHz; Line: 30Hz~18KHz |
| S/N Ratio | MIC input: 60dB Line input: 80dB |
| Controls | Chime MIC VOL controls, 300 channel selectors,
chime button, power switch |
| Indicators | Powter LED, 10 paging channel LEDs |
| Power Supply | DC 24V |
| Power Consumption | 10W |
| Weight | 1.25Kg |
| Dimensions | 220×142.7×51.5mm |
| Communication Protocol | RS422 |
| Communication Input | RJ45 |
| Communication Speed | 4800bps |
| Finish | Panel: steel plate, black Case: steel plate, black Side board: plastic, black |
