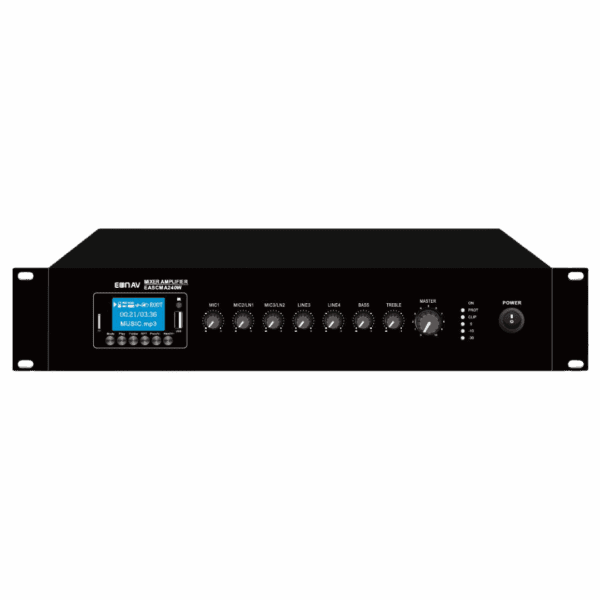

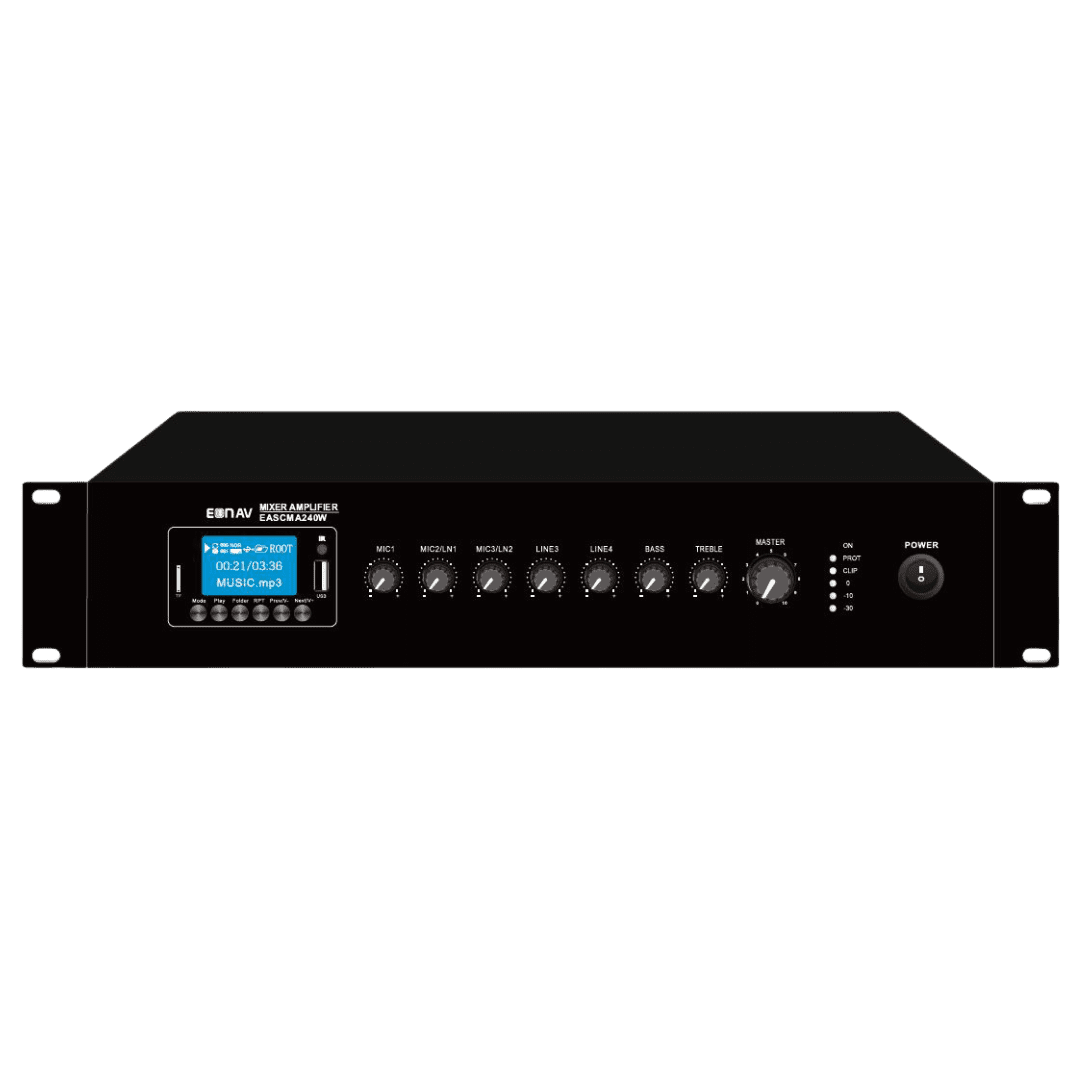

eon av EASCMA120W Mixer Amplifier

EON AV EASCMA120W Mixer Amplifier

Eon AV
Add to wishlist
Compare

FEATURES
• Compact mini size public address amplifier
• Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
• Rate power output at 120W
• Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
• Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
• LED indicators for power, clip, protect and signal
• Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
• Mic/line2-3 switchable inputs unbalanced 6.3mm jack
• Line 1-2 input of RCA input and one RCA line output
• Volume control for Mic1-3, line1-2, bass/treble and master
• Complete amplifier protection includes short-circuit, clip, overload and high temp
• AC230V power supply system

Get Latest Price Enquiry Now

FEATURES
• Compact mini size public address amplifier
• Tabletop mixer amplifier with Mp3 player, FM radio & blue tooth
• Rate power output at 120W
• Speaker output of 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
• Mp3 player with USB/SD input on front panel, IR remote control for Mp3 player, FM radio and blue tooth
• LED indicators for power, clip, protect and signal
• Mic1 of balanced XLR input with dipswitch of phantom power on/off & highest VOX priority on/off
• Mic/line2-3 switchable inputs unbalanced 6.3mm jack
• Line 1-2 input of RCA input and one RCA line output
• Volume control for Mic1-3, line1-2, bass/treble and master
• Complete amplifier protection includes short-circuit, clip, overload and high temp
• AC230V power supply system

SKU: EASCMA120W Category: Tags: , , , , Brand:
Brand

Model EASCMA120W
Description Mixer Amplifier with USB/SD/FM/Blue Tooth
Rated Power Output 120W
Speaker Outputs 100V or 70V & 4 Ohm-8 Ohm-16 Ohm
Connector Mic1 input by balanced XLR with phantom power & VOX highest priority

Mic/line switchable input 2-3 unbalanced 6.3mm jack

Line1-2 inputs by RCA; Line output by RCA
Input MIC1-3: 5-8mV, 600Ω; Line, 150-470mV, 10KΩ, unbalanced RCA
Line Out 0.775(0dBV)
Frequency Response 60Hz-15kHz(±3dB)
S/N Ratio Line ≥ 85dB, Mic≥ 72dB
THD Less than 0.5%
Protection Short-circuit, clip, overload and high temp protection
Power Consumption 150W
Power Supply AC230V; 50-60Hz
Dimension 484×405×88mm
Weight 7.1kg
