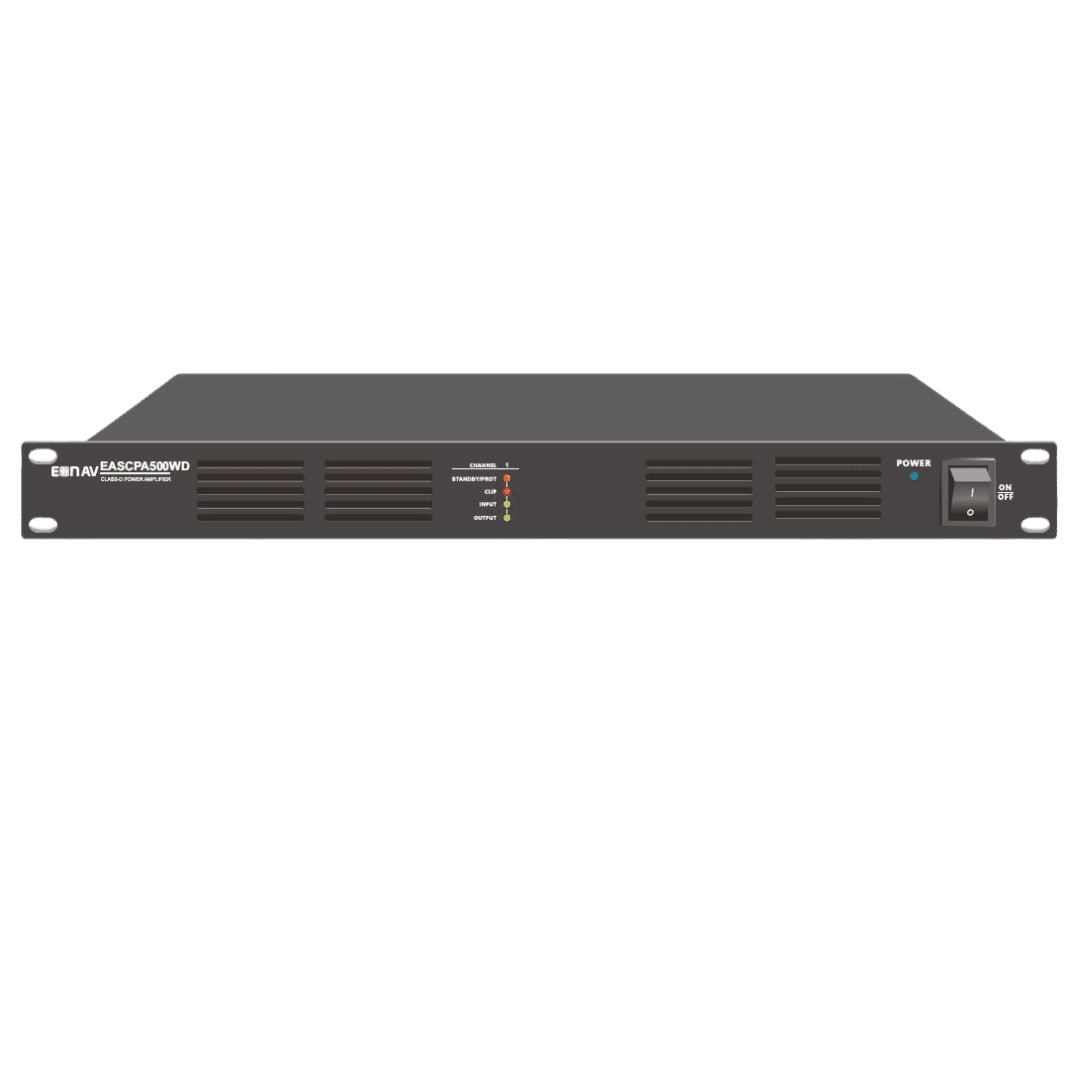

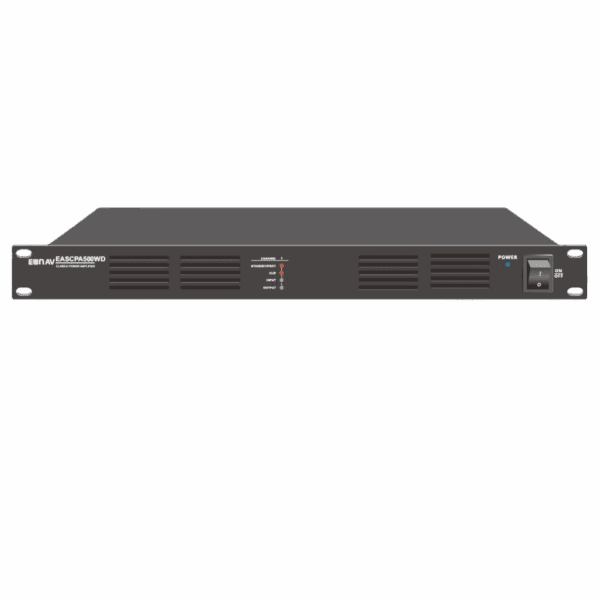

EON AV EASCPA500WD Class D Power Amplifier

The EASCPA500WD digital class-D power amplifier is of switching power technology, which features of minimum power consumption and higher efficiency up to 85%.The EASCPA500WDpower amplifier is of rated power output at 500W, so it could be used as with mixer or pre amplifier to set up public address system or commercial audio system at minimum cost. The versatile loudspeaker outputs of both high impedance 100V & low impedance 8 Ohm enable it meet both PA fixed installation and Hi-fi stereo sound installation jobs. There is one balanced line input by phoenix connector with gain control. The output built-in high-pass filters could be enabled or disabled through the dip switch pre-setting. Automatic standby enable after no detection of signal input for one minute, immediately wake up at sight of any input. Visual working status indicators include protection, clip, input and output for easy supervision. With complete short circuit, overload, high temp, clip and DC protection. Power supply of 230V AC and 24V DC.
