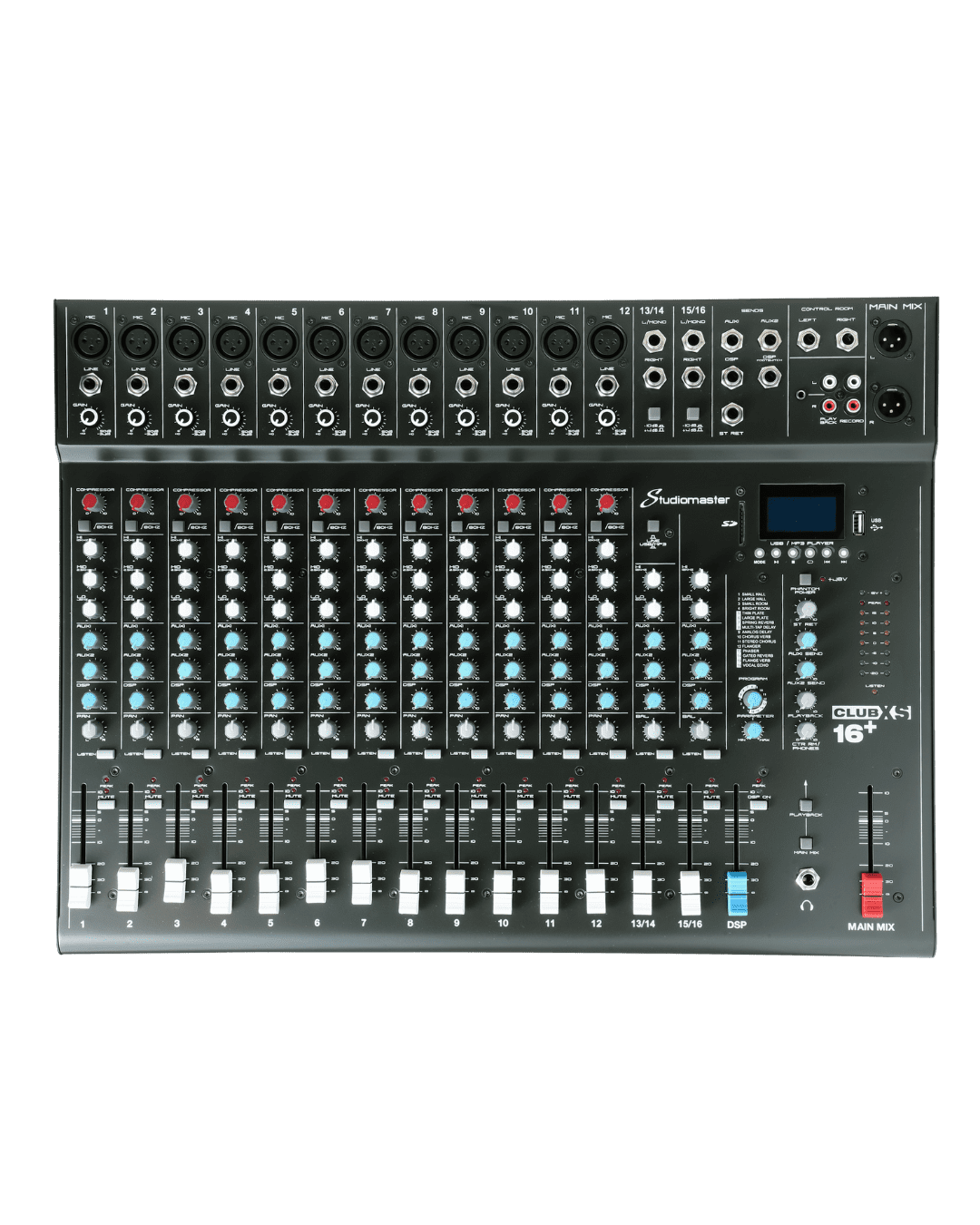

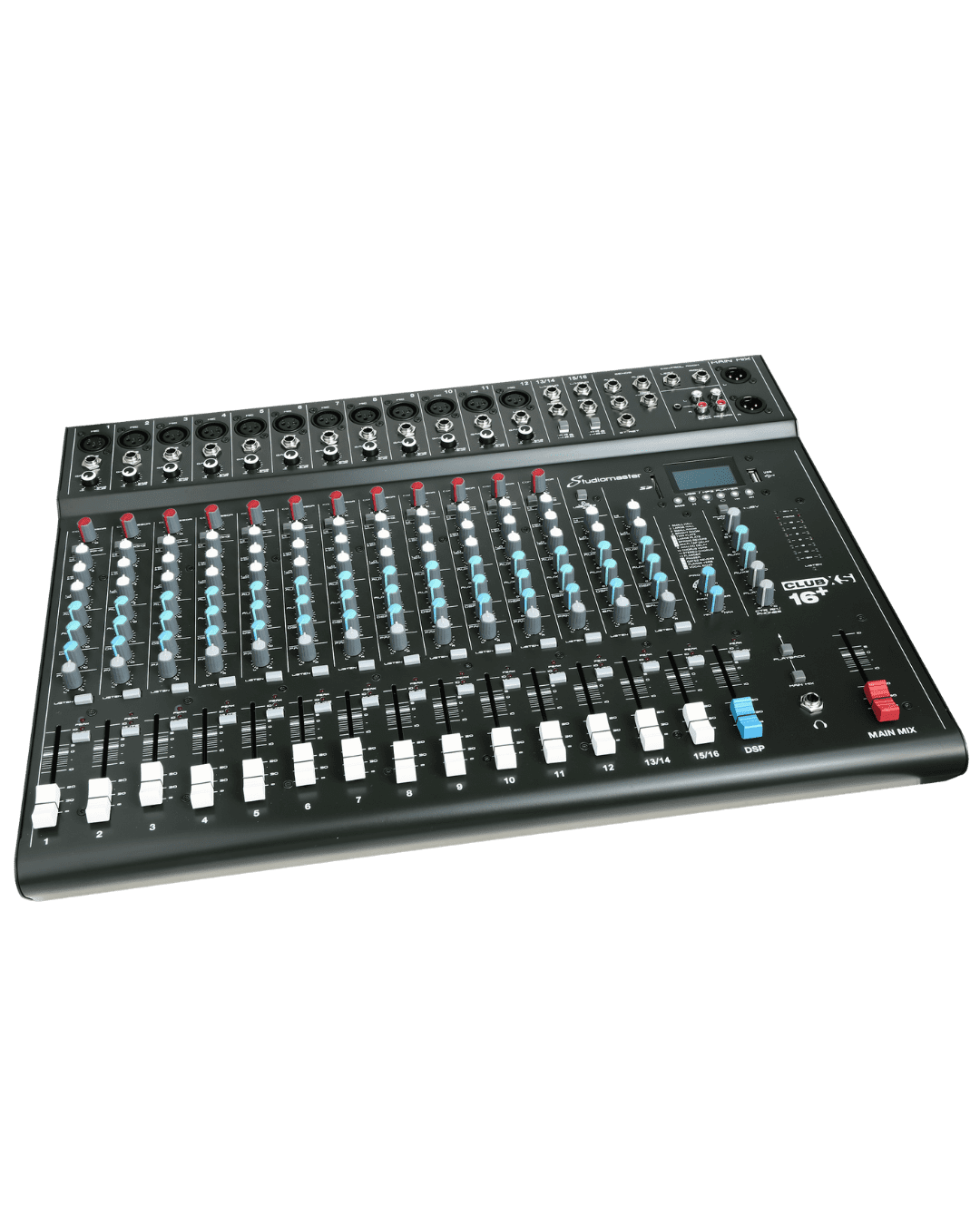

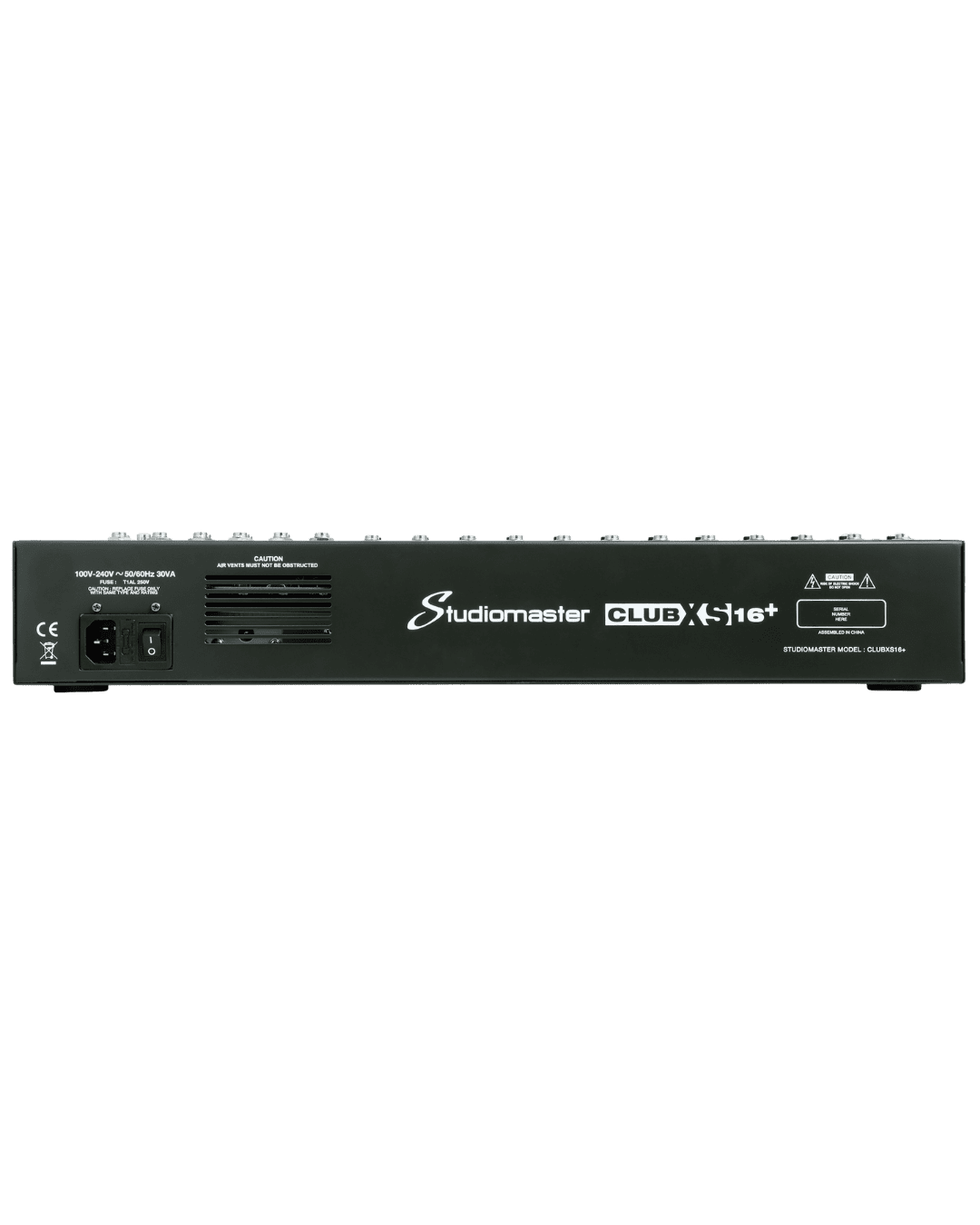

STUDIOMASTER CLUB XS16+ 16 Input Channel
- 16 inputs
- 12 mic channels
- 2 stereo channels
- 2 AUX sends
- 16 DSP effects
- Foot switch socket for DSP
- PFL’s on all channels
- Bluetooth
- USB/SD media player
- Inputs: 16
- Mic Inputs: 12
- Stereo Inputs: 2
- Mic Gain Range: 6dB to 50dB
- Line Gain Range: 10dB to 34dB
- EIN: -100dB
- Frequency Responce: 10Hz – 20kHz (+1/-3dB)
- THD Mic Channel: <0.1%
- Signal to Noise Ratio: 80dB
- Output Levels: Max +26dB (Bal), +20dB (unBal)
- EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
- USB/SD: MP3 Audio playback
- Record: To USB drive or SD card (128kbps mono)
- DSP Effects: 16 DSP effects
- Power Requirements: 100V – 240V ~
- Dimension W*D*H: 385 x 527 x 85 (mm)
Get Latest Price
Enquiry Now
- 16 inputs
- 12 mic channels
- 2 stereo channels
- 2 AUX sends
- 16 DSP effects
- Foot switch socket for DSP
- PFL’s on all channels
- Bluetooth
- USB/SD media player
- Inputs: 16
- Mic Inputs: 12
- Stereo Inputs: 2
- Mic Gain Range: 6dB to 50dB
- Line Gain Range: 10dB to 34dB
- EIN: -100dB
- Frequency Responce: 10Hz – 20kHz (+1/-3dB)
- THD Mic Channel: <0.1%
- Signal to Noise Ratio: 80dB
- Output Levels: Max +26dB (Bal), +20dB (unBal)
- EQ: Hi 12kHz, Mid 2.5kHz, Lo 45Hz, Lo cut 80Hz
- USB/SD: MP3 Audio playback
- Record: To USB drive or SD card (128kbps mono)
- DSP Effects: 16 DSP effects
- Power Requirements: 100V – 240V ~
- Dimension W*D*H: 385 x 527 x 85 (mm)
| Brand |
|---|
| inputs | 16 |
| Mic Input channels | 12 |
| Stereo Input channels | 2 |
| Gain | MIN – MAX |
| Mic | 6dB – +50dB |
| Line | +10dB – -34dB |
| EIN | -100dB |
| Frequency response | |
| Mic Channel | 10Hz-20kHz+1/-3 |
| THD Mic Channel | ≤0.1% |
| Signal to noise ratio | 80dB |
| Output Levels | MAX +26(BAL) MAX +20(UNBAL) |
| Channel EQ | |
| Hi | 12kHz |
| Mid | 2.5kHz |
| Lo | 45Hz |
| Lo Cut | 80Hz |
| MP3/USB/SD Audio playback | YES |
| USB/SD Audio recording | YES |
| DSP Effects | YES |
| Power requirements | 100V – 240V ~ |
| Dimension (W x H x D) mm | 525 x 80 x 390mm |
| Weight | 7.3kg |
