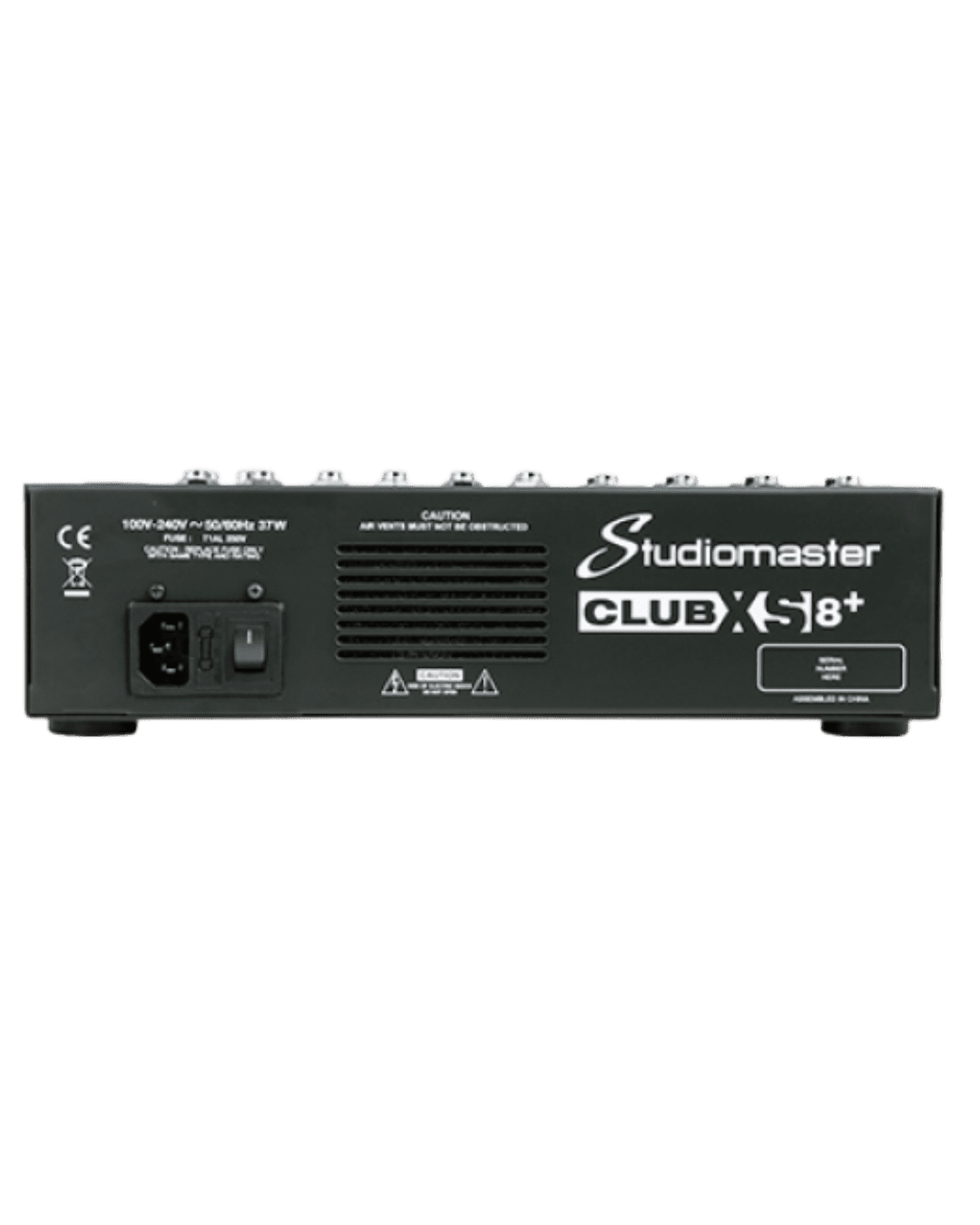

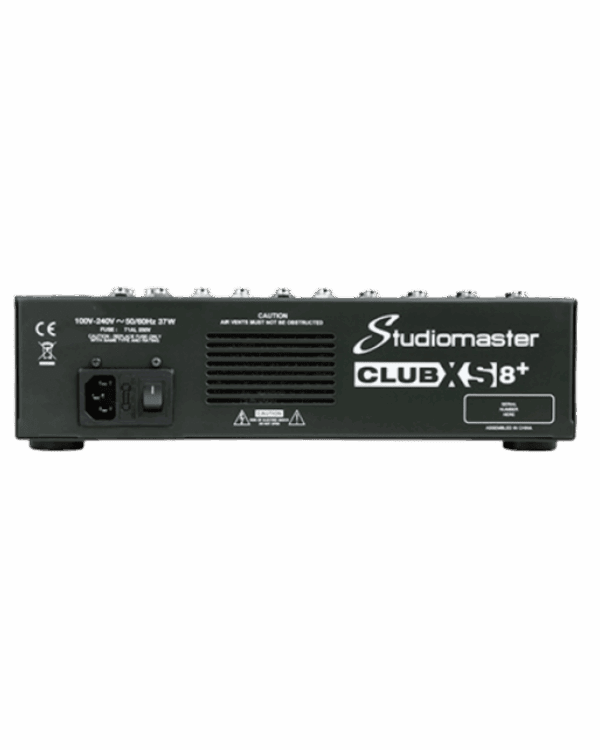

STUDIOMASTER CLUB XS8+ 8-Channel Analog Mixer

Studiomaster CLUB XS8+ – 8-Channel Analog Mixer with DSP and USB/SD Recording

The Studiomaster CLUB XS8+ is a compact, high-performance 8-channel analog mixer designed for live performances, recording sessions, and small-scale sound reinforcement setups. Combining professional-grade sound quality with versatile connectivity and intuitive operation, the CLUB XS8+ is ideal for musicians, DJs, venues, schools, and houses of worship seeking studio-quality sound in a portable format.

---

Powerful and Versatile Input Configuration

The CLUB XS8+ offers 8 total inputs, including 4 mic/line combo inputs and 2 stereo line inputs, providing flexibility for a range of microphones, instruments, and audio sources. The mic channels deliver a gain range of 6 dB to 50 dB, while line inputs provide 10 dB to 34 dB, ensuring accurate signal control for both vocals and instruments.

Each channel features a 3-band EQ (High 12kHz, Mid 2.5kHz, Low 45Hz) and a low-cut filter at 80Hz to refine your sound and reduce unwanted low-frequency noise, giving you professional-level tonal control.

---

Crystal-Clear Sound and Reliability

Engineered with low-noise preamps and precision circuitry, the Studiomaster CLUB XS8+ delivers exceptional audio clarity. With an Equivalent Input Noise (EIN) of -100 dB and a Total Harmonic Distortion (THD) of less than 0.1%, this mixer ensures clean, natural sound reproduction. The frequency response from 10Hz to 20kHz (+1/-3dB) provides full-range sound, ideal for live vocals, instruments, and playback applications.

The signal-to-noise ratio of 80 dB guarantees quiet operation, even at higher gain levels, while balanced (+26 dB) and unbalanced (+20 dB) outputs provide professional connectivity for amplifiers, powered speakers, or recording equipment.

---

Built-in USB/SD Player and Recording Capability

The integrated USB/SD media player allows direct playback of MP3 audio files, making it easy to play background music or pre-recorded tracks during events. You can also record live performances directly to a USB drive or SD card at 128 kbps mono, making it perfect for capturing mixes or rehearsal sessions without external recording gear.

---

Professional DSP Effects and Compact Design

Enhance your sound with 16 built-in DSP effects, including reverbs, delays, and chorus, designed to add polish and depth to vocals and instruments. Despite its professional capabilities, the CLUB XS8+ remains lightweight and portable, measuring 305 × 80 × 365 mm and weighing only 4.5 kg, making it ideal for mobile setups and compact studio spaces.

---

Key Features:

• 8-Channel analog mixer with USB/SD MP3 playback and recording

• 4 Mic/Line inputs + 2 stereo inputs

• 3-band EQ with low-cut filter

• 16 onboard DSP effects

• EIN: -100 dB | S/N ratio: 80 dB | THD: <0.1%

• Balanced and unbalanced outputs (+26 dB / +20 dB)

• Compact and lightweight (4.5 kg)

---

The Studiomaster CLUB XS8+ delivers professional audio control, flexible connectivity, and reliable performance—the perfect choice for musicians and sound engineers who need studio-quality sound in a portable mixer.
