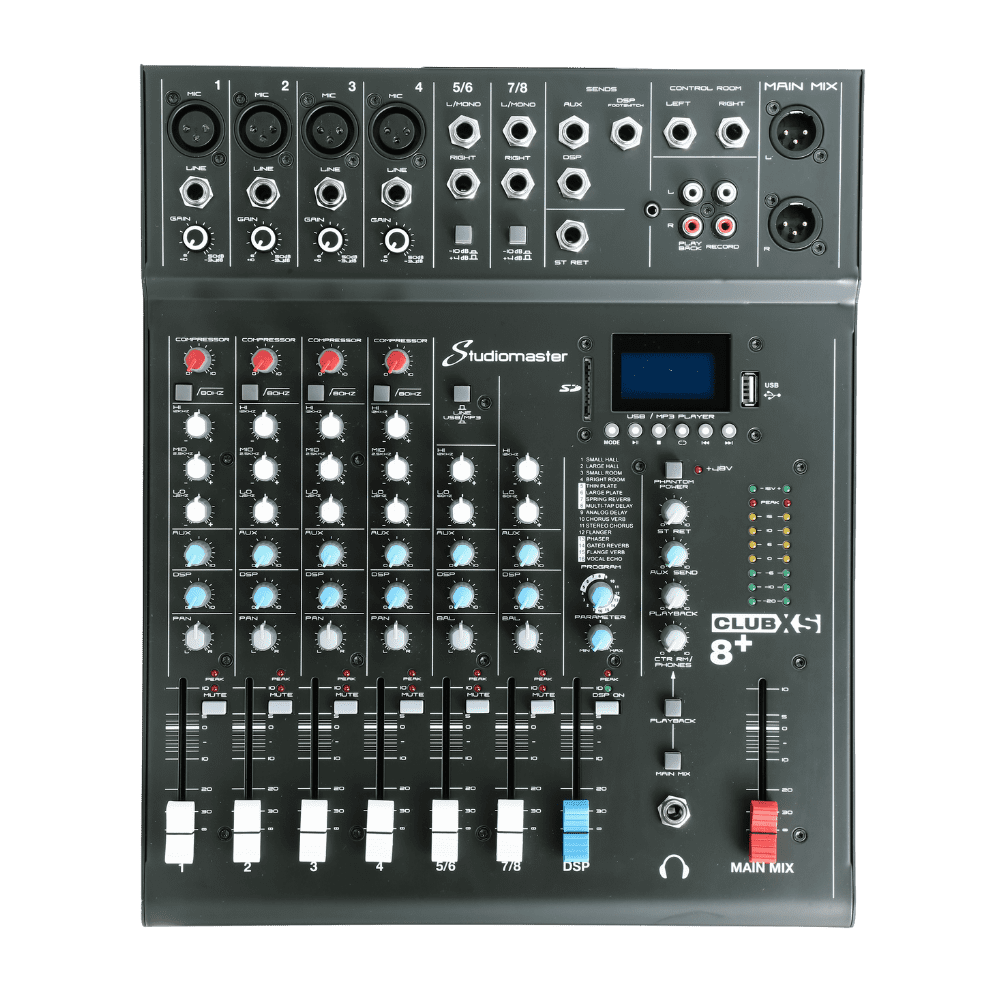

Studiomaster CLUB XS8+ – 8-Channel Analog Mixer With DSP & USB/SD Recording

The STUDIOMASTER CLUB XS8+ – 8-Channel Analog Mixer With DSP & USB/SD Recording  is a compact, professional 8-channel analog mixer engineered for musicians, sound engineers, event venues, and content creators who demand studio-quality audio in a portable and easy-to-use format. Designed with high-precision circuitry and low-noise preamps, the CLUB XS8+ delivers outstanding clarity, flexibility, and reliability for both live sound and recording environments.

🔹STUDIOMASTER CLUB XS8+ – 8-Channel Analog Mixer With DSP & USB/SD Recording   Versatile 8-Channel Configuration

The CLUB XS8+ offers a flexible input layout, including:

• 4 Mic/Line combo inputs with high-quality preamps

• 2 Stereo line inputs for instruments, keyboards, media players & more

Each mic channel offers:

• Gain range: 6 dB to 50 dB

• Stereo line gain: 10 dB to 34 dB

This configuration supports everything from vocals and instruments to playback devices and external audio sources.

🔹STUDIOMASTER CLUB XS8+ – 8-Channel Analog Mixer With DSP & USB/SD Recording   Professional 3-Band EQ & Low-Cut Filter

Shape your sound with precision using:

• 3-band EQ: High (12 kHz), Mid (2.5 kHz), Low (45 Hz)

• 80 Hz low-cut filter to reduce hum and unwanted low-end noise

Ideal for live vocals, speech clarity, and musical instruments.

🔹STUDIOMASTER CLUB XS8+ – 8-Channel Analog Mixer With DSP & USB/SD Recording  Exceptional Audio Quality

The mixer is engineered for clean and natural sound reproduction:

• EIN: –100 dB

• THD: <0.1%

• Frequency response: 10 Hz – 20 kHz (+1 / –3 dB)

• Signal-to-noise ratio: 80 dB

Balanced (+26 dB) and unbalanced (+20 dB) outputs ensure professional-level connectivity and performance.

🔹 Built-In USB/SD Playback & Recording

Enjoy convenient audio playback and recording without external equipment:

• USB/SD MP3 player for BGM or track playback

• Direct recording to USB or SD card at 128 kbps mono
  Perfect for live recordings, rehearsals, and event playback.

🔹 16 Onboard DSP Effects

Enhance vocals and instruments with:

• Reverbs

• Delays

• Chorus

• Special effects

Adds depth and polish to any live or recorded performance.

🔹 Compact, Lightweight & Portable

Despite its professional capabilities, the CLUB XS8+ remains highly portable:

• Dimensions: 305 × 80 × 365 mm

• Weight: 4.5 kg

Perfect for mobile DJs, touring musicians, classrooms, and small venues.

Key Features

• 8-Channel analog mixer

• 4 Mic/Line + 2 stereo inputs

• USB/SD MP3 playback

• Direct recording (128 kbps mono)

• 16 DSP effects

• 3-band EQ with 80Hz low-cut

• Low-noise preamps (EIN –100 dB)

• THD <0.1% | S/N: 80 dB

• Balanced +26 dB & unbalanced +20 dB outputs

• Compact & lightweight for portable use

• Multi-voltage support: 100–240V AC
