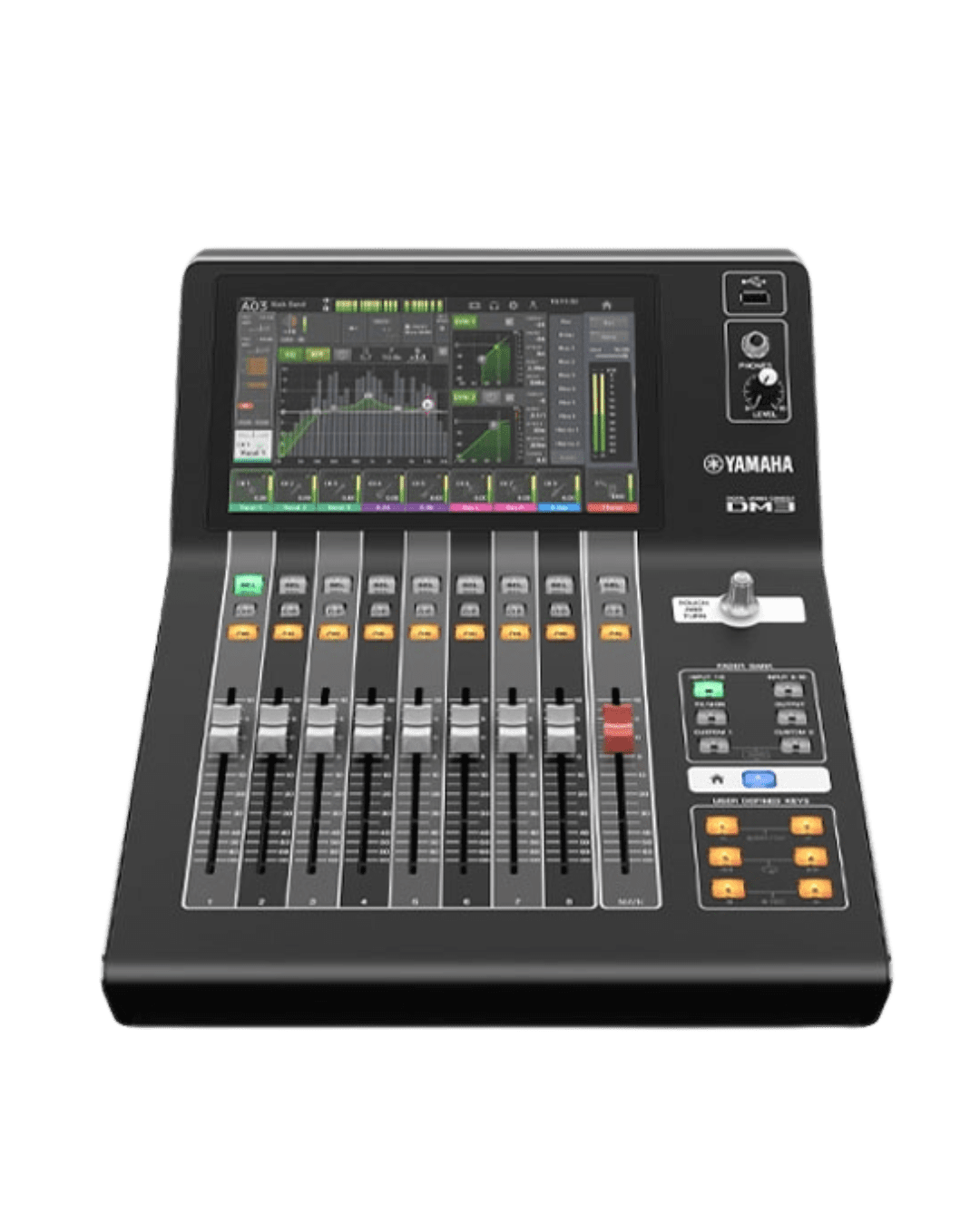

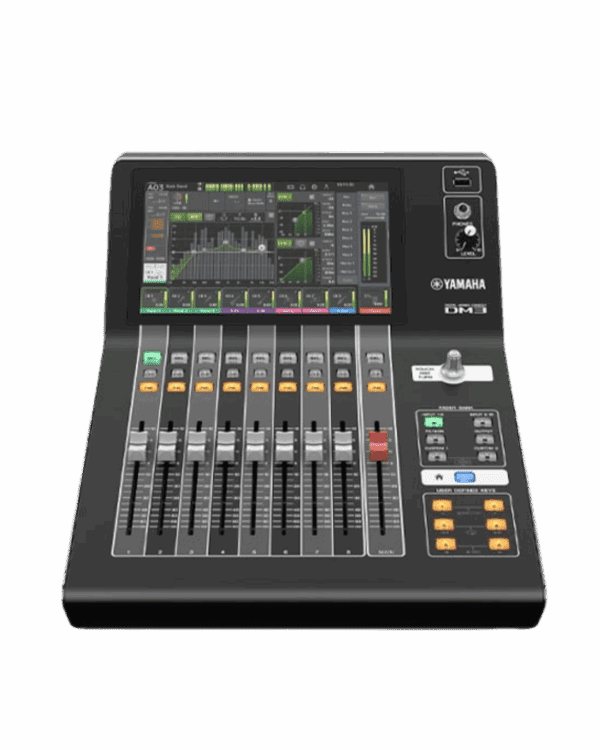

YAMAHA Digital Mixing Console DM3 Standard (DM3S)

Features
• 8 + 1 fader configuration
• 9-inch multi-touch screen
• Input mixing channels: 16 mono + 1 stereo + 2 FX return
• Buses: 1 Stereo, 6 Mix, 2 FX, 2 Matrix (Supports Input to Matrix)
• Local I/O: 16 Mic/Line (12 XLR + 4 XLR/TRS Phones Combo) inputs, and 8 (XLR) outputs
• USB: 18 inputs, and 18 outputs
• 18 Effects, and GEQ on Mix 1-6 and Stereo channels
• Sampling rate: 48kHz/96kHz
• Intuitive user interface optimized for multi-touch screen operation.
• “QuickPro PresetsTM” provide instant access to pro sound setups.
• DAW Remote for smooth DAW operation with physical controllers
• Seamlessly integrated remote control and offline editing via DM3 Editor.
• Wireless remote control of a DM3 Standard is possible via an iPad app.
• Individual wireless Mix/Matrix mixing can be simultaneously performed by up to 10 different iPad, iPhone, iPod touch, or Android devices.
• Direct 2-track recording to standard USB flash drives, or serious multitrack recording to a DAW via USB.
• Dimensions (W x H x D): 320 mm x 140 mm x 455 mm (12.6” x 5.6” x 18.0”)
• Net weight: 6.5 kg (14.3lb)
