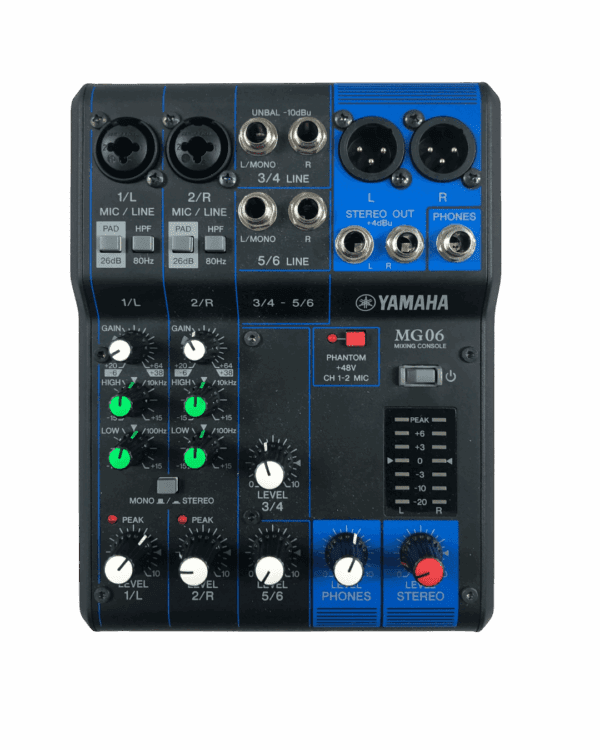

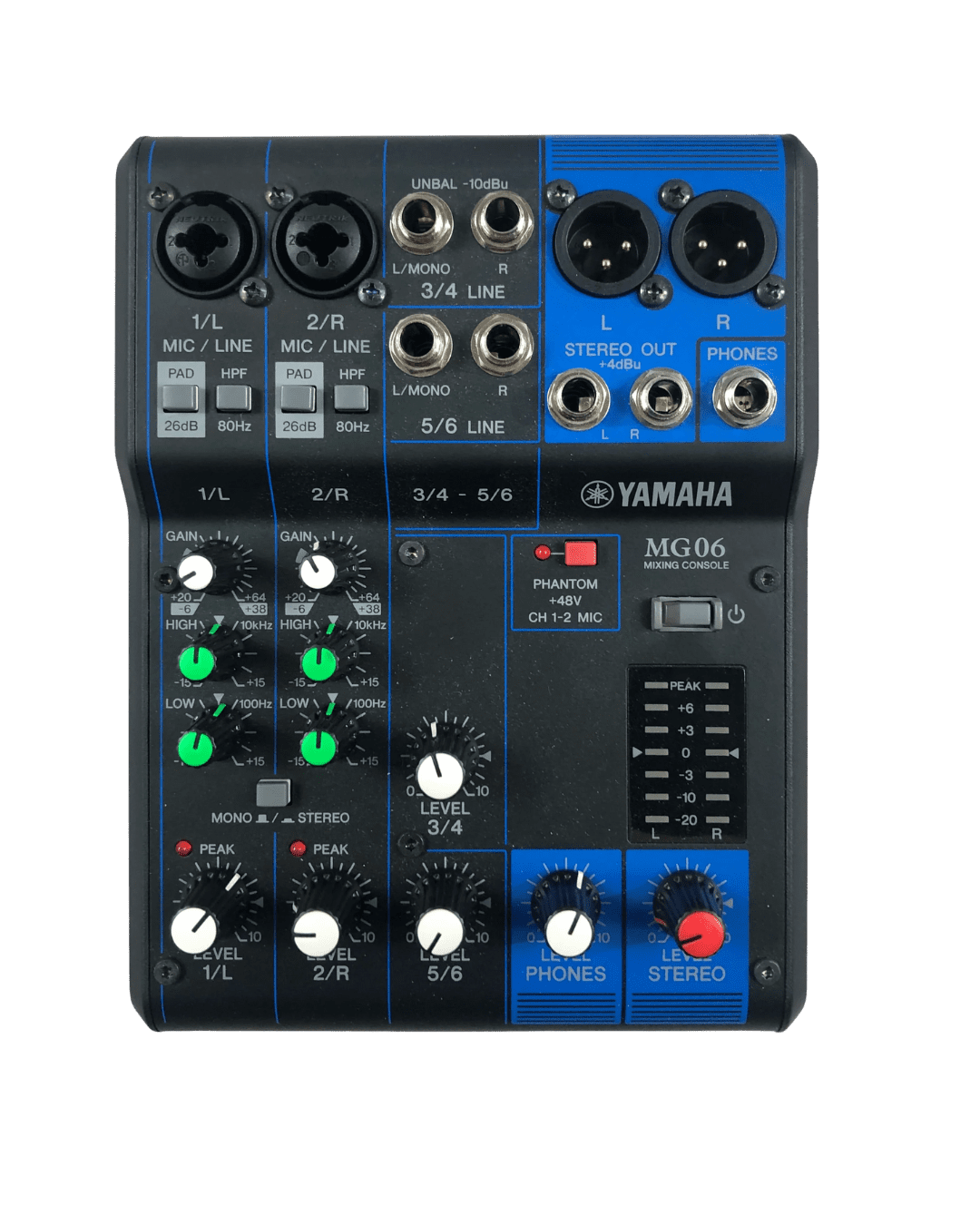

YAMAHA MG06 Mixing Console

Features
• Input channels: 6 Line Inputs (2 mono, 2 stereo), 2 Mic Inputs with 48V phantom power and HPH per channel.
• Output channels: 2 ST, 1 PHONES.
• Bus: 1 ST
• Robust, impact-resistant, powder-coated metal chassis.
• AC Adapter PA-130 (DC12V/1.0A) 120V/60Hz or MU18 (DC12V/1.5A) 100-240V 50/60Hz, or equivalent recommended by Yamaha.
• Discrete class A “D-PRE” mic preamps with an inverted darlington circuit.

Get Latest Price

Enquiry Now

Description
Specification

SKU: MG06 Category: Audio Mixers and Consoles Tags: MG06, YAMAHA, YAMAHA MG06, YAMAHA MG06 Mixing, YAMAHA MG06 Mixing Console Brand: YAMAHA

Brand	YAMAHA AUDIO

INPUT CHANNELS	LINE INPUT	6 (2 MONO + 2 STEREO)
	MIC INPUT	2
	MONO INPUT (MIC/LINE)	2 (CH1-2)
	MONO/STEREO INPUT (MIC/LINE)	0
	STEREO INPUT (LINE)	2
OUTPUT CHANNELS	STEREO OUT	2
	MONITOR OUT	0
	AUX SEND	0
	GROUP OUT	0
	PHONES OUT	1
BUS	STEREO	1
	GROUP	0
	AUX	0
USB AUDIO – USB IN/OUT		No
PHANTOM POWER		+48V
POWER REQUIREMENTS		120V/60Hz (AC Adapter PA-130) or 100-240V 50/60Hz (MU18)
POWER SUPPLY TYPE		AC Adapter PA-130 (DC12V/1.0A) 120V/60Hz or MU18 (DC12V/1.5A) 100-240V 50/60Hz, or equivalent recommended by Yamaha
POWER CONSUMPTION		12W
DIMENSIONS W x D x H		149mm x 202mm x 62mm (5.9″ x 7.9″ x 2.4″)
NET WEIGHT		0.9kg (1.98lbs)
INCLUDED ACCESSORIES		AC Adaptor, Owner’s manual, Technical Specifications
SOFTWARE APPLICATION	Steinberg CUBASE AI	No
	Steinberg CUBASIS LE	No
	MG REC/PLAY (WAV)	No
OPTIONAL ACCESSORIES		BMS-10A Mic Stand Adaptor
OPERATING TEMPERATURE		0 to 40˚C
