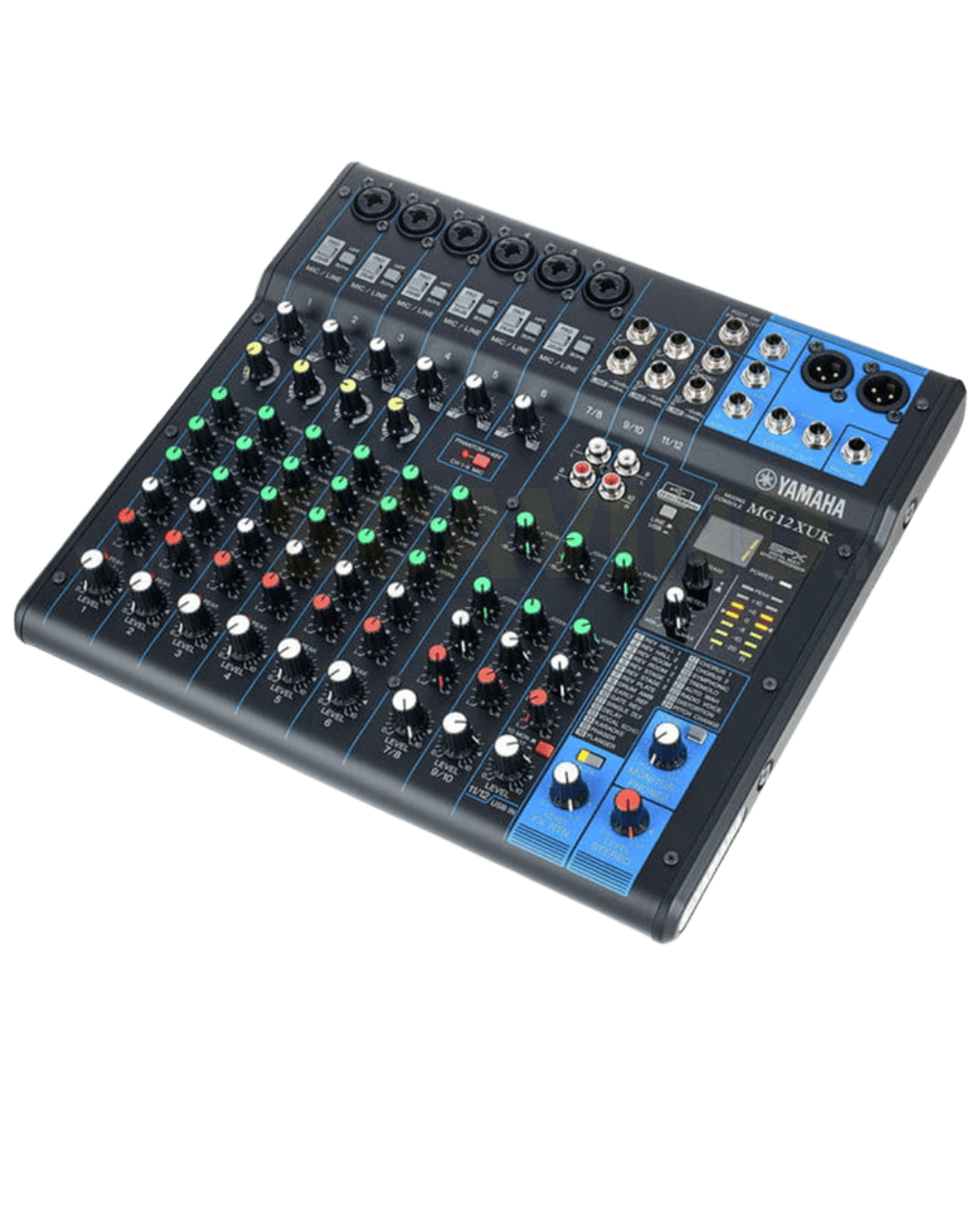

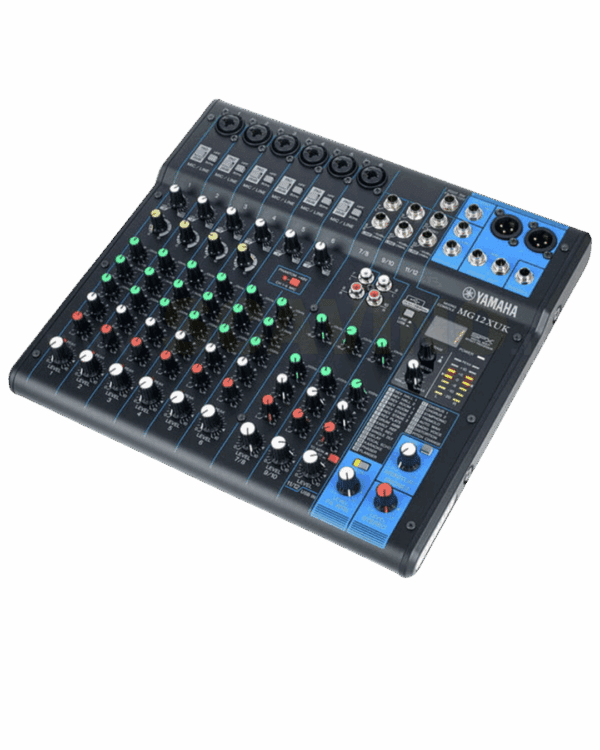

MG12XUK is a versatile mixer suitable for a wide range of users and applications.
Features
• Input channels: 12 Line Inputs (6 mono, 3 stereo), 6 Mic Inputs with 48V phantom power and HPH per channel.
• Output channels: 2 ST, 1 MONITOR, 1 AUX [FX] send, 1 PHONES.
• Bus: 1 ST, 1 AUX [FX]
• Robust, impact-resistant, powder-coated metal chassis.
• AC Adaptor PA-10 (AC 38VCT, 0.62A) or equivalent recommended by Yamaha.
• Discrete class A “D-PRE” mic preamps with an inverted darlington circuit.
• Professional “1-knob compressors”.
• Digital effects processors: 24 “SPX” effects
• 24-bit/192kHz 2IN/2OUT USB Audio Interface function.
• Cubase AI access code included for Download on the Steinberg website.
• Cubasis LE available for free download on the App Store.
• MG REC/PLAY available for free download on the App Store.
| Brand |
|---|
| INPUT CHANNELS | LINE INPUT | 12 (6 MONO + 3 STEREO) |
| MIC INPUT | 6 | |
| MONO INPUT (MIC/LINE) | 6 (CH1-6) | |
| MONO/STEREO INPUT (MIC/LINE) | 0 | |
| STEREO INPUT (LINE) | 3 | |
| OUTPUT CHANNELS | STEREO OUT | 2 |
| MONITOR OUT | 1 | |
| AUX SEND | 1 | |
| GROUP OUT | 0 | |
| PHONES OUT | 1 | |
| BUS | STEREO | 1 |
| GROUP | 0 | |
| AUX | 1 (incl.FX) | |
| USB AUDIO – USB IN/OUT | Yes (2 IN / 2 OUT, USB Audio Class 2.0 compliant, Sampling Frequency: Max 192kHz, Bit Depth: 24-bit) | |
| PHANTOM POWER | +48V | |
| POWER REQUIREMENTS | May vary depending on region (120V/60Hz, 220V/60Hz, 220V/50Hz, 230V/50Hz, 240V/50Hz) | |
| POWER SUPPLY TYPE | AC Adaptor PA-10 (AC 38VCT, 0.62A) or equivalent recommended by Yamaha | |
| POWER CONSUMPTION | 22.9W | |
| DIMENSIONS W x H x D | 315mm x 91mm x 297mm (12.4″ x 3.6″ x 11.7″) | |
| NET WEIGHT | 3.0kg (6.62lbs) | |
| INCLUDED ACCESSORIES | AC Adaptor, Owner’s manual, Technical Specifications, Cubase AI Download Information | |
| SOFTWARE APPLICATION | Steinberg CUBASE AI | Yes (Download access code included. Download on the Steinberg web site) |
| Steinberg CUBASIS LE | Yes (Download on the App Store) (Apple iPad Camera Connection Kit/Lightening to USB Camera Adapter required) | |
| MG REC/PLAY (WAV) | Yes (Download on the App Store) (Apple iPhone/iPad Camera Connection Kit/Lightening to USB Camera Adapter required) | |
| OPTIONAL ACCESSORIES | FC5 Foot Switch | |
| OPERATING TEMPERATURE | 0 to 40˚C | |
12 inputs (8 mic channels, 2 stereo channels)
16 DSP effects (including reverb, delay, and stereo effects)
Bluetooth playback functionality
USB/SD card media module for playback and recording
DSP on/off footswitch socket for easy effect control
Compressor and 100Hz high-pass filter on all mic channels
Mute button on all channels for quick audio management
3-band EQ on mic channels for precise tone shaping
2-band EQ on stereo channels to enhance the warmth of your instruments
AUX & DSP outputs for monitor mixes and external effects
Stereo return with intuitive level control
RCA/Phono playback and recording support
Headphone and control room outputs for complete monitoring
+48V phantom power on mic channels for condenser microphones
