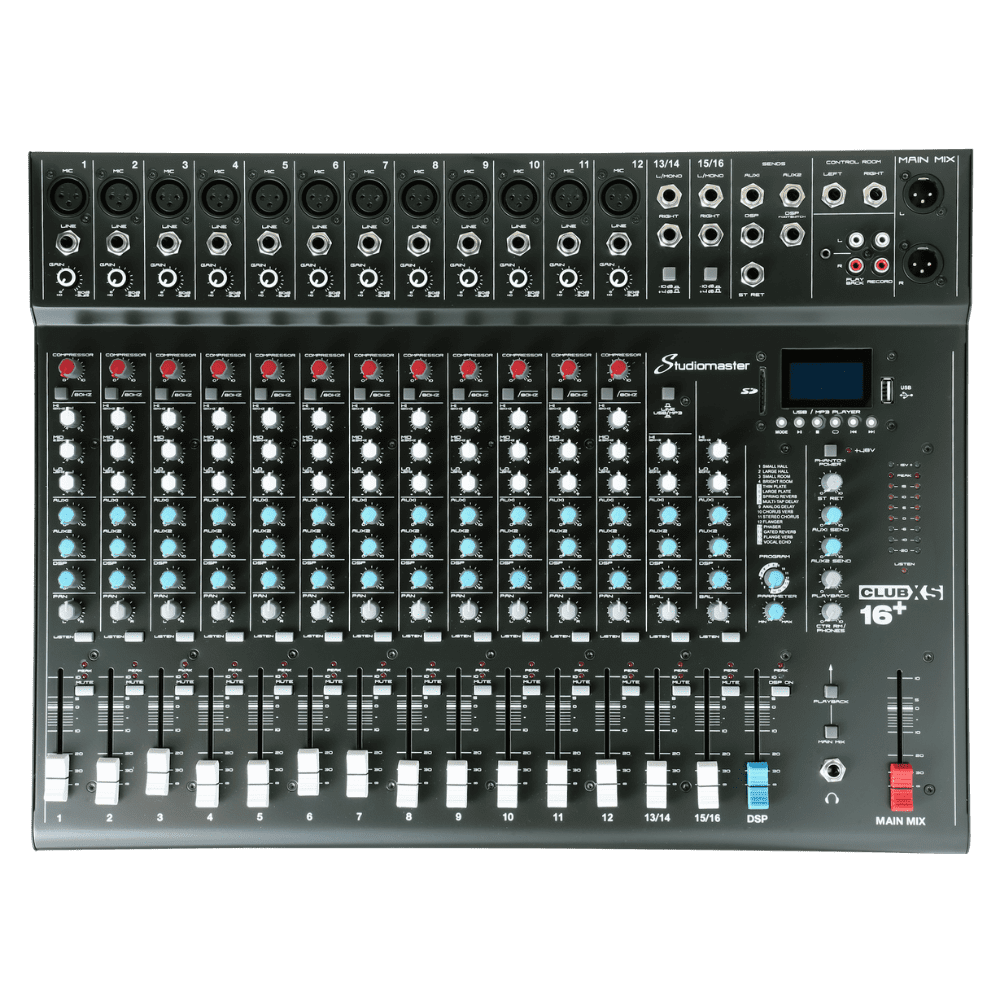

Studiomaster CLUB XS16+ – 16-Input Analog Mixer

The STUDIOMASTER CLUB XS16+ – 16-Input Analog Mixer is a high-performance 16-input analog mixer engineered for musicians, sound engineers, performers, and venues requiring professional audio control with modern connectivity. Equipped with 12 mic inputs, 2 stereo channels, and 2 AUX sends, it delivers outstanding flexibility for bands, event setups, houses of worship, schools, and home studios.

STUDIOMASTER CLUB XS16+ – 16-Input Analog Mixer Each mic channel includes a 3-band EQ, low-cut filter, and gain ranges suited for both vocals and instruments. The built-in 16 DSP effects—including reverbs, delays and chorus—allow performers to enhance their sound instantly. A dedicated foot switch socket enables hands-free effect bypassing, ideal for live performances.

STUDIOMASTER CLUB XS16+ – 16-Input Analog Mixer   offers modern media support with a Bluetooth receiver, USB/SD MP3 playback, and direct USB/SD recording at 128 kbps mono. This makes it perfect for event playback, rehearsals, or capturing live mixes without external equipment.

STUDIOMASTER CLUB XS16+ – 16-Input Analog Mixer Built with low-noise circuitry, -100 dB EIN, <0.1% THD, and an excellent 80 dB signal-to-noise ratio, the mixer ensures clear, distortion-free audio. The rugged, compact chassis is designed for easy transport and professional reliability.

Whether you’re mixing a live show, managing multiple microphones, or recording directly to USB, the Studiomaster CLUB XS16+ delivers premium performance at an affordable price.

KEY FEATURES

Inputs & Channels

• 16 total input channels

• 12 mic inputs with noise-free preamps

• 2 stereo line channels

• 2 AUX sends

• PFL on all channels

Audio Quality

• EIN: -100 dB

• THD: <0.1%

• Frequency response: 10 Hz – 20 kHz (+1/-3 dB)

• S/N ratio: 80 dB

Effects & Processing

• 16 DSP effects

• Foot-switch socket for DSP bypass

• 3-band EQ (High 12kHz / Mid 2.5kHz / Low 45Hz)

• Low-cut filter at 80 Hz

Media & Recording

• Bluetooth audio streaming

• USB/SD MP3 player

• USB/SD recording (128 kbps mono)

Inputs / Outputs

• Balanced output: +26 dB

• Unbalanced output: +20 dB

Power & Build

• • Power supply: 100V–240V AC

  • Dimensions: 385 × 527 × 85 mm
