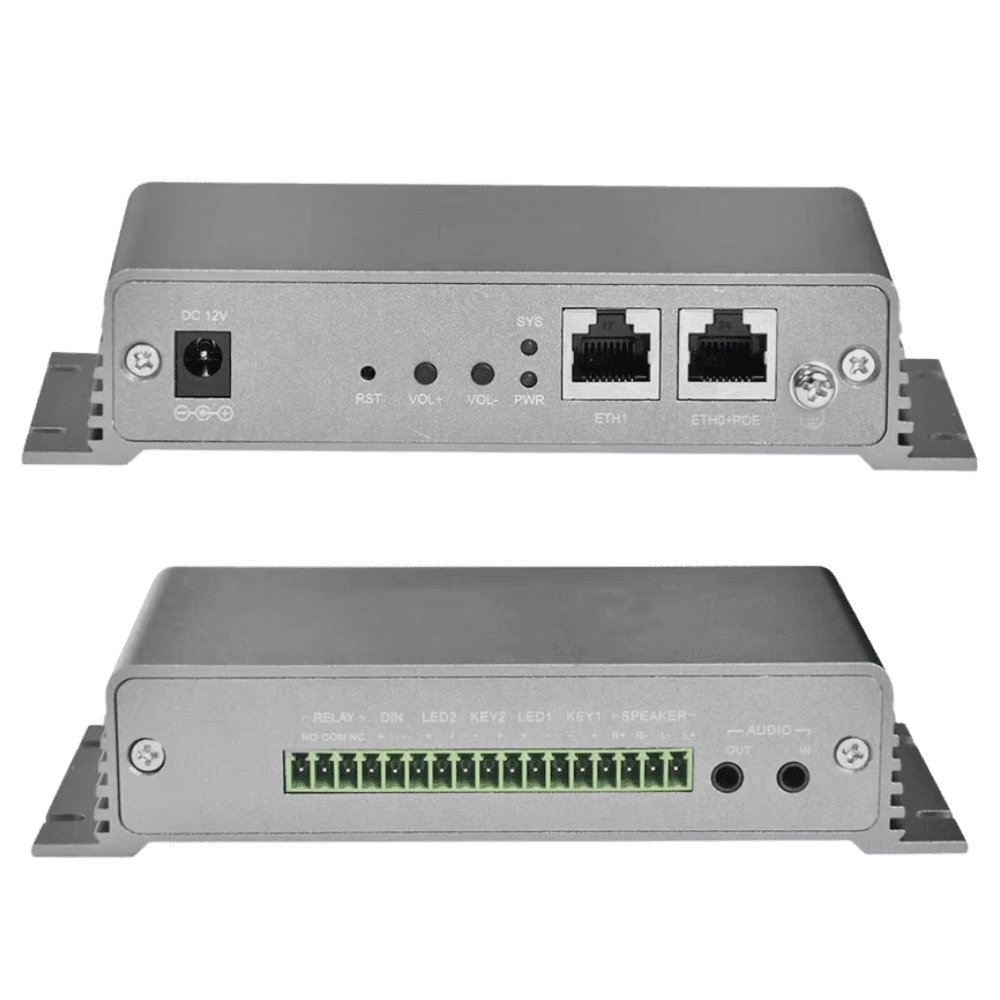

Zycoo X10 SIP Paging Gateway

The Zycoo X10 SIP Paging Gateway is a high-performance, multifunctional IP audio gateway designed for professional paging, intercom, background music, and public safety applications. Supporting standard SIP protocol, built-in amplification, sensor integration, and advanced control features, the X10 is ideal for smart city, industrial, and security environments that require reliable communication and automation.

Compact and powerful, the X10 converts SIP voice streams from an IP PBX or SIP paging system into high-quality analog audio for passive loudspeakers, making it an extremely versatile component for public address and emergency communication.

---

🔹 Built-In 2×10W Amplifier

The X10 includes a dual-channel 10W amplifier (2×10W) that drives passive speakers directly—no external amplifier required.
Supports:

• Stereo output

• High-quality background music

• Long-distance paging

Perfect for retail areas, buildings, transport hubs, and industrial facilities.

---

🔹 High-Definition Stereo Audio

The X10 supports:

• Streaming media playback from ZYCOO IP Audio Center

• Local decoding for superior sound

• HD MP3 audio files

Ensures professional-grade background music and rich audio reproduction.

---

🔹 Two-Way Intercom Capability

Supports:

• Two programmable press-to-talk (PTT) buttons

• External microphone + speaker

• Emergency calling or consultation intercom

Suitable for security desks, help points, gates, or emergency stations.

---

🔹 HD Voice with Wideband Codec

The X10 uses:

• G.722 wideband codec

• Crystal-clear HD voice

• Superior intelligibility for paging and intercom

Ensuring reliable communication even in noisy environments.

---

🔹 Full SIP Compatibility

The X10 integrates seamlessly with:

• ZYCOO IP Audio Center

• Third-party SIP servers

• Any IP PBX system

Supports paging, intercom, SIP calling, and multi-system connectivity with three SIP accounts.

---

🔹 Dry Contact & Door Control

Equipped with:

• Built-in relay for door magnet control

• Support for alarm triggers

• Digital input activation from sensors

• Automated emergency calling

Ideal for security, access control, and IoT automation scenarios.

---

🔹 Automatic Triggering & Control

Supports automation using:

• Sensor input

• DTMF signal

• Call status

Enables:

• Emergency alarms

• Automated paging

• Door release or lock

• Event-triggered announcements

---

🔹 Auto-Provisioning for Large Deployments

ZYCOO IP Audio Center provides:

• Centralized configuration

• Batch deployment

• Remote device monitoring

Reduces installation time for large-scale distributed systems.

---

🔹 Easy Installation with PoE

Supports PoE (IEEE 802.3at) for:

• Single-cable power + data

• Clean installation

• Cost efficiency

Optional external power supply supported as well.

---

🔹 External Audio Source Input

With a 3.5mm AUX input, the X10 can:

• Play audio from mobile phones

• Playback from computers

• Connect MP3 players or media consoles

Perfect for local music or announcements.

---

🔹 Supports Multicast & Peer-to-Peer

The X10 allows:

• Multicast paging

• P2P audio communication

• Server-less operation inside a local network

This ensures system redundancy and high reliability.

---

Key Features

• Built-in 2×10W amplifier

• HD stereo audio playback

• SIP paging & two-way intercom

• G.722 HD audio codec

• Supports 3 SIP accounts

• PoE (IEEE 802.3at)

• Dry contact relay & door control

• Sensor integration

• Auto-provisioning compatible

• AUX input for external audio

• Multicast & P2P support

---

Ideal Applications

• Smart city infrastructure

• Industrial paging systems

• Public safety & SOS intercom points

• School and campus PA systems

• Hospitals & healthcare facilities

• Retail and commercial buildings

• Parking structures and toll areas

• Access control & security rooms

• Transport hubs (rail, bus, airport)
