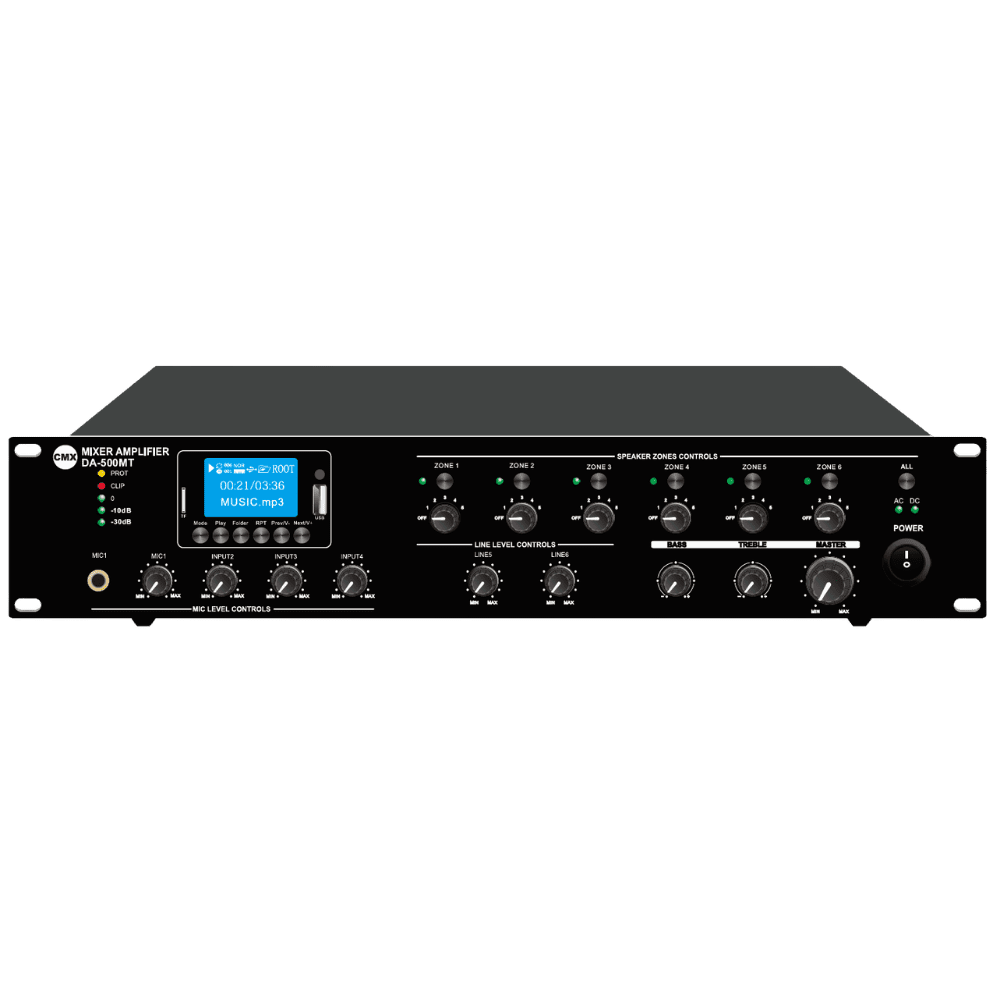

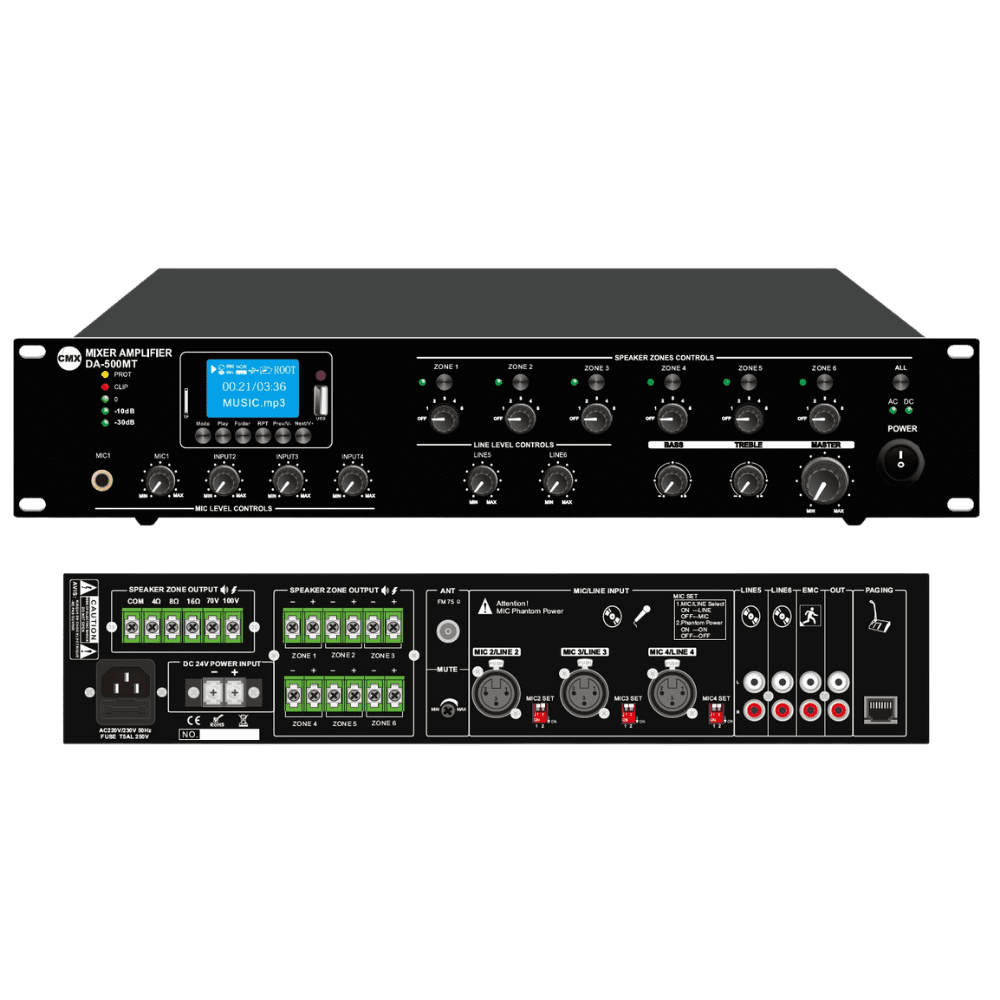

CMX Audio DA-500MT 6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth
The CMX DA-500MT 6 Zone Mixer Amplifier is a powerful all-in-one PA system with built-in MP3, USB, FM tuner, and Bluetooth. Designed for commercial audio applications, it supports 6 independent speaker zones with individual volume control, multiple mic and line inputs, and advanced protection features—ideal for schools, hotels, banks, and shopping centers.
Applications
- Schools & Colleges
- Banks & Offices
- Hotels & Restaurants
- Mosques & Religious Places
- Shopping Malls & Supermarkets
- Industrial & Commercial Buildings
₹47,530.00 ₹60,197.00 Excluding Tax
Get Latest Price
Enquiry Now
The CMX Audio DA-500MT 6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth is a professional-grade public address solution designed for reliable and flexible audio distribution across multiple zones. This all-in-one system integrates a media player, pre-amplifier, and power amplifier into a compact 19” rack-mountable unit (2U height), making it perfect for commercial installations.
CMX Audio DA-500MT 6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth Equipped with MP3/USB/SD playback, FM tuner, and Bluetooth connectivity, the amplifier allows seamless audio streaming and playback from multiple sources. It supports 6 independent speaker zones, each with individual volume control, ensuring customized audio management for different areas.
CMX Audio DA-500MT 6 Zone Mixer Amplifier with ATT/Mp3/USB/FM/Bluetooth includes multiple microphone and line inputs such as Mic1 (6.3mm jack with VOX priority) and Mic/Line inputs (XLR with phantom power), along with RCA line inputs and EMC emergency input for priority paging.
Designed with safety and durability in mind, the amplifier features advanced protection mechanisms including overload, short circuit, clip, and high-temperature protection.
Ideal for applications like schools, supermarkets, banks, mosques, hotels, restaurants, and shopping centers, this amplifier ensures consistent and high-quality audio performance.
Key Features
- 6 Zone commercial PA mixer amplifier
- Built-in MP3, USB, SD, FM tuner & Bluetooth
- 6 independent speaker zones with volume control
- 100V line output for commercial speaker systems
- Mic1 VOX priority function (except EMC input)
- XLR mic/line inputs with phantom power
- Remote paging microphone support (up to 300m)
- Front panel control for mic, line, bass, treble & master volume
- LED indicators for power, protection, signal level & zones
- Rack mount design (2U height)
- Dual power supply: 230V AC & 24V DC
| Brand |
|---|
Model: DA-500MT
Type: 6 Zone Mixer Amplifier with MP3/USB/FM/Bluetooth
Power Output Options
500W
Speaker Output
6 Zone 100V outputs
Single zone: 100V / 70V / 4–16 Ohm
Input Sensitivity
Mic1–4: 2.5mV
Mic1: 6.3mm jack
Mic/Line 2–4: Balanced XLR
Line Inputs: 250mV (RCA)
EMC Input: 250mV (RCA)
Audio Performance
Frequency Response: 80Hz – 16kHz
THD: < 0.1% Signal-to-Noise Ratio: > 70dB
Protection
Overload protection
Short circuit protection
Clip protection
High temperature protection
Power Supply
230V AC / 24V DC
50–60Hz
Power Consumption
500W
Physical Details
Dimensions: 484 × 405 × 88 mm
Weight: 10.4 kg
