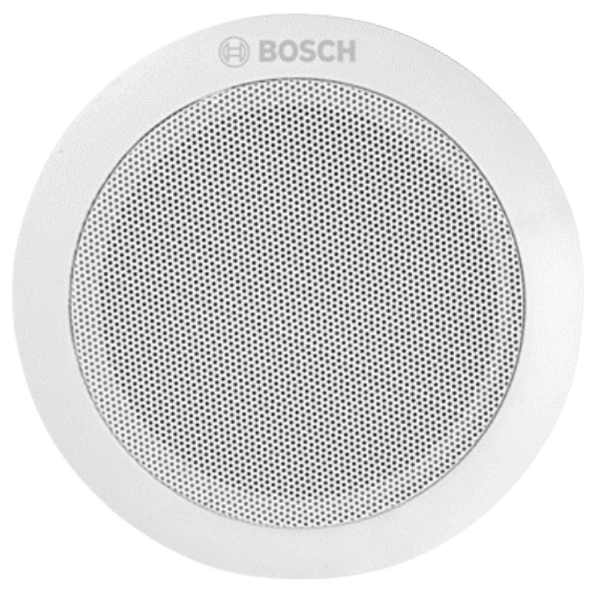

BOSCH LC3-UM06-IN – 6W Compact Metal Ceiling Speaker
Bosch 6W Compact Metal Ceiling Speaker LC3-UM06-IN offers a combination of performance and convenience, making it a great choice for various commercial audio applications. Here’s a summary of its key features:
Key Features:
- Power Output: 6 W, suitable for both speech and music reproduction.
- Lightweight Construction: The speaker is made with a lightweight ABS body and a metallic grille, which makes it easy to handle and install.
- Versatile Sound Quality: Excellent for clear, high-quality sound in both speech and music environments.
- Attractive Signal-White Color: The sleek and neutral signal-white finish blends seamlessly with most ceiling installations.
Bosch 6W Compact Metal Ceiling Speaker LC3-UM06-IN is designed for quick and easy installation, with a spring-loaded mounting mechanism, and provides a reliable audio solution for spaces such as offices, meeting rooms, or retail environments.
₹767.00 ₹949.00 Excluding Tax
Get Latest Price
Enquiry Now
BOSCH LC3-UM06-IN – 6W Compact Metal Ceiling Speaker is a general purpose 6 W ceiling loudspeaker, suitable for speech as well as music reproduction, it has a light weight ABS body with a metallic grille, finished with an attractive signal-white color.
The ceiling speaker unit is integrated with a metallic grille and an ABS baffle, resulting in a light weight construction and is finished in an attractive signal white color.

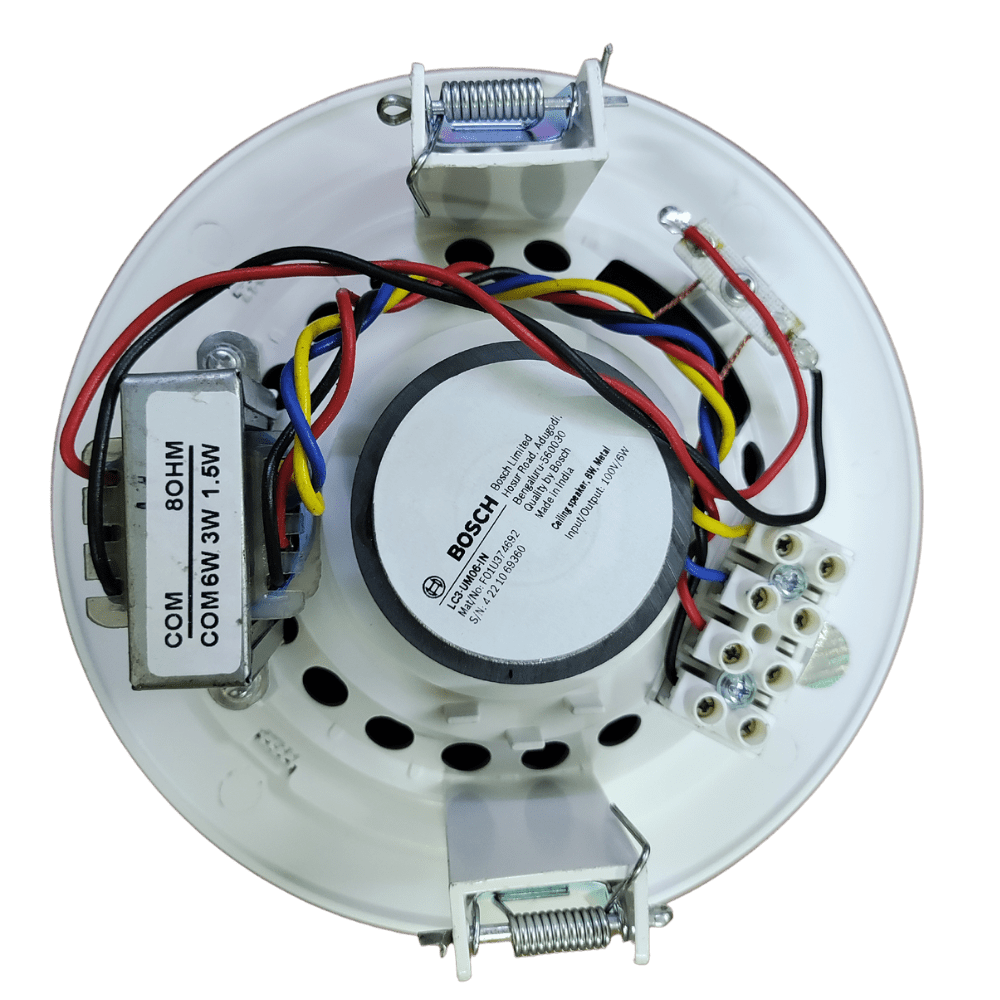

Ceiling Speaker has good sensitivity and a wide frequency range, which makes it suitable for speech and music reproduction. It has an in-built line matching transformer, which supports a 100 V line output from the amplifier. The transformer has 3-tappings – full power, half power and quarter power, which helps the user to select the desired output levels based on their customized requirements.
The loudspeaker is equipped with spring mounting mechanism, which helps in quick installation of the speaker on the ceiling
Compact Metal Ceiling Speaker unit has a diameter of 170 mm. A cutout of 139 mm diameter needs to be carved out in the ceiling for installation.
The loudspeaker can be installed by pulling up the mounting clamps and inserting the loudspeaker into the cutout in the ceiling.
LC3-UM06-IN
| Brand |
|---|
</strong> Technical specifications
Rated power6 W
Storage Temperature-40 °C to +70 °C
width=”299″>Relative humidity
95%
| Input Voltage | 100 V | ||||||||||||||
| SPL (at 6 W/1 W, 1 kHz)) | 92/85 dB | ||||||||||||||
| Effective frequency range (-10 dB) | 75 Hz to 18 kHz | =”299″>Opening angle at 1 kHz/4 kHz (-6 dB) | >180°/65° | Rated impedance | 1667 Ohm | Connector | 4-pole screw connector | Dimensions (DxH) | 170 mm x 70 mm | Weight | 540 g | Color | Signal-white (RAL 9003) | Operating temperature | -5 °C to +55 °C |
