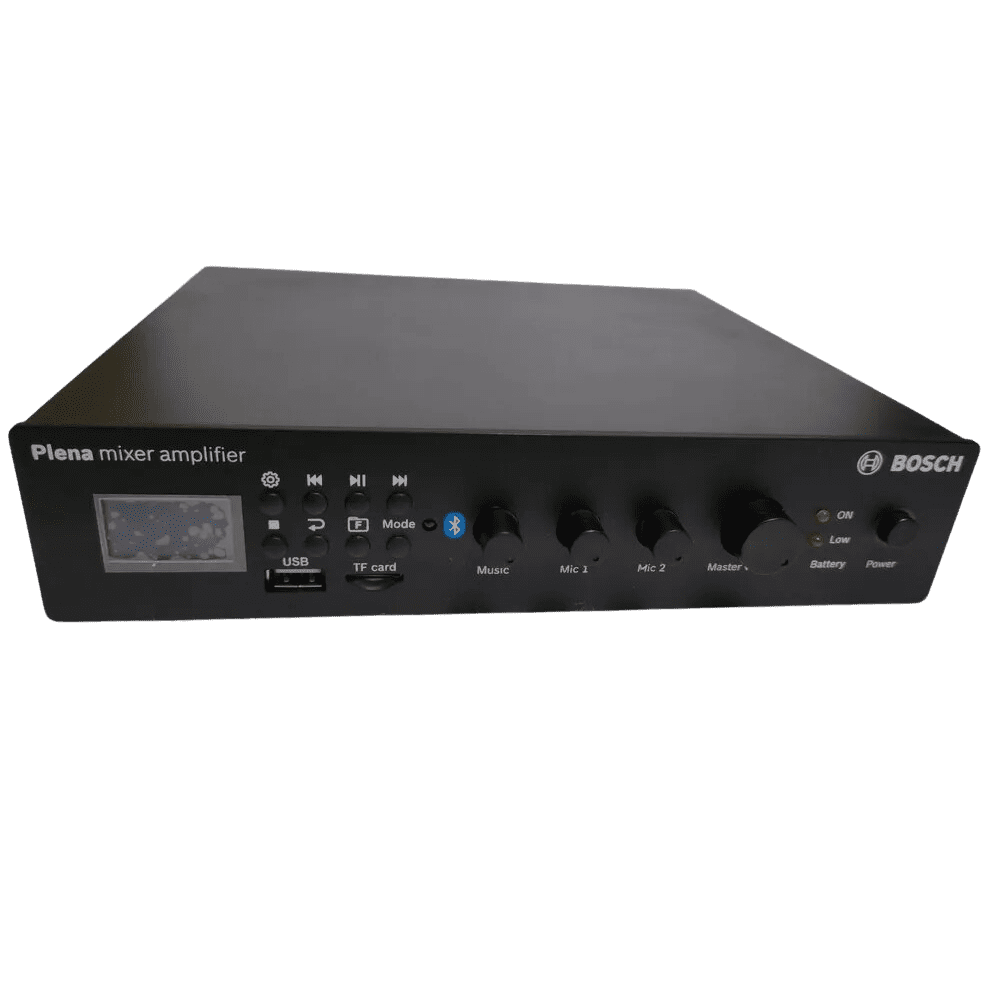

PLE-1MP30-IN Mixer Amplifier Portable 30W is a professional public address unit with state‑of‑the‑art features, which is built on class-D platform.
The amplifier is easy to use, taking the complexity away from the user and putting it where it belongs, inside the equipment. Providing a crisp call or clear music is as easy as turning on a radio.
Offering the essentials of public address in an affordable package.
System overview
PLE-1MP30-IN Mixer Amplifier Portable 30W is designed to meet the requirements of the people who are on the go.
It has an inbuilt music player which can support audio streaming through Bluetooth or USB/TF card and also supports FM. An IR remote control is supplied with the unit to control the music source.
The amplifier can be powered either with a 12/24V battery source or via a power adapter, which is supplied with the unit.
It is equipped with two microphone inputs, microphone input-2 comes with a phantom power supply option. It also has an AUX input option for connecting external audio sources.
It also supports ducking, by which the background music automatically fades away when there is a live announcement from any of the microphone inputs and is automatically restored after the announcement, avoiding the manual intervention of the operator. The ducking option is variable and it can be switched off based on the user requirements.
The processor in the amplifier monitors the speaker output line. In case there is a short circuit or overload in the speaker output line, the amplifier isolates the amplification circuit and enters into self-protection mode and the user is informed with a fault indication. The amplifier also monitors the battery status. If the connected battery output goes low, the amplifier will detect this and the user will be informed with a battery low indication: If the battery output goes below the threshold value, the amplifier will isolate the output and protect the battery from draining any further. The rear of the amplifier is equipped with a replaceable DC fuse for further protection.
Functions
Power
The mixer amplifier comes with 30 watt output power. This power is directly available on a low impedance connection for a 4 ohm speaker load. The amplifier has a ducking feature, which will suppress the background music whenever there is a live announcement from any of the microphone inputs and the ducking levels can be varied based on the requirements from 0 dB, -6 dB to -24 dB, and MUTE (off).
The mixer amplifier can be connected to a higher capacity of power amplifiers with the help of line output.
The amplifier is designed to suit application areas like retail outlets, small cafes/restaurants, election rallies, promotion campaigns, yoga centers and gyms, hence being the right choice for small and medium installations.
