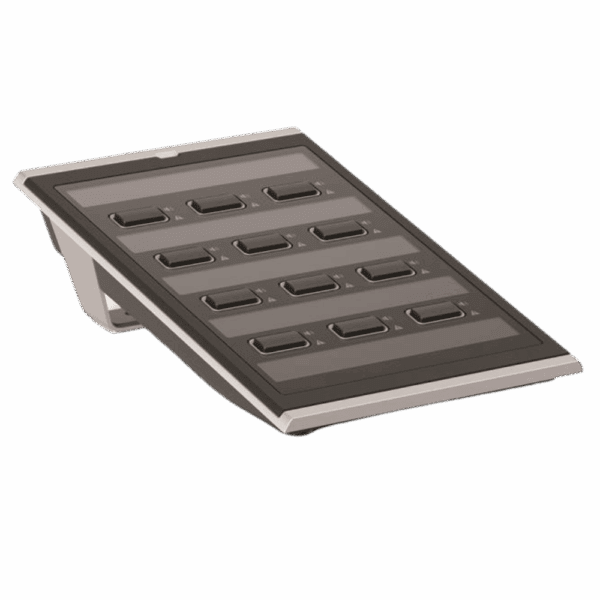

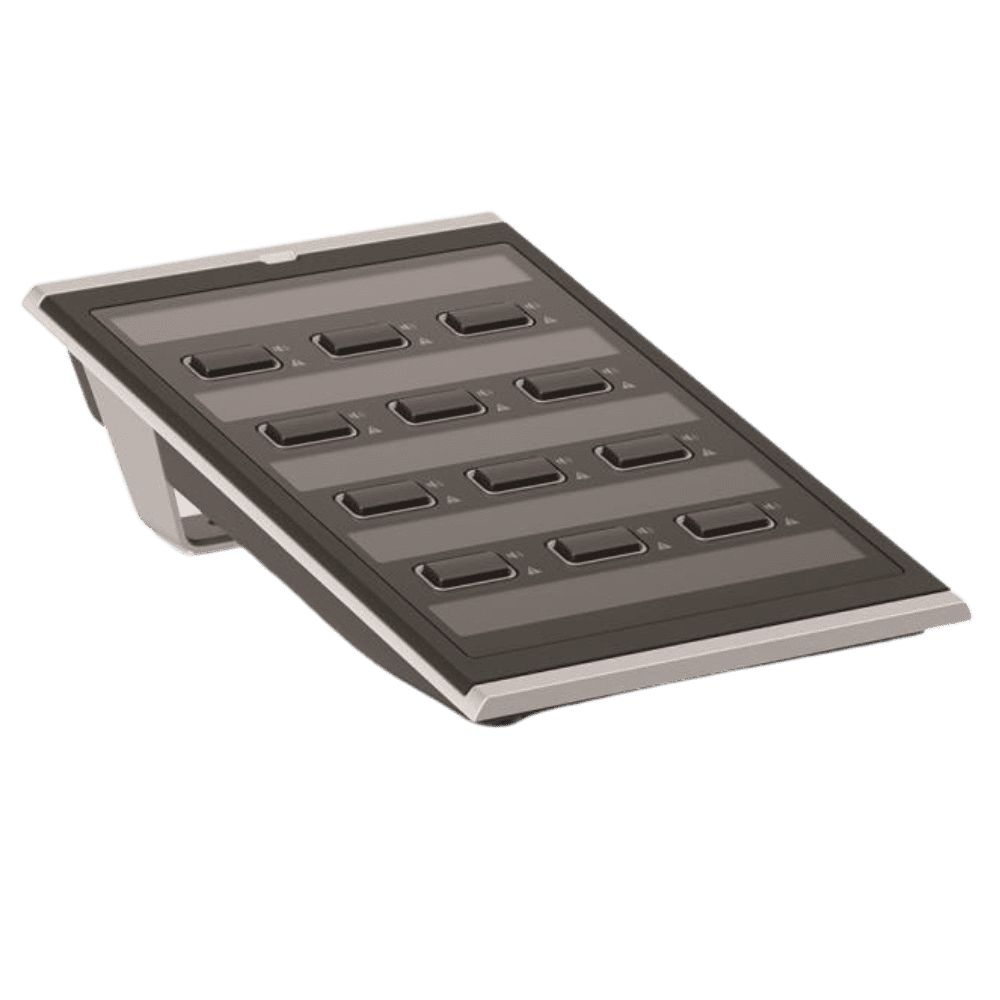

BOSCH PRAESENSA PRA-CSE Call station extension

BOSCH PRAESENSA PRA-CSE Call station extension is used in combination with PRAESENSA call stations to make selections for business and alarm calls. One device adds twelve configurable buttons with light ring. Each button has two additional indicators for user feedback, related to the configured functionality of that button. Up to four PRA-CSE can be connected to one call station. Using extension keypads for zone selection allows all zones to be accessible and visible at the same time. It shows a complete status overview of selected and occupied zones or zones with faults. The extension keypad is delivered with a metal coupling plate and patch cable to link it to a call
station or other extension keypad. The front cover can be easily removed to insert labels with up to three lines of text per button and a header section on top.

Functions
BOSCH PRAESENSA PRA-CSE Call station extension Business operation
• Connection of up to four PRA-CSE extensions, each with twelve buttons. The buttons can be configured for various functions, but they are especially useful for zone selection, giving a clear overview of
accessible zones and the LED indicators for each button show the status of the respective zone (like being selected, occupied or at fault).
Emergency operation
• The call station extension complies to the standards for voice alarm applications, when the firemen’s user interface is configured for the call station and at least one PRA-CSE is connected to it.
• All critical alarm functions are accessible via buttons for operators wearing gloves.
• All indicators of the extension take part in the indicator test function of the connected call station.
Connection
• Reliable, locked, single cable interconnection between call station and extension and between extensions.
• Robust metal coupling plate.
• All extensions are automatically addressed, from left to right.
• All assembling can be done with one standard Torx TX10 screwdriver.
Labeling
• Removable front cover for easy labeling with space for three lines of text per button
Button cap
• Three button caps are included to prevent unintended activation of critical buttons.
