TOA HX-5B 2Way Array Compact Speaker

TOA HX-5B 2Way Array Compact Speaker

(3 customer reviews)
TOA
Availability:

Available on backorder
Add to wishlist
Compare
  • High power handling
  • Parallel connectors – dual speakon and screw terminal
  • Ball impact proof

Compare

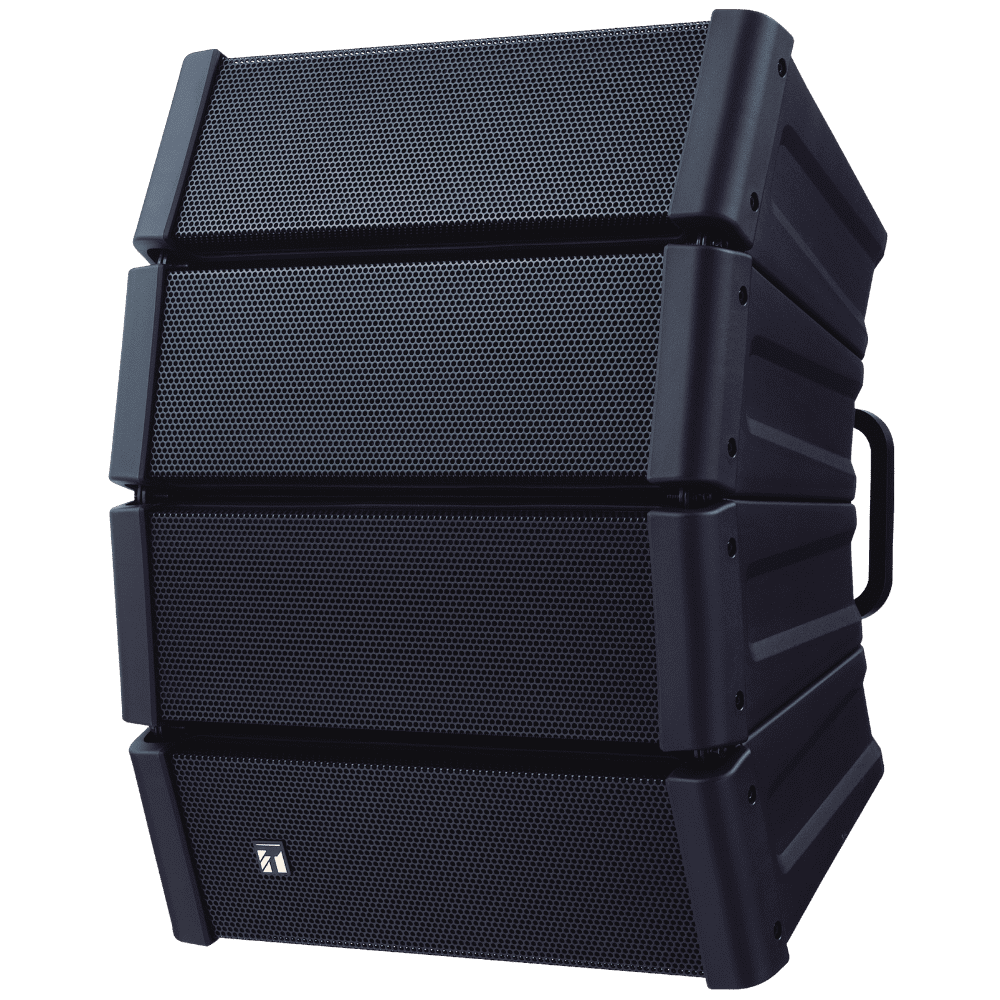

TOA HX-5B 2Way Array Compact Speaker is a 2-way compact speaker system that permits both constant directivity control over a wide frequency range and changes in directivity. It is ideal for reproducing clear sound in spaces with long reverberation times or high background noises. The HX-5B is designed for indoor use.

Category: Tag:

TOA HX-5B

Brand

Enclosure Bass-reflex type
Power Handling Capacity Continuous pink noise: 200 W, Continuous program: 600 W
Rated Impedance 8 Ω
Sensitivity (1 W, 1 m) 96 dB (60゜ mode), 97 dB (45゜ mode), 98 dB (30゜ mode), 99 dB (15゜ mode)
Frequency Response 70 Hz – 20 kHz (-10 dB) (60%%d mode), 75 Hz – 20 kHz (-10 dB) (45%%d mode),
80 Hz – 20 kHz (-10 dB) (30%%d mode), 85 Hz – 20 kHz (-10 dB) (15%%d mode)
Crossover Frequency 4 kHz
Directivity Angle Horizontal: 100゜ (2 kHz or more)
Vertical: 60゜ (800 Hz or more), 45゜ (1.2 kHz or more), 30゜ (1.6 kHz or more),
15゜ (3.2 kHz or more) variable
Speaker Component Low frequency: 12 cm cone-type × 4, High frequency: Balanced dome-type × 12
Input Terminal Speakon NL4MP × 2 and M4 screw terminal
Finish Enclosure: Polypropylene, black
Punched net: Surface-treated steel plate, black
Dimensions 408 (W) × 546 (H) × 342 (D) mm
Weight 16 kg
Accessory Hanging bracket …2, Hex. wrench …1
Option Matching transformer: MT-200
Speaker mounting bracket: HY-PF1B, HY-CW1B, HY-WM1B, HY-WM2B, HY-CN1B
Speaker stand adapter: HY-ST1



Based on 3 reviews

4.3 overall
1
2
0
0
0

Add a review

  1. Jose X Granados –

    Great product. Works great in our Church.

    Jose X Granados –

  2. kenny –

    Amazing Product. Using several months. No issues ..

    kenny –

  3. Gowri –

    TOA HX-5B 2Way Array Compact Speaker . Very good

    Gowri –
